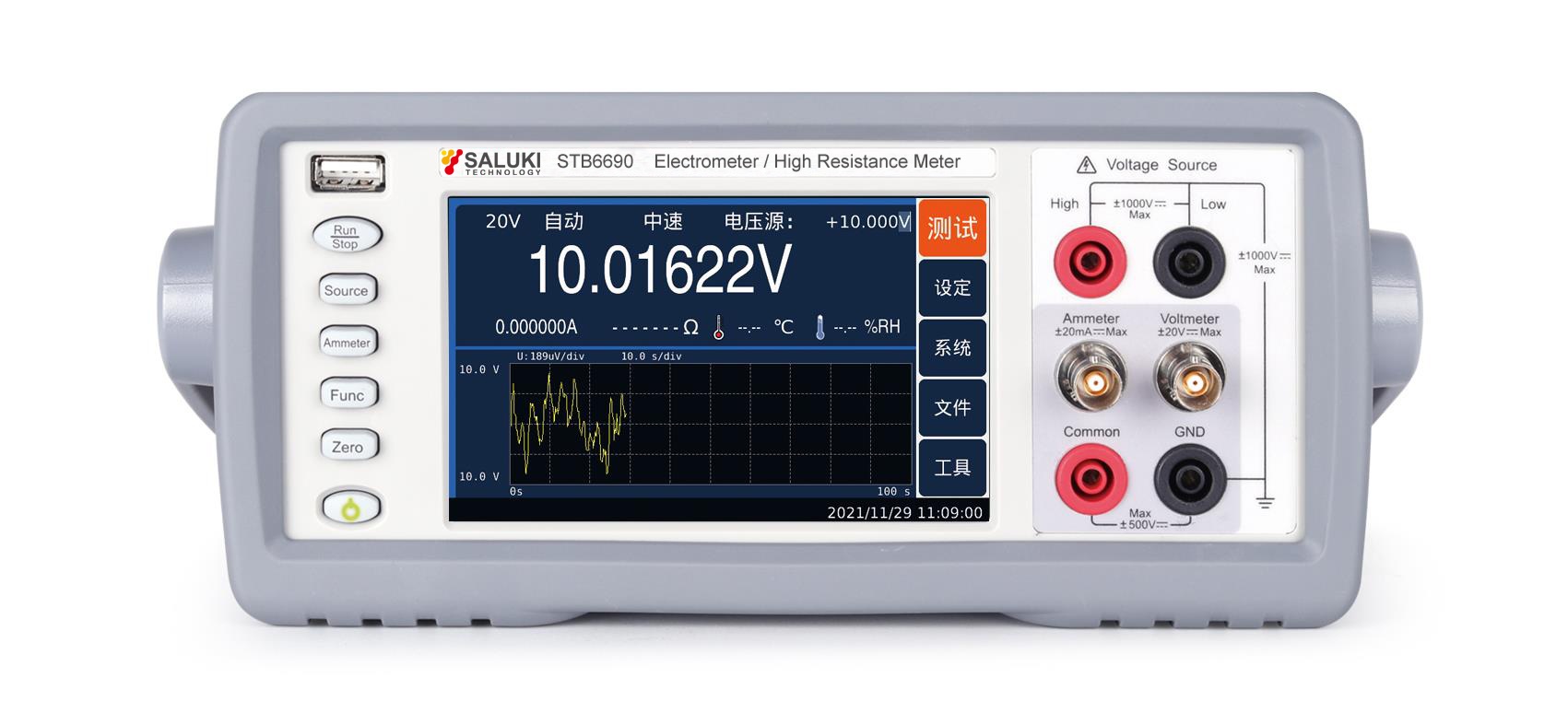

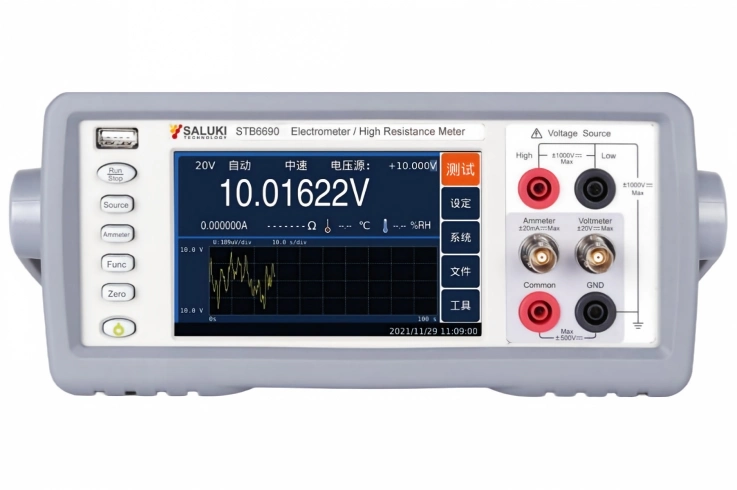

STB6690 Series fA meter/pA meter/Electrometer/High Resistance Meter

Overview Specifications Ordering Resources

STB6690 series flight ammeter/picoammeter/electrometer/high resistance meter provides industry leading measurement functions. With a minimum current resolution of 0.1fA (10-16A), the fee-ammeter/electrometer can meet the requirements of weak current measurement in most scenarios. The built-in 1,000 V voltage source supports measuring resistance up to 10 PΩ (1016Ω).

STB6690 series provides four models, users can flexibly choose appropriate instruments according to the actual testing requirements.

** Standard Lead Time: within 4 weeks **

Key Features

6½-digit measurement resolution

Four measurement modes: high resistance meter, voltmeter, ammeter, electrometer independent current and voltage measurement

Built-in voltage source: ±1000V, resolution: 700μV

Current range: 2pA-20mA, current resolution up to 1fA (10-15A), the internal resistance voltage drops in the lowest current range <20μV

The measurement resistance is as high as 1PΩ (1015Ω), and the charge measurement is as low as 2nC. The input impedance is >200TΩ

Support voltage measurement up to 20V, temperature and humidity measurement

Time domain view, capture transient signal effects and select specified measurement data to support data recording

With dedicated shielding test box

Applications:
Material Characterization
Semiconductors, nanomaterials, polymer materials, dielectric materials, electrochemical materials, ferroelectric materials, graphene, ceramics, biomaterials, rubber, thin films, metals, organic materials, etc.
Leakage Current and Insulation Resistance Testing of Electronic Components
Capacitors, resistors, diodes, transistors, sensors, TFTs, CNTs, optoelectronic devices, nanodevices, solar cells, switches, relays, etc.
Electronic/Non-Electronic Systems
Ion beams, electron beams, sensing systems, particle measurement, embedded precision instrumentation, etc.
I-V Characteristic Measurement of Third-Generation Semiconductor Materials and Devices
Volume Resistivity / Surface Resistivity Measurement

Measurement resolution	6½ Digit
Current measurement	1fA – 20mA/0.01pA – 20mA/0.1fA – 20mA/0.01pA – 20mA
Minimum range	20pA/2nA/20pA/2nA
Resistance measurement	10PΩ/10TΩ
Voltage measurement	1μV – 20V/1μV – 20V
Input resistance	>200TΩ
Charge measurement	1fC – 2μC
Power source	±1000V
Minimum resolution	700μV

Main Machine

Module No.	Item	Description
STB6690	fA meter/ Electrometer/ High Resistance Meter	Current Range: 0.1fA-20mA; Resistance Range: 10PΩ; Voltage Range: 1uV-20V; Electric Charge Range: 1fC-2uC; Built in Voltage Source +/-1000V; Temperature measurement; Humidity measurement.
STB6690A	pA meter/ Insulation Resistance Meter	Current Range: 0.01pA-20mA; Resistance Range: 10TΩ; Voltage Range: 1uV-20V; Built in Voltage Source +/-1000V; Temperature measurement; Humidity measurement.
STB6691	fA meter	Current Range: 0.1fA-20mA
STB6691A	pA meter	Current Range: 0.01pA-20mA

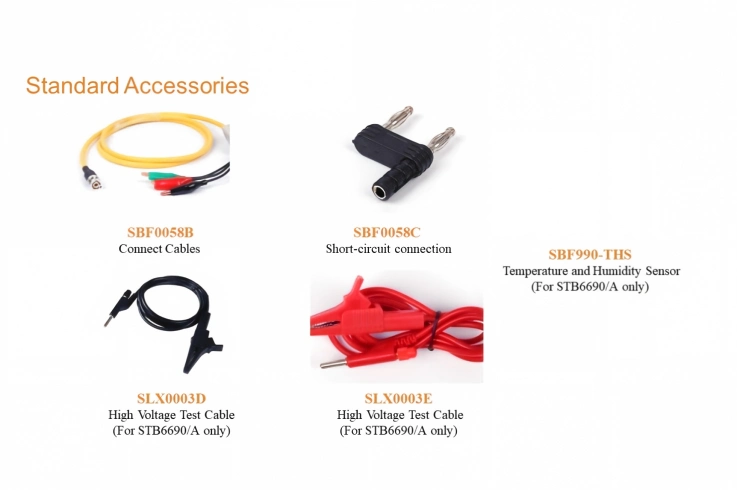

Options

Module No.	Item	Description
SBF0058B	Connect cables	/
SBF0058E	Φ4 lantern marker	/

Document

STB6690 Series fA meter/pA meter/Electrometer/High Resistance Meter Datasheet
