STA999X Series Precision source/Measure unit

Overview Specifications Ordering Resources

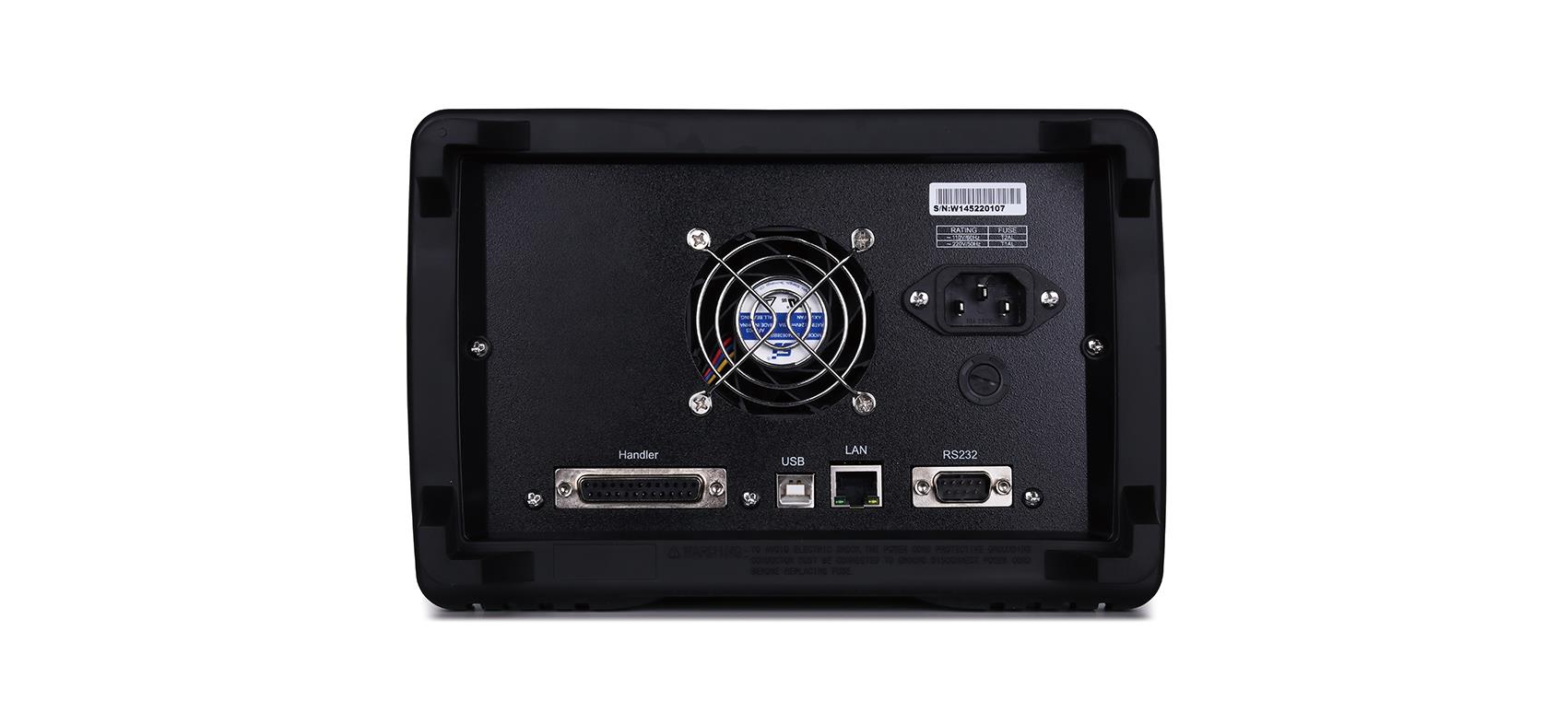

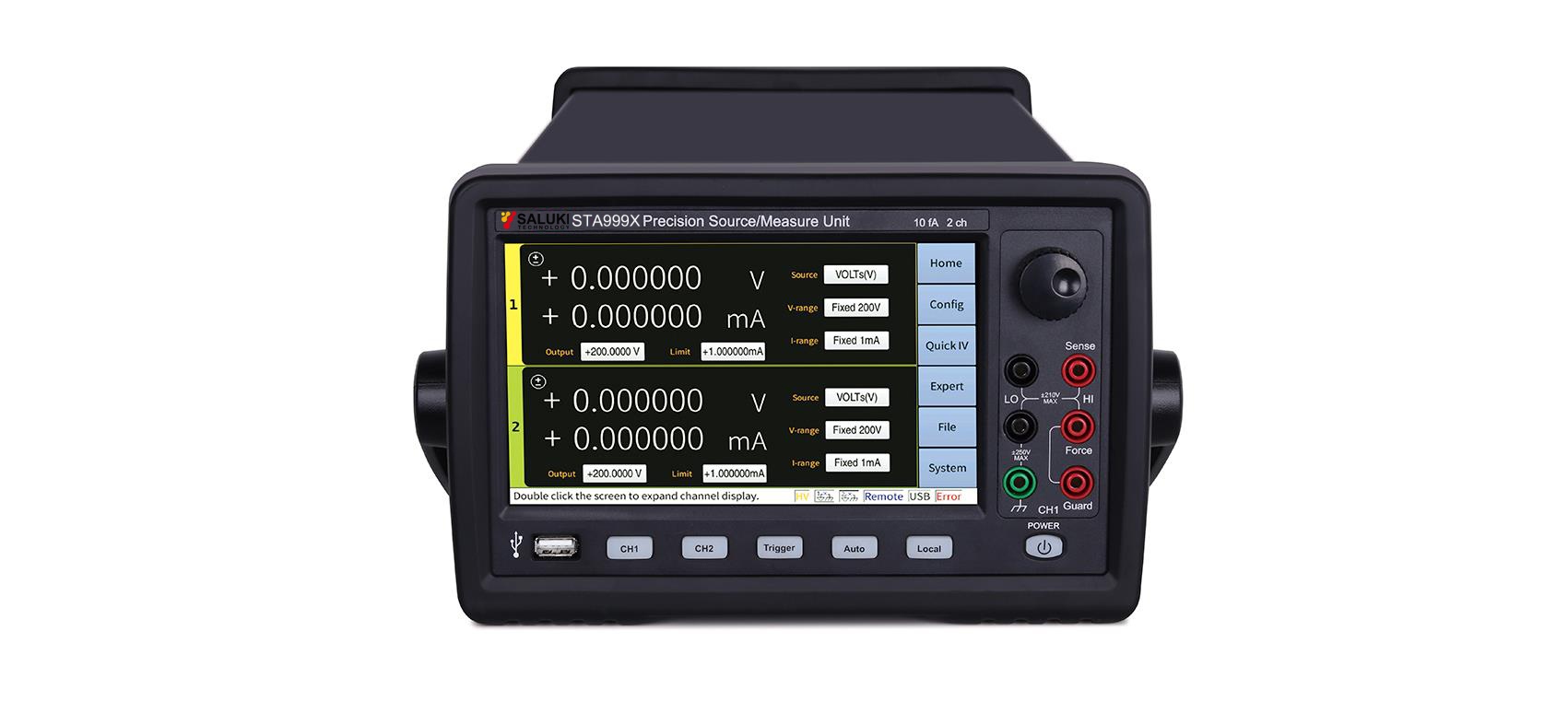

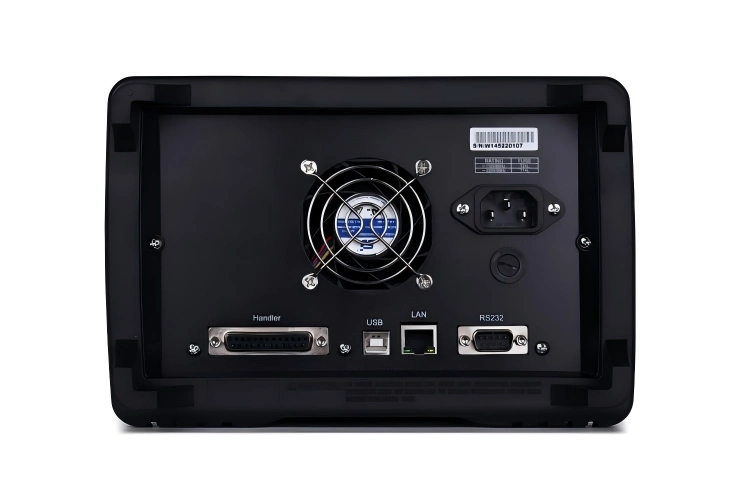

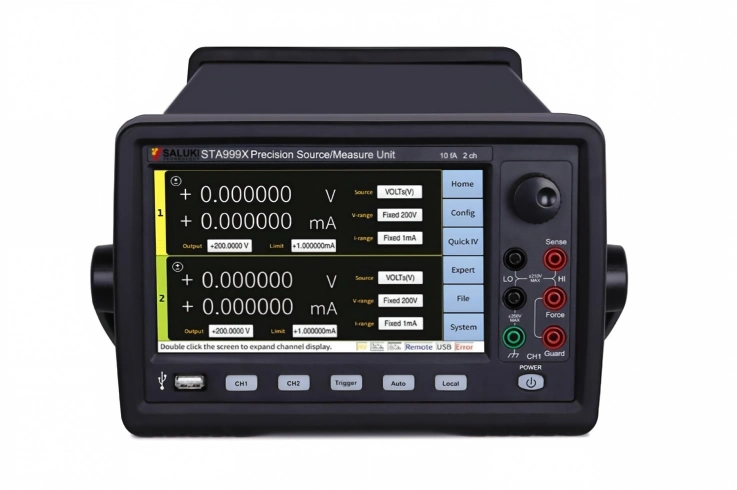

STA9991/STA9992 series precision source/measure units can output and measure voltage and current at the same time. The instrument integrates the functions of current source, voltage source, voltmeter and ammeter, and each function can be switched arbitrarily.

STA9991/STA9992 series precision source/measure units can output up to ±210V DC voltage, ±3A DC current and ±10.5A pulse current, minimum 10fA/100nV power supply and measurement resolution, support high-speed sampling, and can generate arbitrary waveforms.

** Standard Lead Time: within 4 weeks **

Key Features

Linux operating system

Four-quadrant precision power output and measurement

Single/dual channel output and measurement

Up to ±210V DC voltage, ±3A DC current/±10.5A pulse

10fA/100nV minimum measurement resolution (6 1/2 digits)

10fA/100nV minimum supply resolution (6 1/2 digits)

Up to 1,000,000 dots/sec sampling rate

Arbitrary waveform generation

Direct generation of I/V curves of diodes, triodes, MOS tubes and IGBTs

A. Four-Quadrant Output
B. Multiple Operating Modes
C. Static Characteristic Testing of Semiconductor Components
The STA999X series of precision Source/Measure Units (SMUs) requires no host computer software; users can directly configure settings via the instrument’s interface to generate I-V characteristic curves for semiconductor components—such as diodes, bipolar transistors, MOSFETs, and IGBTs. Furthermore, the units allow for the direct recall of a library of common device profiles, enabling rapid test completion.
■ Semiconductor, Discrete, and Passive Component Testing
Diodes, Laser Diodes, LEDs
Photodetectors, Sensors
FETs, Bipolar Transistors
ICs (ICs, RFICs, MMICs)
Resistors, Variable Resistors, Thermistors, Switches
■ Precision Electronics and Green Energy Device Testing
Photovoltaic Cells
Power Semiconductors
Batteries
Automotive
Medical Instruments
Power and DC Bias Sources for Board-Level Testing
■ Research and Education
New Materials Research
Nanodevice Characterization
Giant Magnetoresistance (GMR)
Organic Devices
Any Precision I/V Sourcing or Measurement Application

Voltage Range	200mV-200V
Channel	STA9991: 1 STA9992: 2
Max Output	Voltage: 210V Current: DC: ±3.03A Impulse: ±10.5A
Power Source	Max Digits: 6; 1/2 Min Resolution: Voltage: 100nV Current: 10fA
Power Supply	90 V to 264 V, 47Hz to 63Hz, 250 VA maximum

Main Machine

Module No.	Item	Description
STA9991	Precision source/Measure unit	Source Measurement Unit; DC Voltage/Current: +/-210V, +/-3A; Impulse Source: +/- 10.5A; Channel 1; 6.5 Digit
STA9992	Precision source/Measure unit	Source Measurement Unit; DC Voltage/Current: +/-210V, +/-3A; Impulse Source: +/- 10.5A; Channel 2; 6.5 Digit

Document

STA999X Series Precision source/Measure unit Datasheet
