STA9952 Series Digit Multimeter

Overview Specifications Ordering Resources

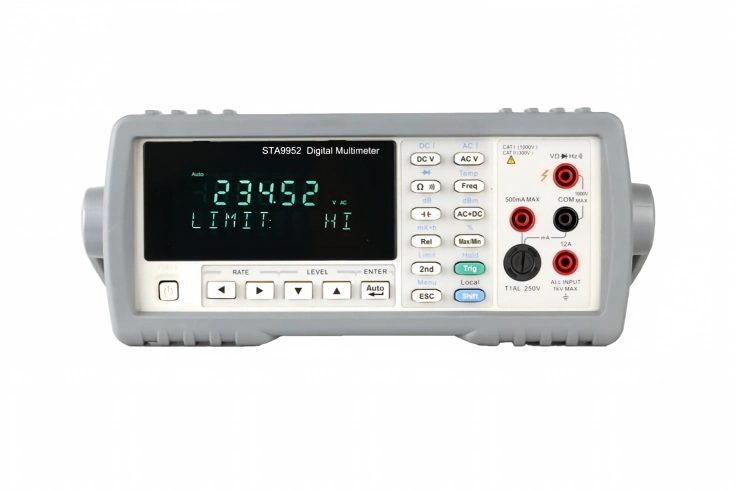

STA9952 5 1/2-digit multimeter is a multi-functional, cost-effective voltage /current /resistance /capacitance meter. It provides Max. 120000 count, Max. sampling rate 200 times/s, 0.012% DCV accuracy, which is the optimal selection for users.

STA9952 provides high brightness VFD Dual display, which can display ACV/DCV or DCI, ACV/ACI and frequency .etc to improve the test efficiency and, clearer display.

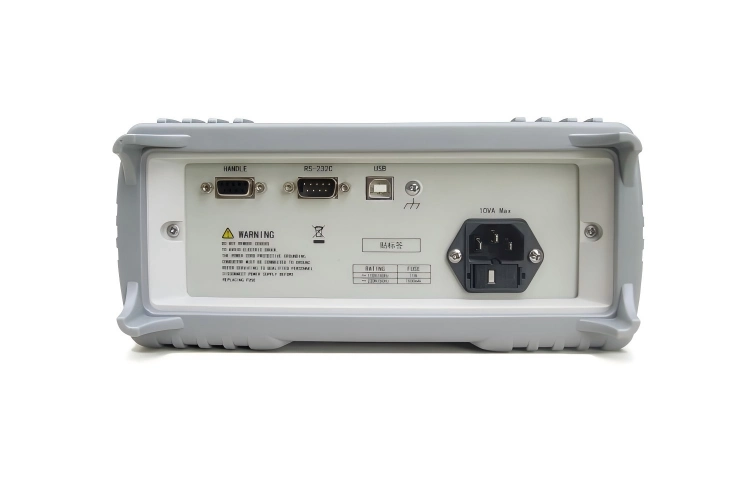

STA9952 is configured with USB interface, and also communication software is provided for PC communication, data analysis, statistics, building system. STA9952 accepts SCPI command to be compatible with communication software. Also, Handler interface is provided to receive the external trigger and output sorting signal for production line.

** Standard Lead Time: within 4 weeks **

Key Features

120000 count display

High brightness VFD dual-display

True-rms AC voltage and current test

Multiple mathematics operation function DCV/ACV/DCI/ACI/AC+DC/Ω/ CAP/ Temperature/ Frequency/ Diode/Continuity and dB/dBm

Other parameters in current test signal displayed in second display

Max. ADC sampling rate can be 200 times/s

DCV test accuracy up to 0.012%,resolution up to1μV

Relative mode(REL)to eliminate remaining reading

Data statistics function Max/Min, Max. value, Min. value, Average value and number of statistics

Standard USB interface, provide convenient system communication function

Module	STA9952
Test Parameter	DCV, ACV, DCI, ACI, DCR, CP, FREQ, CONT, DIODE, TEMP
Mathematics Function	%, dB, dBm, REL, mX+b
Communication Interface	SCPI command support for RS232 and USB interface
External Trigger	Handle interface (external trigger and output sorting signal)
Trigger Mode	INT/BUS/EXIT
	(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description

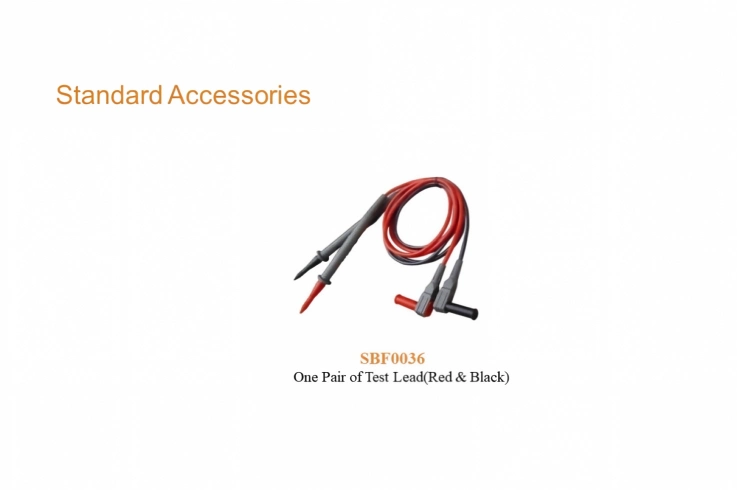

STA9952	Digit Multimeter	120000 count display, DCV range: 100mV-1000V, including multimeter test cable

Options

Module No.	Item	Description
SBF0039	Four Terminal Test Line	/

Document

STA9952 Series Digit Multimeter Datasheet
