Saluki SPS8 series power supply is high performance single-output programmable DC power supply with communication interface, possessing the character of fast rise speed (the rise time of SPS811 power supply can be less than 10ms). The combination of bench-top and system features in these power supply provides versatile solutions for your design and test requirements. The SPS8 series can not only be programmed through the keyboard on the panel, but also be functioned as voltmeter and milliohm meter, which will bring great convenience to the users. As a regeneration product of ordinary programmable power supply, SPS8 series power supply is more cost-effective.

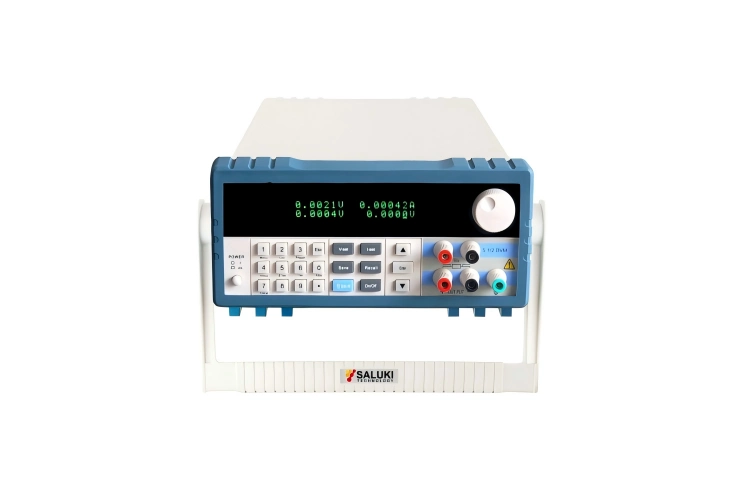

SPS81X Series Programmable DC Power Supply
Key Features
Max. output power 150W
Voltage range: 0 to 30/75/150V
Current range: 0 to 1/2/5A
Low ripple and low noise
High resolution and accuracy (0.1mV/0.01mA, SPS831 reaches up to 0.001mA)
Built-in high-accuracy 5 1/2 voltmeter and milliohmmeter
Supporting high-accuracy and dynamic programming output
High-luminance VFD screen with two lines& four channels display
Intelligent fan system fan will be automatically initiated according to the temperature
Supporting remote voltage compensation and multidata storage
Supporting external trigger input and output
Power-on-self-test, software calibration and standard rack mount
Using standard SCPI protocol, communication mode: RS232/RS485/USB
| Module | SPS811, SPS812, SPS813, SPS831 |
| Output Rating | SPS811: voltage 0-30V, current 0-5A, power 150W SPS812: voltage 0-75V, current 0-2A, power 150W SPS813: voltage 0-150V, current 0-1A, power 150W SPS831: voltage 0-30V, current 0-1A, power 30W |
| Load Regulation | • Voltage: <0.01%+0.5mV • Current: <0.01%+0.1mA |
| Setting Value Resolution | SPS811: voltage 0.5mV, current 0.1mA SPS812: voltage 1mV, current 0.05mA SPS813: voltage 2mV, current 0.01mA SPS831: voltage 0.5mV, current 0.01mA |
| Readback Value Resolution | SPS811: voltage 0.1mV, current 0.01mA SPS812: voltage 0.1mV, current 0.01mA SPS813: voltage 1mV, current 0.01mA SPS831: voltage 0.1mV, current 0.001mA |
| Setting Value Accuracy | SPS811: voltage 0.01%+2mV, current 0.05%+1mA SPS812: voltage 0.01%+5mV, current 0.05%+0.5mA SPS813: voltage 0.01%+10mV, current 0.05%+0.1mA SPS831: voltage 0.01%+2mV, current 0.05%+0.1mA |
| Readback Value Accuracy | SPS811: voltage 0.02%+5mV, current 0.1%+5mA SPS812: voltage 0.02%+15mV, current 0.05%+2mA SPS813: voltage 0.02%+35mV, current 0.05%+1mA SPS831: voltage 0.02%+5mV, current 0.02%+1mA |
| Ripple | SPS811: voltage 3mvp-p, current 2mA rms SPS812: voltage 5mvp-p, current 1mA rms SPS813: voltage 10mvp-p, current 0.5mA rms SPS831: voltage 10mvp-p, current 0.5mA rms |
| Voltmeter Accuracy | 0-12V Accuracy: 0.02%+2mV, 0-58V Accuracy: 0.02%+5mV |
| Milliohmmeter Accuracy | 10W. 0-1000mΩ Accuracy: 0.2%+3mΩ, 1000-10000 mΩ Accuracy: 0.2%+6mΩ |
| Working Condition | 0-40°C, 0-90%RH |
| Dimension | 214 (W) × 101.5 (H) × 365 (D) mm |
| Weight | 6.5kg |
Main Machine
| Module No | Item | Description |
| SPS811 | DC Power Supply | Programmable, 150W, 0-5A, 0-30V |
| SPS812 | DC Power Supply | Programmable, 150W, 0-2A, 0-75V |
| SPS813 | DC Power Supply | Programmable, 150W, 0-1A, 0-150V |
| SPS831 | DC Power Supply | Programmable, 30W, 0-1A, 0-30V |

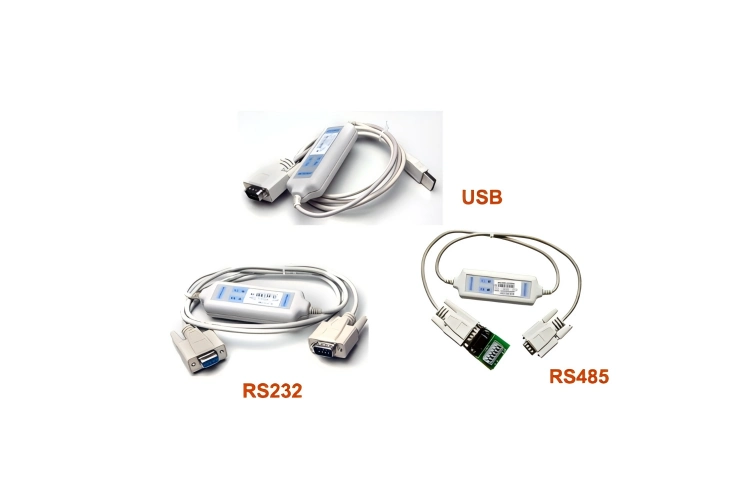

Options
| Module No | Item | Description |
| M131 | RS232 communication cable | Connect the power supply with the computer for communication |
| M132 | RS485 communication cable | Connect the power supply with the computer for communication |
| M133 | USB communication cable | Connect the power supply with the computer for communication |
| M151 | Rack kit | For SPS811 power supply |
