SPA26P54045Z Wide Band Solid State Power Amplifier

SPA26P54045Z is a wide band solid state power amplifier which small signal gain: 50dB Typical, psat: 45dBm Typical, and supply voltage: +28 VDC.

Key Features

Wide Band Solid State Power Amplifier

Small Signal Gain: 50dB Typical

Psat: 45dBm Typical

Supply Voltage: +28 VDC

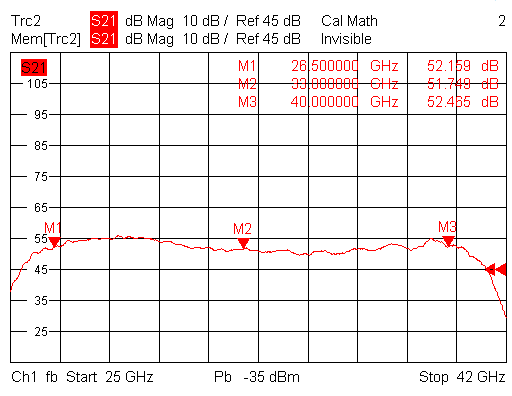

  • Gain @ +25℃

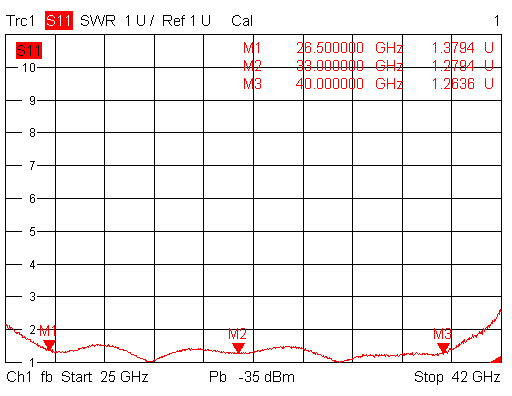

  • Input VSWR @+25℃

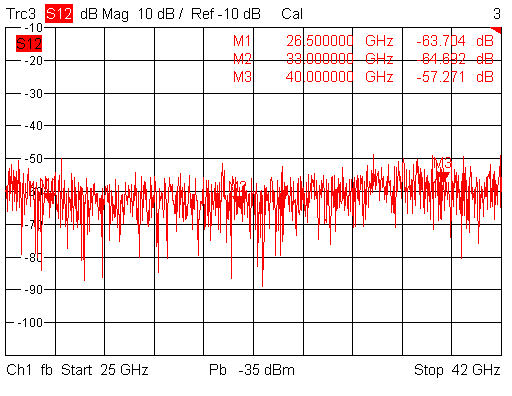

  • Isolation @ +25℃

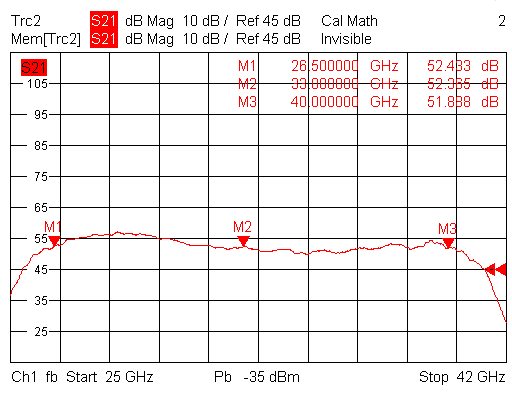

  • Gain @ -40℃

  • Input VSWR @ -40℃

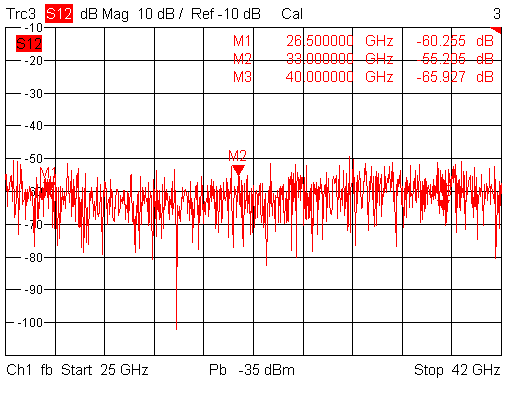

  • Isolation @ -40℃

Frequency Range

26.5 to 40 GHz

Small Signal Gain

50 dB

Gain Flatness

±6.0 dB

Gain Variation Over Temperature (-40⁰C to +70⁰C)

±3.0 dB

Input VSWR

1.5 : 1

Output 1dB Compression Point (P1dB)

43 dBm

Saturated Output Power (Psat)

45 dBm

Supply Current (Vcc=+28V)

8.5 A

Weight

Net: 120 Max. ounces

Including Heat sink: 222.4 Max. ounces

Input / Output Connectors

Input 2.92mm-Female/ Output WR28(E-Plane)

(H-Plane available with adapter)

Material

Copper

Finish

Nickel Plated

Operational Temperature

-40ºC~+70ºC(Case Temperature)

Storage Temperature

-50ºC~+105ºC

Altitude

30,000 ft. (Epoxy Sealed Controlled environment)

60,000 ft. 1.0psi min (Hermetically Sealed Un-

controlled environment) (Optional)

Vibration

25g RMS (15 degrees 2KHz) endurance, 1 hour per axis

Humidity

100% RH at 35ºc, 95%RH at 40ºc

Shock

20G for 11msec half sine wave,3 axis both directions

Main Module

Module No. Item Description
SPA26P54045Z Wide Band Solid State Power Amplifier Frequency range: 26.5 to 40GHz; Small Signal Gain(typ.): 50 dB; Input / Output Connectors: Input 2.92mm-Female/ Output WR28(E-Plane) (H-Plane available with adapter)
