SPA16016343Z is a wide band solid state power amplifier which small signal gain: 51 dB Typical, psat: 46dBm Typical, and supply voltage: +28 VDC.
SPA16016343Z Wide Band Solid State Power Amplifier
Key Features
Gain: 51dB Typical
P1dB Output Power: 45dBm Typical
Supply Voltage: +28V @ 800mA
50 Ohm Matched Input / Output
-
Gain @ +25℃
-
Input VSWR @+25℃
-

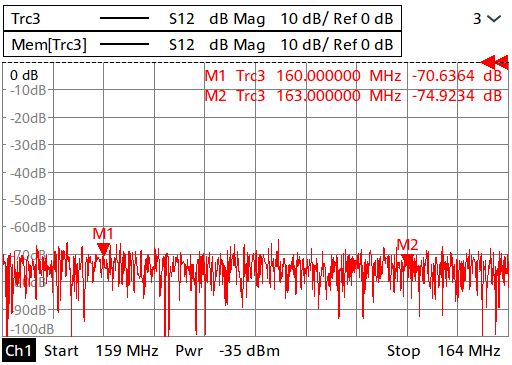

Isolation @ +25℃
-

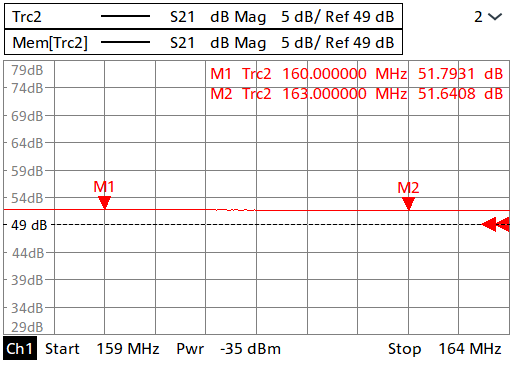

Gain @ -30℃
-
Input VSWR @ -30℃
-

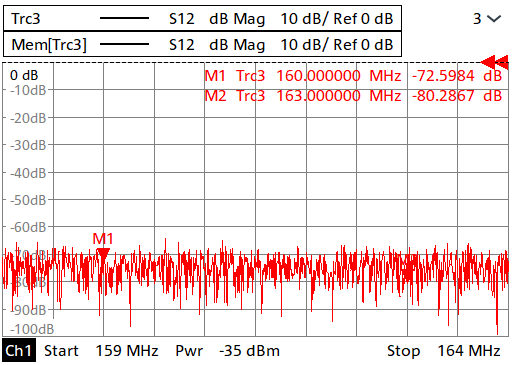

Isolation @ -30℃
-
Gain @ +70℃
-
Input VSWR @ +70℃
-

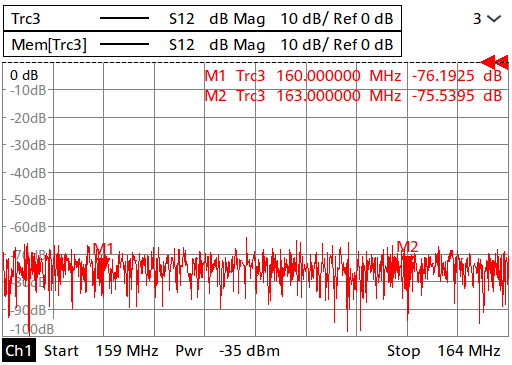

Isolation @ +70℃
| Frequency Range |
|
||||||||
| Gain |
|
||||||||
| Gain Flatness |
|
||||||||
| Gain Variation Over Temperature (-30ºC - +70ºC) |
|
||||||||
| Input VSWR |
|
||||||||
| Output 1dB Compression Point (P1dB) |
|
||||||||
| Saturated Output Power (Psat) |
|
||||||||
| Supply Current (Vcc=+28V) |
|
||||||||
| Isolation S12 |
|
||||||||
| The turn-on time（TTL High @ 2V Min: AMP Biased ON） |
|
||||||||
| The turn-off time（TTL Low @ 0.8V Max: AMP Biased OFF） |
|
||||||||
| Weight | 16.7 Max.ounces |
||||||||
| Impedance | 50 ohms |
||||||||
| Input / Output Connectors | SMA-Female |
||||||||
| Material | Aluminum |
||||||||
(Note: see more detail information in the ‘Resource’ – ‘Datasheet’) |
Main Module
| Module No. | Item | Description |
| SPA26P54045Z | Wide Band Solid State Power Amplifier | Frequency range: min.:160Mz max.:163Mz; Small Signal Gain(typ.): 51 dB; Input / Output Connectors: SMA-Female |
