SPA0P020340Z Wide Band Solid State Power Amplifier

Overview Specifications Ordering Resources

SPA0P020340Z is a wide band solid state power amplifier which small signal gain: 43 dB Typical, psat: 41 dBm Typical, and supply voltage: +28 VDC.

Key Features

Gain: 43dB typical

Output power +41dBm typical

High P1dB: +38dB m Full Band

Supply Voltage: +28V

50 Ohm Matched

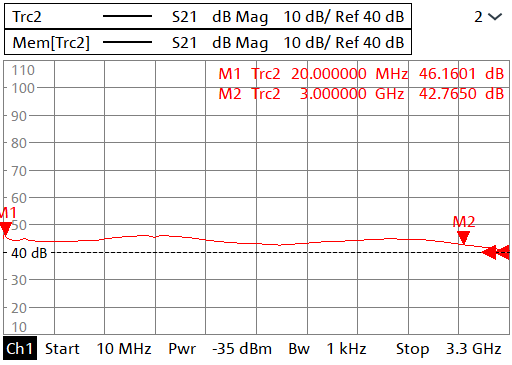

Gain @ +25℃
Input VSWR @+25℃
Isolation @ +25℃
Gain @ -40℃
Input VSWR @ -40℃

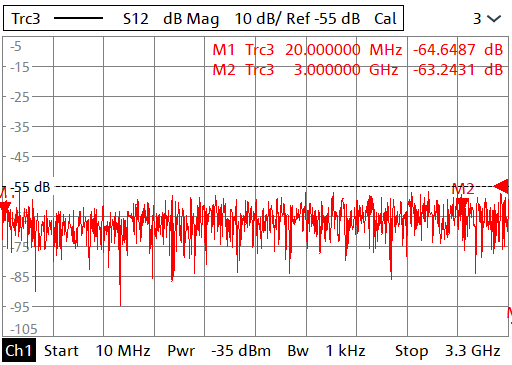

Isolation @ -40℃
Gain @ +85℃
Input VSWR @ +85℃

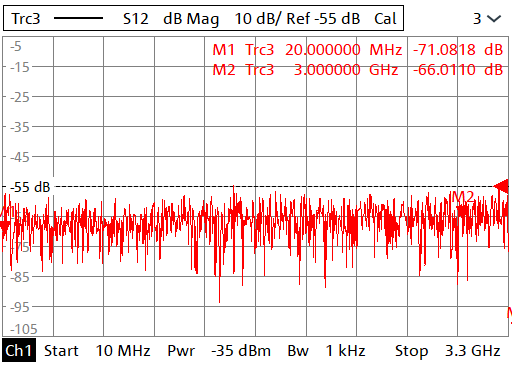

Isolation @ +85℃

Frequency Range

Min.	Typ.	Max.	Units.
0.02		3	GHz

Gain

Gain Flatness

±2.5

Gain Variation Over Temperature (-40ºC - +85ºC)

±2.0

Input VSWR

1.6

Output 1dB Compression Point (P1dB)

dBm

Saturated Output Power (Psat)

dBm

Supply Current (Vcc=+28VDC)

0.85

2.3

Isolation S12

-55

Weight

6.24 Max. ounces (Amplifier)

54.4 Max. ounces (Including Heat sink)

Impedance

50 ohms

Input / Output Connectors

SMA-Female

Material

Aluminum

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Module

Module No.	Item	Description
SPA0P020340Z	Wide Band Solid State Power Amplifier	Frequency range: 0.02GHz to 3GHz ; Small Signal Gain(typ.): 43 dB; Input / Output Connectors: SMA-Female

Document

SPA0P020340Z-Wide-Band-Solid-State-Power-Amplifier-Datasheet
