SLA-WB-22 is a broadband amplifier. Its saturation output power 40W, gain 1dB compression point output power 20W. The gain can be adjusted, and the setting can be saved by one key, which provides a convenient and simple operation choice. It can be used with the mainstream signal generator to achieve perfect signal amplification. Wide range of power supply, compatible with power supply standards in different regions of the
world.

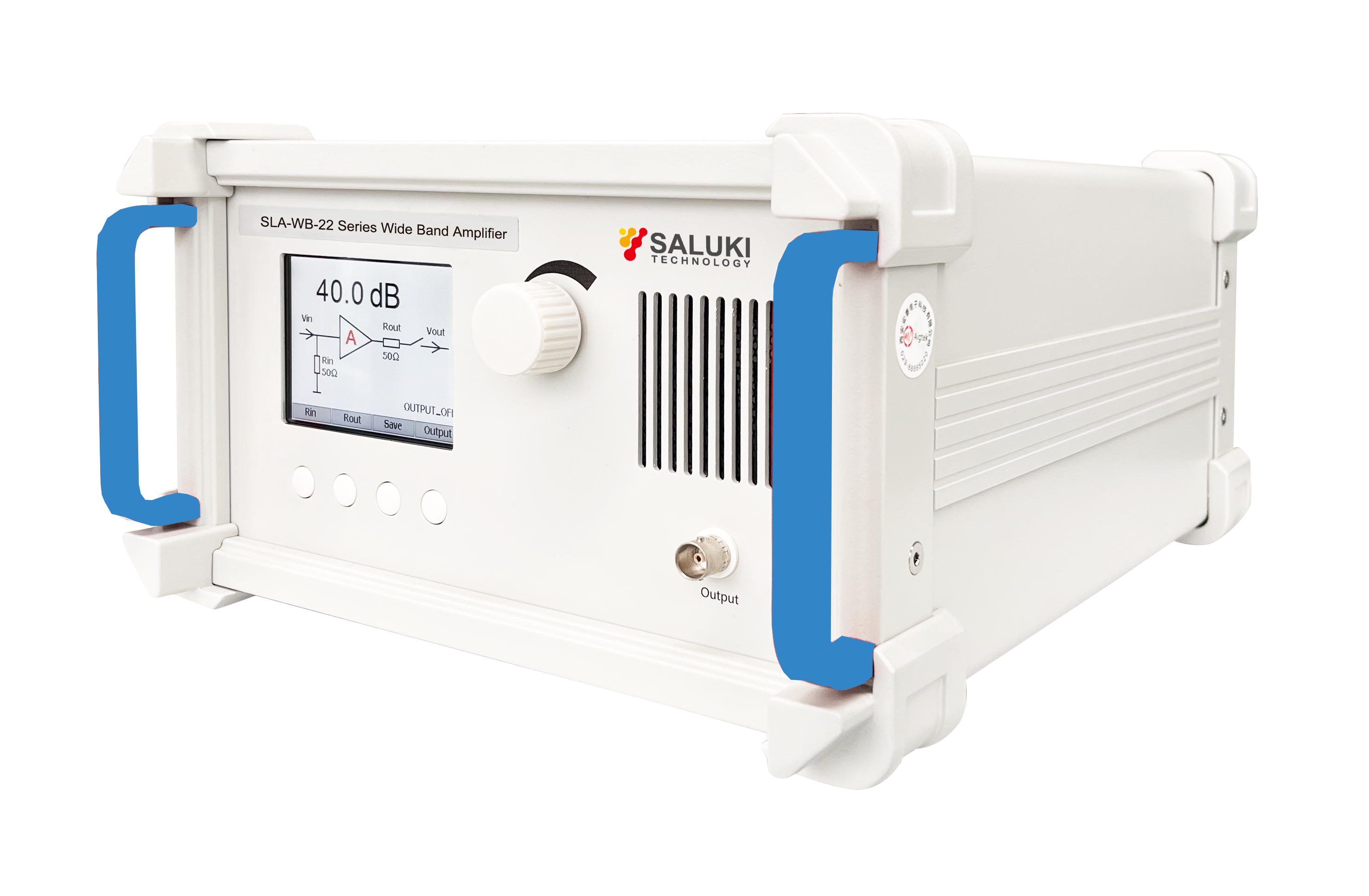

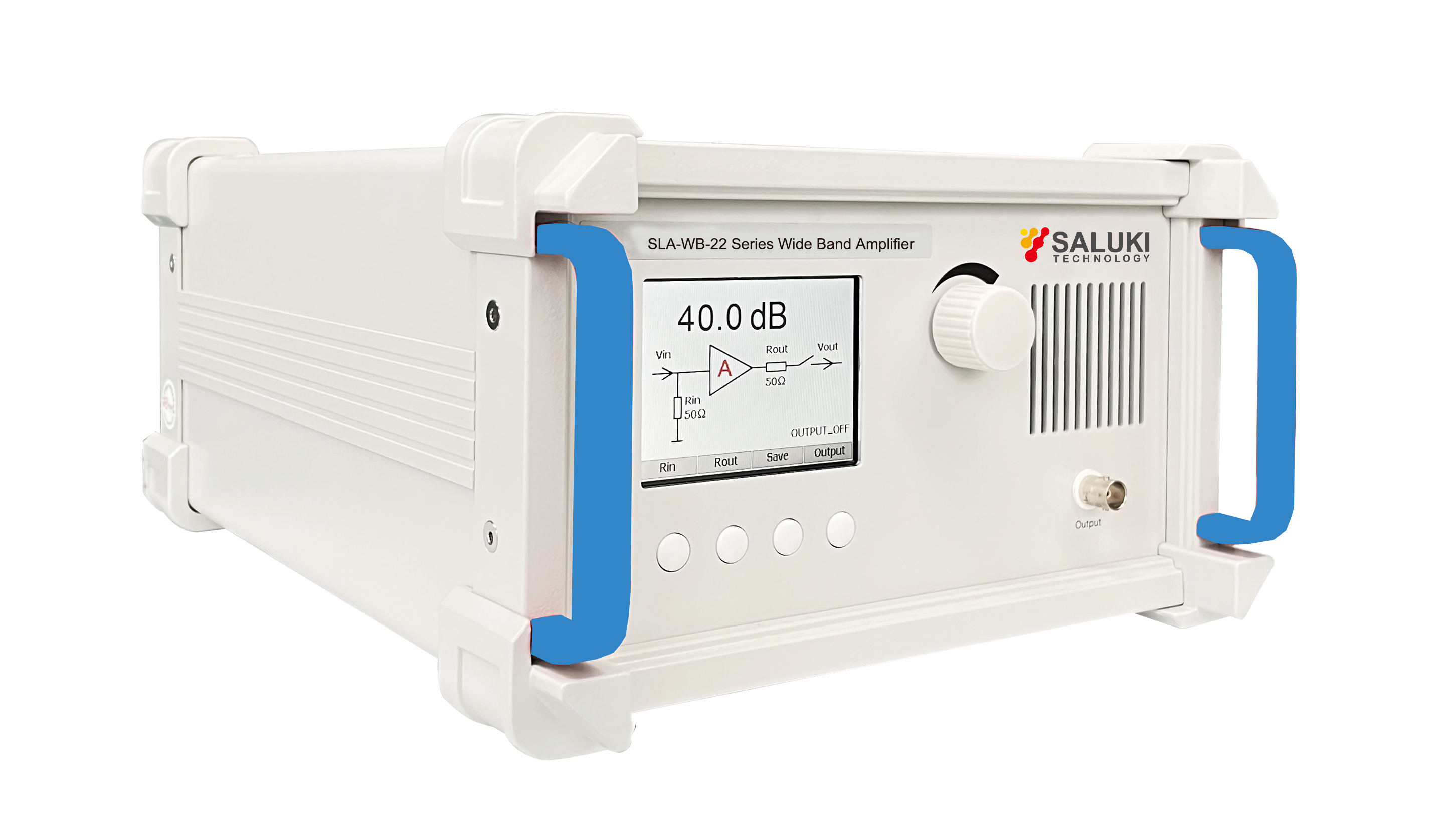

SLA-WB-22 Wide Band Amplifier
Key Features
Class of operation: Class AB
Bandwidth（-3dB）: 100kHz~22MHz
Rated Output Power: 20W
P1dB output power: 40W
Power gain power: 40dB(20dB~40dB/0.5dB step)
Supply voltage: AC110~240V,50/60Hz
| Model | SLA-WB-22 |
| Class of operation | Class AB |
| Bandwidth（-3dB） | 100kHz~22MHz |
| Power gain power | 40dB(20dB~40dB/0.5dB step) |
| Input signal of the rated output power | 316mVrms/2mW/3dBm(40dB gain 1MHz) |
| Lossless maximum input signal | 1Vrms/20mW/13dBm |
| Input resistance | 50Ω |
| Output resistance | 50Ω |
| Supply voltage | AC110~240V，50/60Hz |
Main Machine
| Module No. | Item | Description |
| SLA-WB-22 | Wide Band Amplifier | Bandwidth: 100kHz~22MHz;P1dB output power: 40W; Slew rate: ≥467V/μs. |
