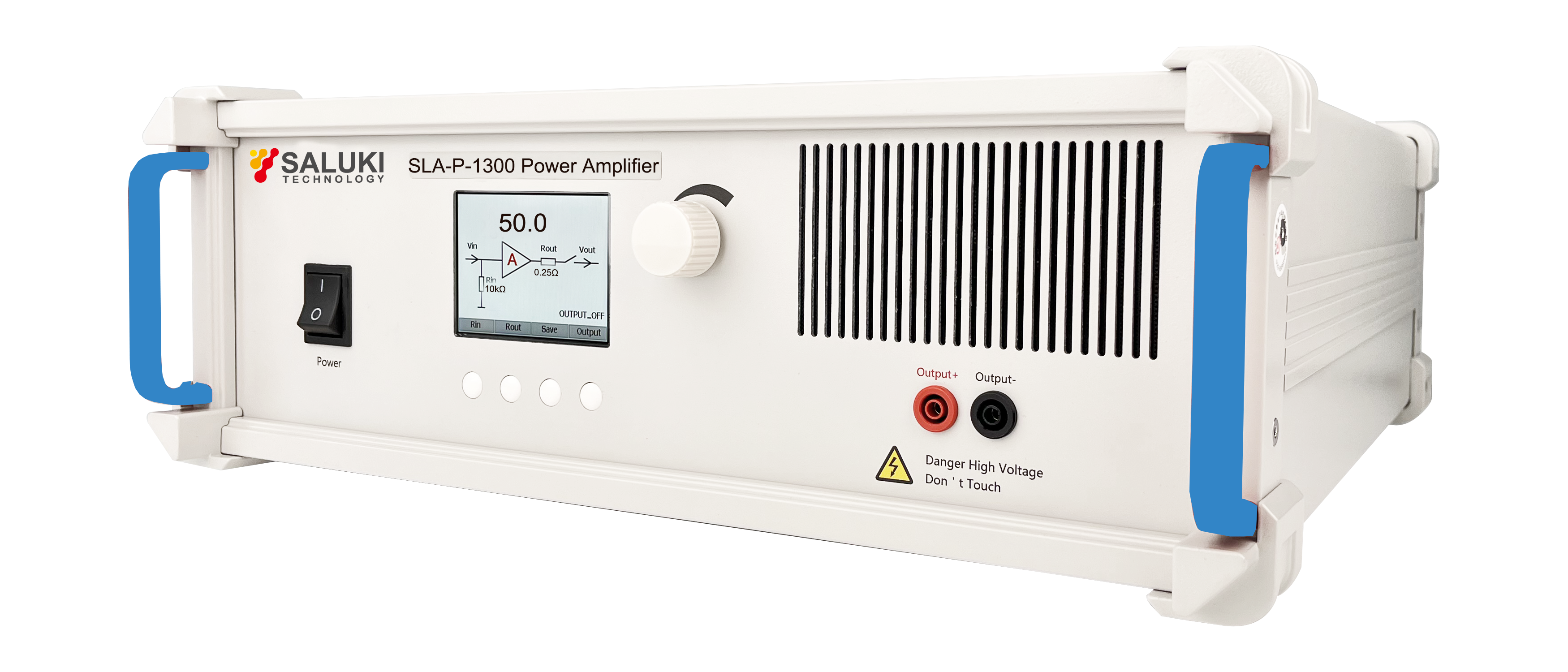

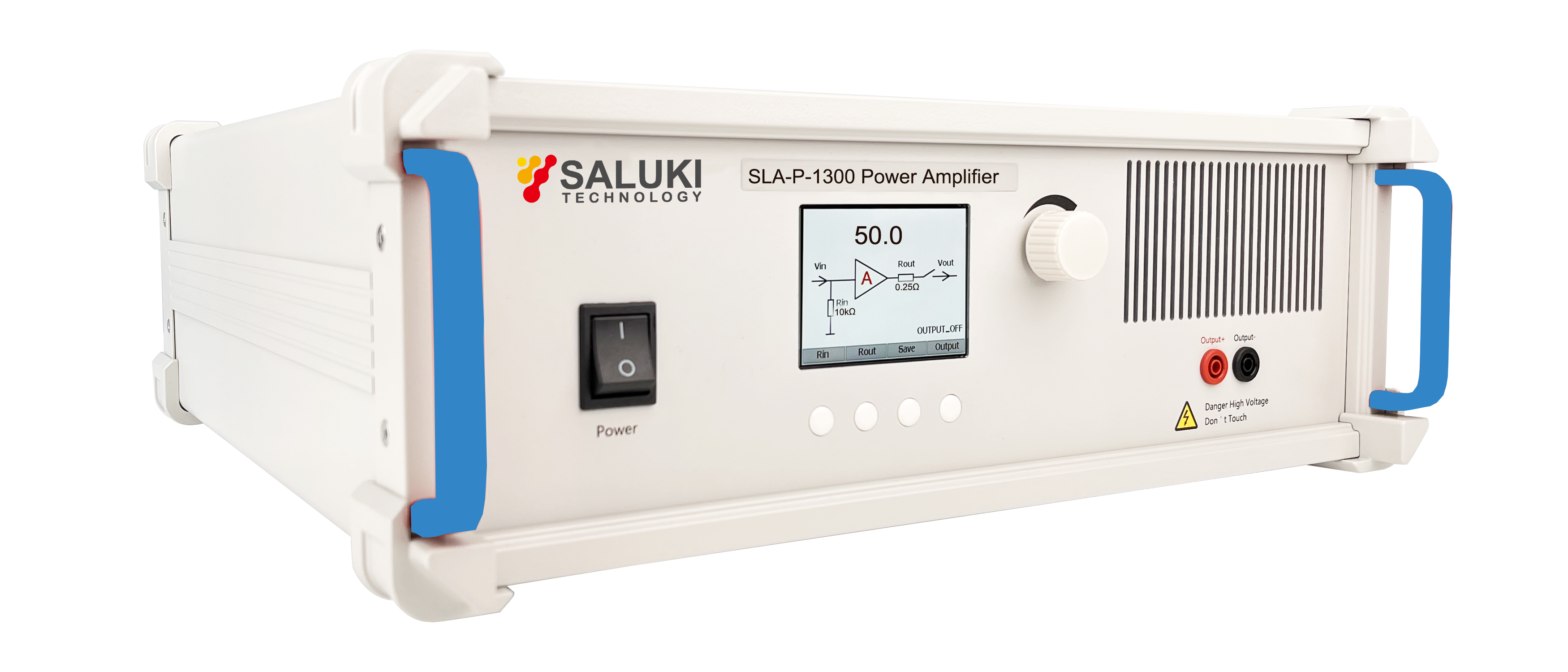

SLA-P-1300 Power Amplifier

The SLA-P-1300 is an ideal power amplifier for amplifying AC and DC signals. Maximum output 1300Wp power, can drive power type load. The gain control can be adjusted, and the common Settings can be saved with one key, providing you with a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

Key Features

Maximum output voltage: -20V to 130V

Maximum output current: 10Ap

Bandwidth (-3dB): DC~20kHz

Slew rate: ≥11.5V/μs

  • Ultrasonic Acoustics

    · Wide range, completely covering the ultrasonic frequency range.

    · The amplitude-frequency and phase-frequency characteristics are good, and various signal simulations are provided for ultrasonic experiments.

    · A variety of voltage and power options, widely support a variety of ultrasound equipment.

    · Multi-channel can be customized, which is convenient for users to build various test environments and complete complex experiments.

    · The output impedance matching is adjustable, which is convenient for matching with various ultrasonic probes.

    · Input impedance matching can be adjusted, supporting arbitrary waveform generators of mainstream domestic and foreign brands.

  • Piezo Stack Drive

    · Ultra-high power output, driving various piezoelectric stack models;

    · Optional oscilloscope module, which directly displays the output waveform, output voltage and current on the device screen, and the vertical resolution of the module can reach 14 bits;

    · The device has flat and wide frequency characteristics and high output stability;

    · For more channel requirements, you can choose the master-slave mode, and one master controls multiple slaves;

    · The equipment has its own monitoring port, which can monitor the output voltage and current of the power amplifier in real time and safely;

    · The gain is adjustable by numerical control, and one-key saves frequently used settings, providing convenient and concise operation options.

Model

SLA-P-1300

Channel

1

Form of output

Single output

Bandwidth(-3dB)

DC~20kHz

Maximum output voltage

-20V to 130V

Maximum output current

5Ap(DC~50Hz)

10Ap(>50Hz)

Maximum output power

1300Wp

Fuse

15A/250V

Voltage gain

x0~50(0.1 step/1 step)

Upper limit of load RL

≥25.75Ω(DC~50Hz)

≥12.75Ω(>50Hz)

Slew rate

≥11.5V/μs

Output resistance

0.25Ω

Input resistance

10kΩ

Input amplitude

0~10Vp-pMAX

Output voltage error

≤±3%FS@1kHz

Output connector

4mm banana socket

Supply voltage

AC110V~240V,50/60Hz

Main Machine

Module No. Item Description
SLA-P-1300 Power Amplifier Bandwidth: DC~20kHz; Maximum output voltage: ≤0.5%@1kHz,90Vp-p ; Maximum output current: 10Ap; Slew rate: ≥11.5V/μs.
