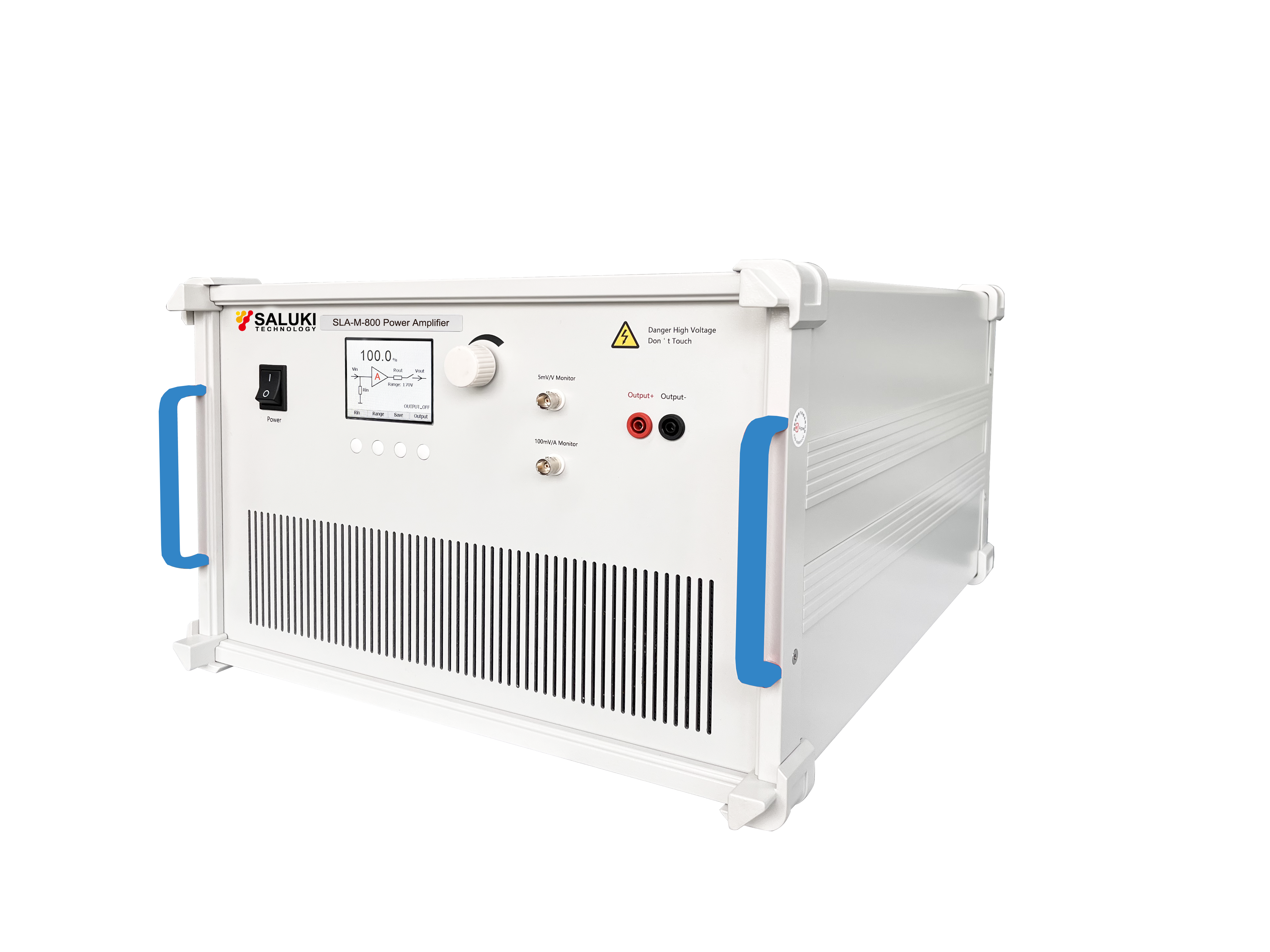

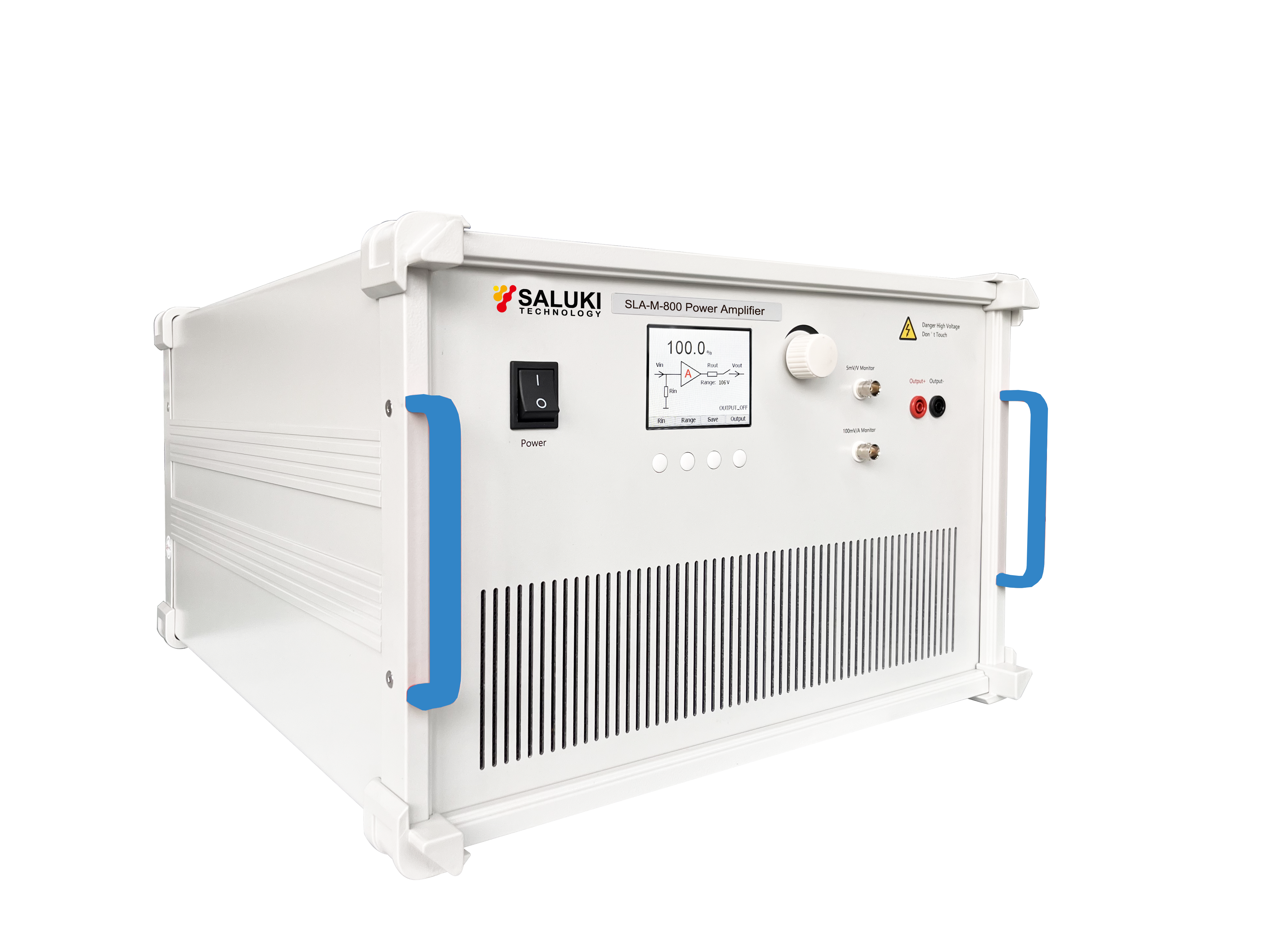

SLA-M-800 Power Amplifier

The SLA-M-800 is an ideal power amplifier for amplifying AC and DC signals. Maximum output 800VA power, can drive power type load. The gain control can be adjusted, and the common Settings can be saved with one key, providing you with a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

Key Features

Maximum output voltage: 690Vrms

Maximum output power: 800VA

Bandwidth (-3dB): 10kHz to 500kHz

Over current protection

Over temperature protection

  • Ultrasonic Acoustics

    · Wide range, completely covering the ultrasonic frequency range.

    · The amplitude-frequency and phase-frequency characteristics are good, and various signal simulations are provided for ultrasonic experiments.

    · A variety of voltage and power options, widely support a variety of ultrasound equipment.

    · Multi-channel can be customized, which is convenient for users to build various test environments and complete complex experiments.

    · The output impedance matching is adjustable, which is convenient for matching with various ultrasonic probes.

    · Input impedance matching can be adjusted, supporting arbitrary waveform generators of mainstream domestic and foreign brands.

  • Underwater Communication

    · Drive and match various sonar systems;

    · High power output, extremely high amplitude-frequency and phase-frequency characteristics;

    · Impedance matching design can be carried out according to customer needs to ensure output characteristics;

    · The gain can be adjusted by numerical control to ensure various simulations of underwater acoustic experiments;

    · Broadband amplification to ensure the integrity of the signal transmitted by underwater acoustic communication;

    · Stable work for a long time, perfect protection, over-current protection, over-voltage protection, over-temperature protection.

Model

SLA-M-800

Channel

1

Form of output

Single output

Bandwidth(-3dB)

10kHz to 500kHz

Maximum output voltage

690Vrms

Maximum output power

800VA

Input voltage at full amplitude output

1Vrms

Input resistance

10kΩ

Voltage monitor

10mV/V

Current monitor

100mV/A

Output connector

4mm banana socket

Protection

Over current protection

over temperature protection

Signal ground

Connected with the grounding of the shell and the power line.

Main Machine

Module No. Item Description
SLA-M-800 Power Amplifier Bandwidth: 10kHz~500kHz; Maximum output voltage: 690Vrms; Maximum output power: 800VA
