The SLA-M-400 is an ideal power amplifier for amplifying AC and DC signals. Maximum output 400VA power, can drive power type load. The gain control can be adjusted, and the common Settings can be saved with one key, providing you with a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

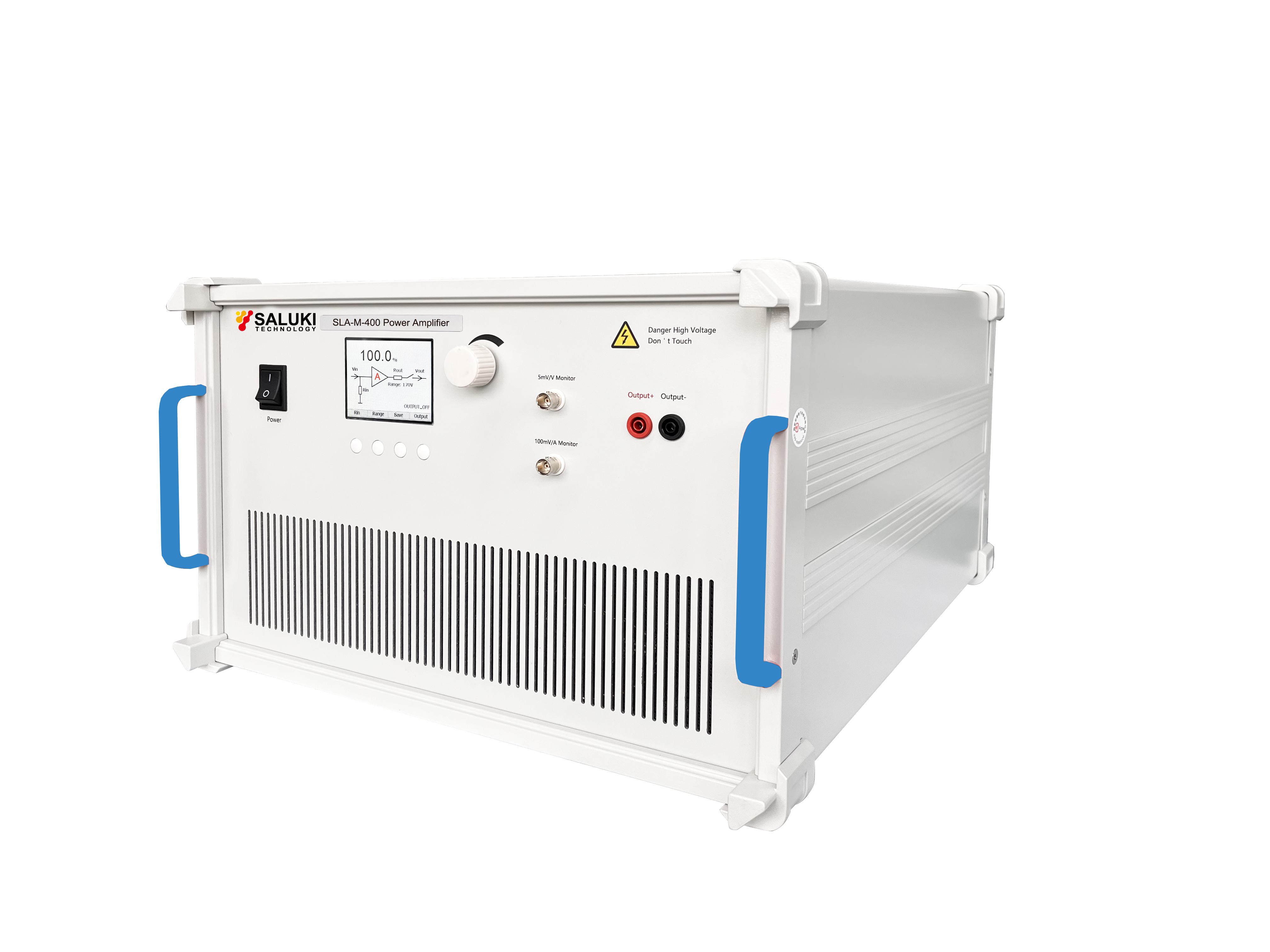

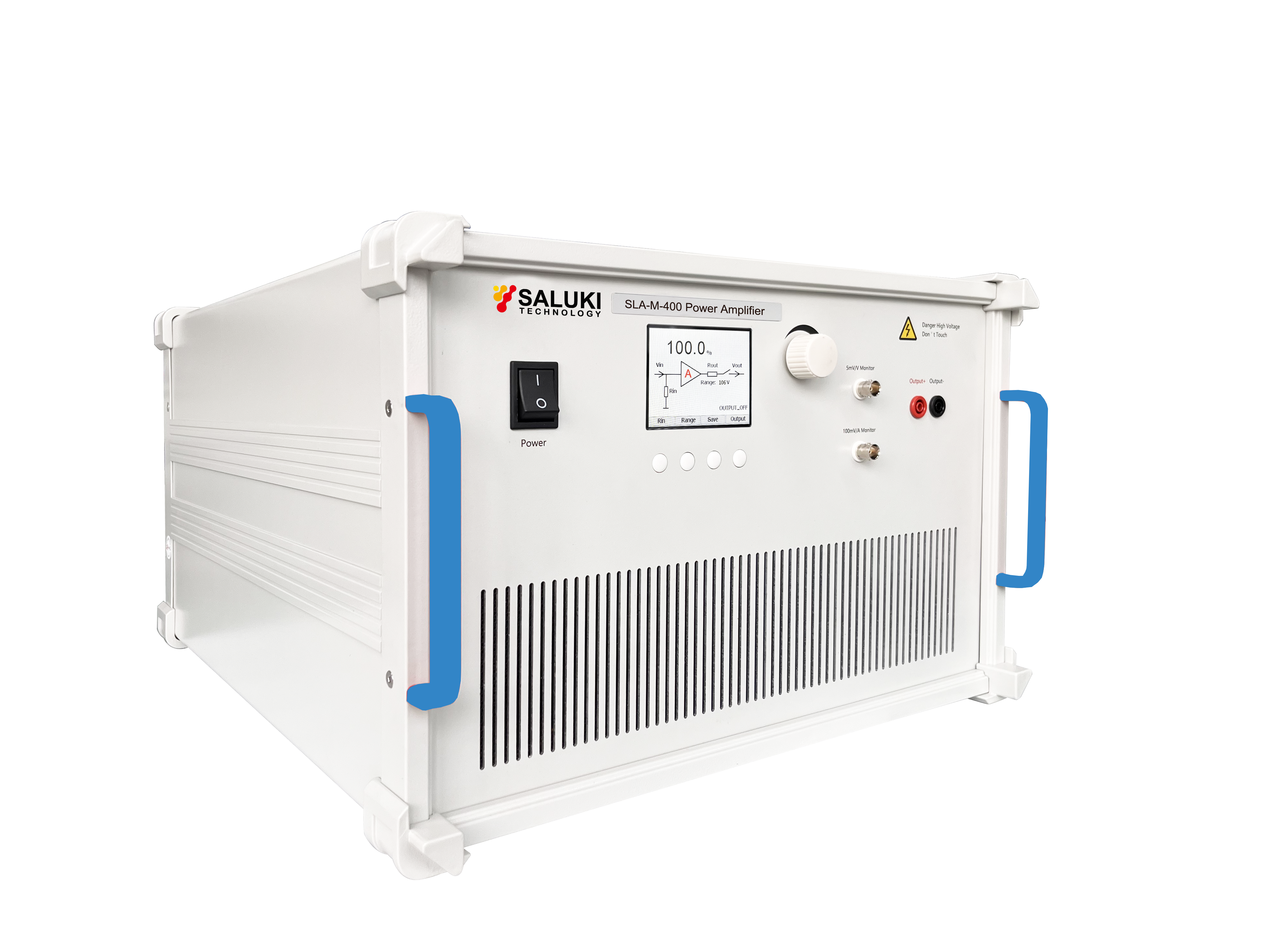

SLA-M-400 Power Amplifier
Key Features
Maximum output voltage: 345Vrms
Maximum output power: 400VA
Bandwidth （-3dB）: 10kHz to 500kHz
Over current protection
Over temperature protection
-
Ultrasonic Acoustics
· Wide range, completely covering the ultrasonic frequency range.
· The amplitude-frequency and phase-frequency characteristics are good, and various signal simulations are provided for ultrasonic experiments.
· A variety of voltage and power options, widely support a variety of ultrasound equipment.
· Multi-channel can be customized, which is convenient for users to build various test environments and complete complex experiments.
· The output impedance matching is adjustable, which is convenient for matching with various ultrasonic probes.
· Input impedance matching can be adjusted, supporting arbitrary waveform generators of mainstream domestic and foreign brands.
-
Underwater Communication
· Drive and match various sonar systems;
· High power output, extremely high amplitude-frequency and phase-frequency characteristics;
· Impedance matching design can be carried out according to customer needs to ensure output characteristics;
· The gain can be adjusted by numerical control to ensure various simulations of underwater acoustic experiments;
· Broadband amplification to ensure the integrity of the signal transmitted by underwater acoustic communication;
· Stable work for a long time, perfect protection, over-current protection, over-voltage protection, over-temperature protection.
| Model | SLA-M-400 |
| Channel | 1 |
| Form of output | Single output |
| Bandwidth（-3dB） | 10kHz to 500kHz |
| Maximum output voltage | 345Vrms |
| Maximum output power | 400VA |
| Input voltage at full amplitude output | 1Vrms |
| Input resistance | 10kΩ |
| Voltage monitor | 10mV/V |
| Current monitor | 100mV/A |
| Output connector | 4mm banana socket |
| Protection | Over current protection over temperature protection |
| Signal ground | Connected with the grounding of the shell and the power line. |
Main Machine
| Module No. | Item | Description |
| SLA-M-400 | Power Amplifier | Bandwidth: 10kHz~500kHz; Maximum output voltage: 345Vrms; Maximum output power: 400VA |
