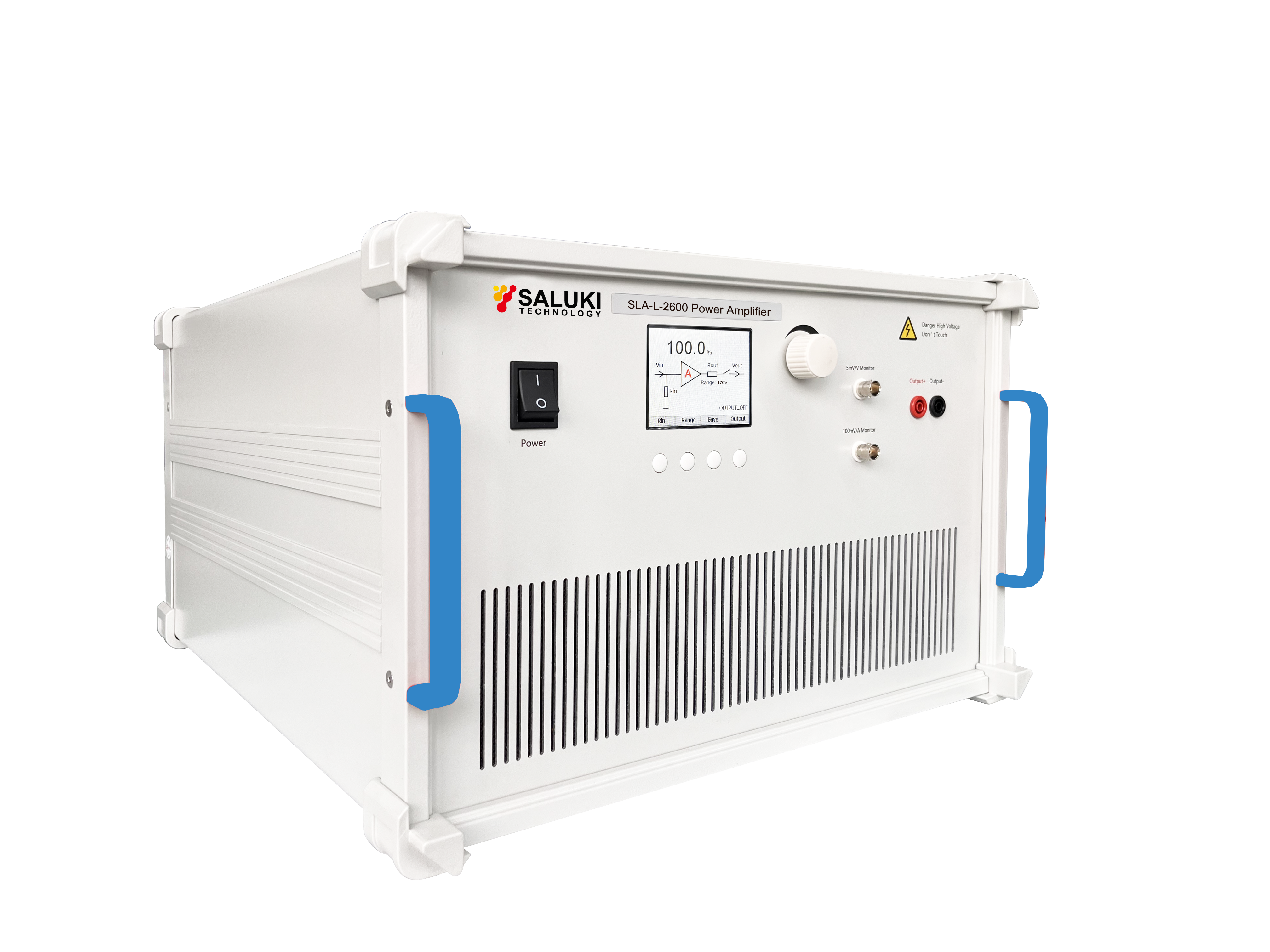

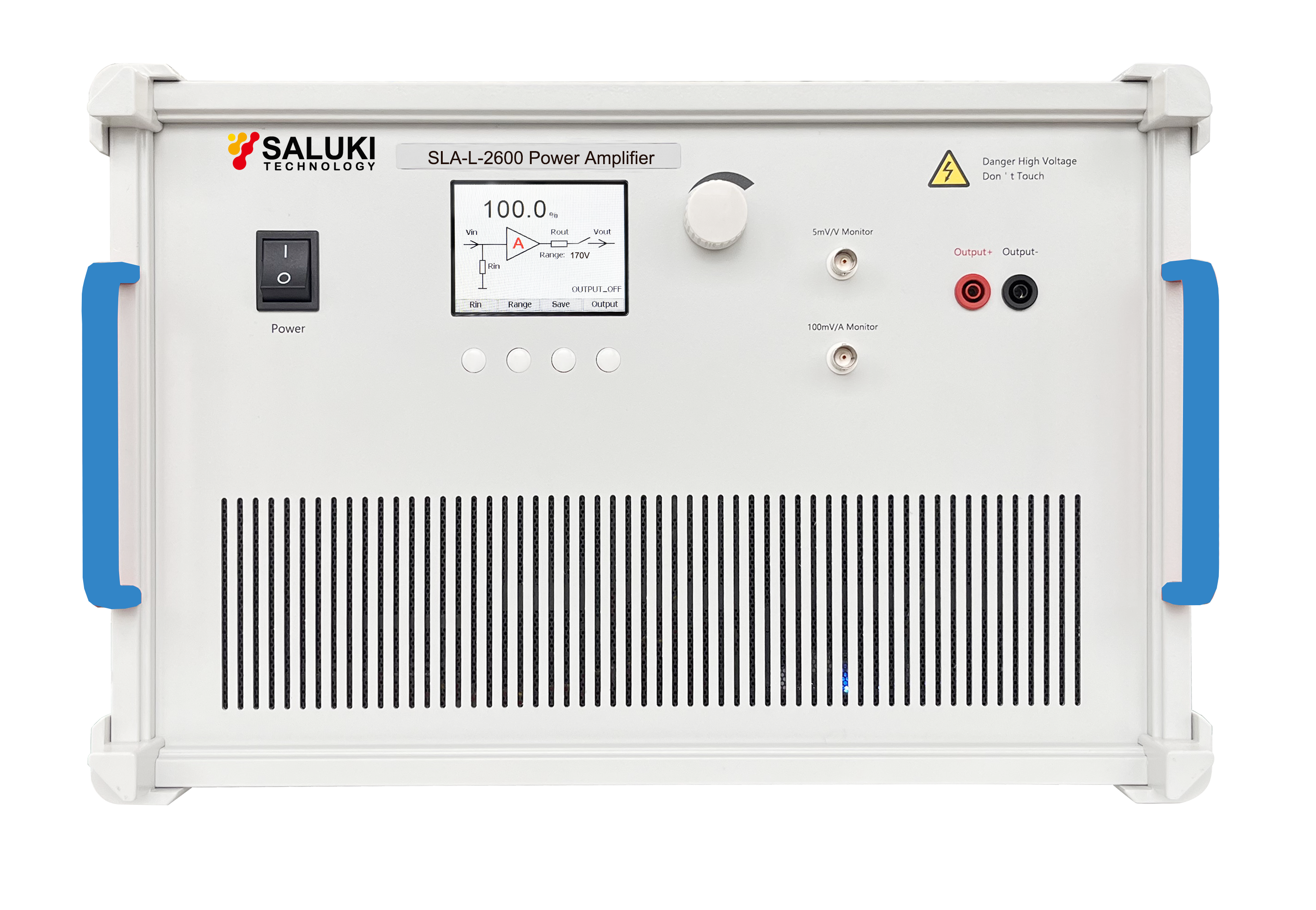

SLA-L-2600 Power Amplifier

The SLA-L-2600 is an ideal power amplifier for amplifying AC and DC signals. Maximum output 2600VA power, can drive power type load. The gain control can be adjusted, and the common Settings can be saved with one key, providing you with a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

Key Features

Maximum output voltage: 1200Vrms

Maximum output power: 2600VA

Bandwidth (-3dB): 200Hz to 120kHz

Over current protection

Model

SLA-L-2600

Bandwidth(-3dB)

200Hz to 120kHz

Maximum output voltage

1200Vrms

Maximum output power

2600VA

Input voltage at full amplitude output

1Vrms(1kHz)

Input resistance

10kΩ

Voltage monitor

5mV/V

Current monitor

100mV/A

Output connector

4mm banana socket

Protection

Overcurrent protection

Signal ground

Connected with the grounding of the shell and the power line.

Supply voltage

AC110~240V, 50/60Hz

Main Machine

Module No. Item Description
SLA-L-2600 Power Amplifier Bandwidth: 200Hz~120kHz; Maximum output voltage: 1200Vrms; Maximum output power: 2600VA
