SLA-HV-800D is an ideal single-channel high voltage amplifier for amplifying AC/DC signals. Maximum output 800Vp-p (±400Vp) high voltage, can drive high voltage load. The voltage gain can be adjusted, and the common Settings can be saved with one key, providing a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

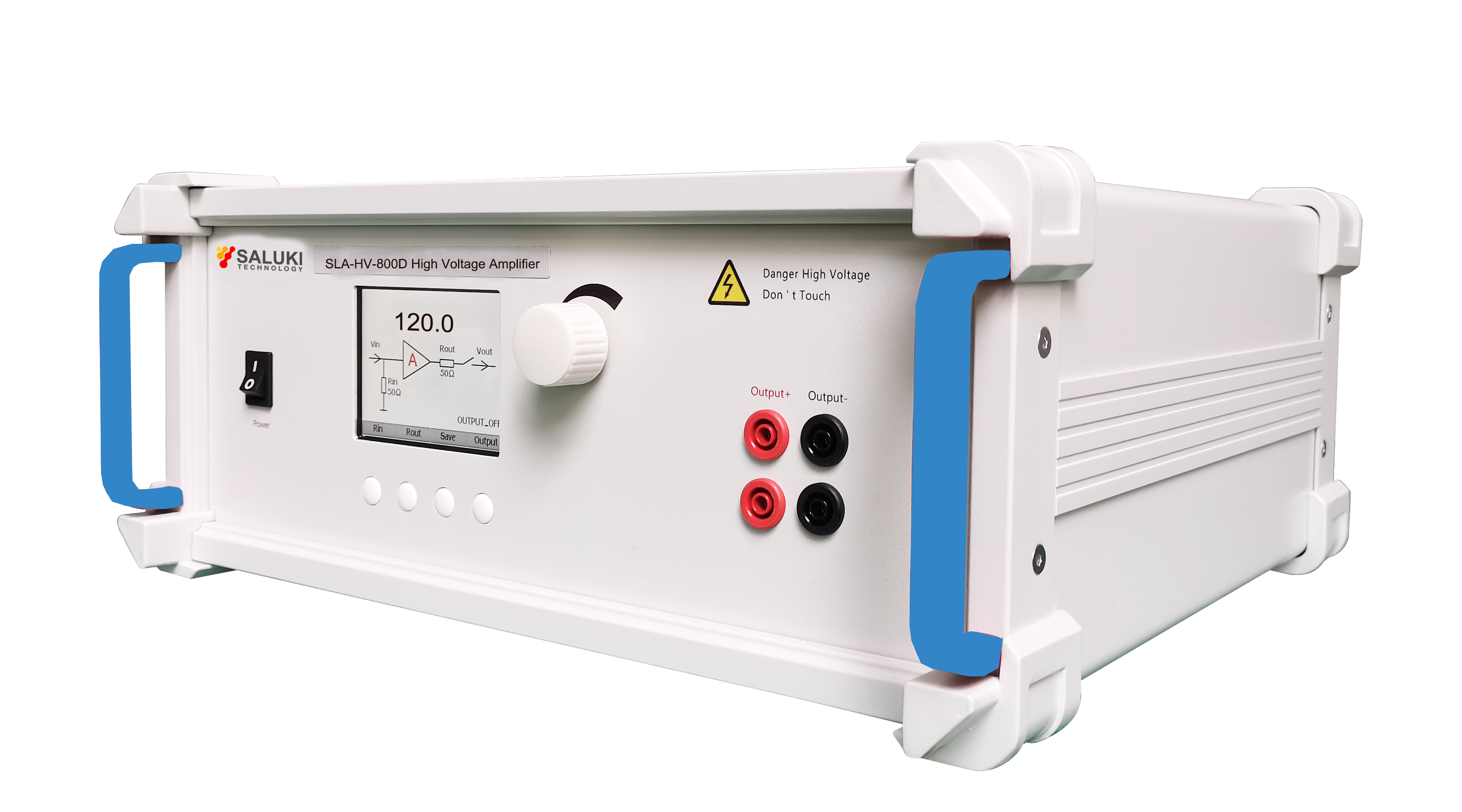

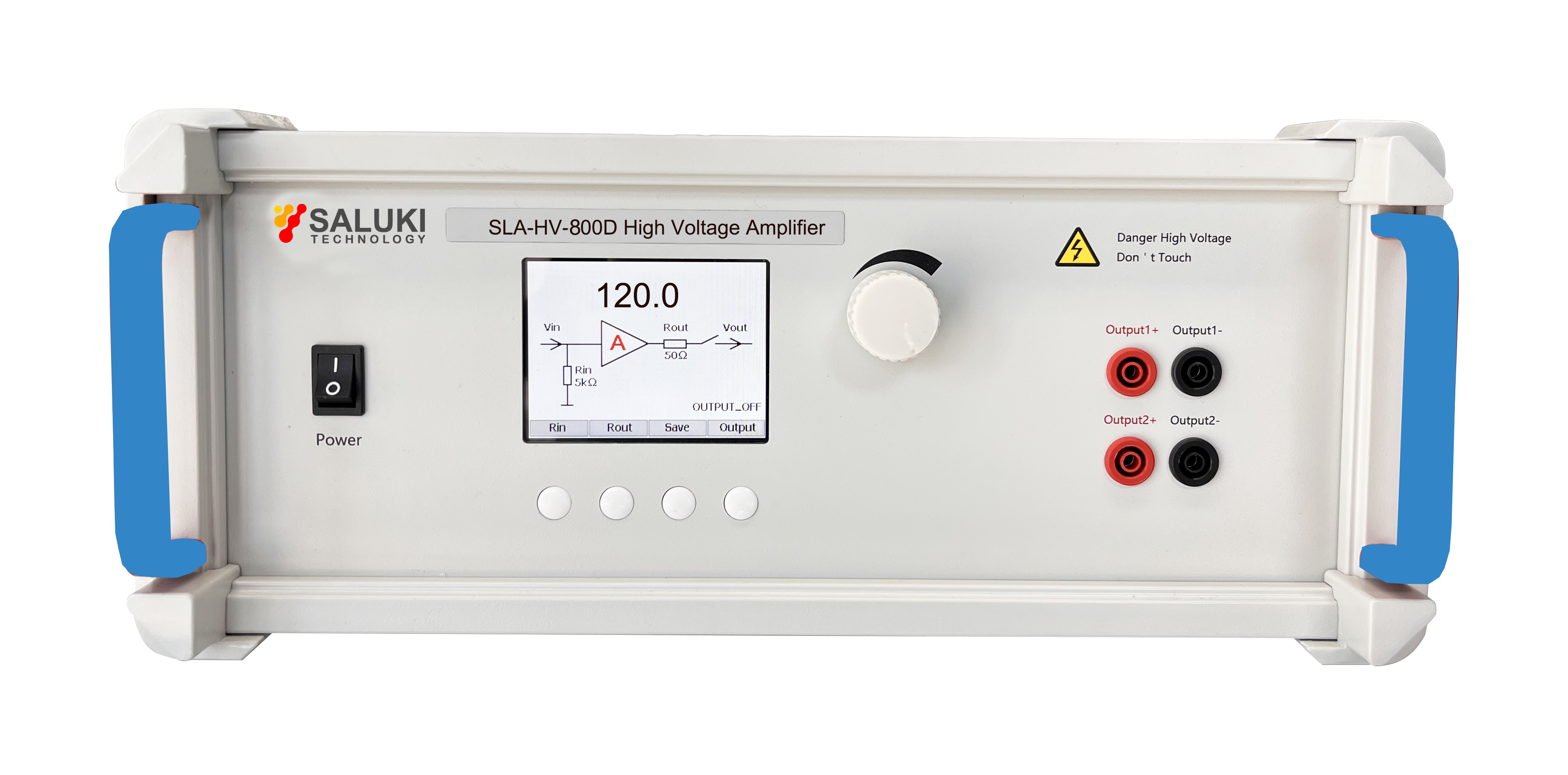

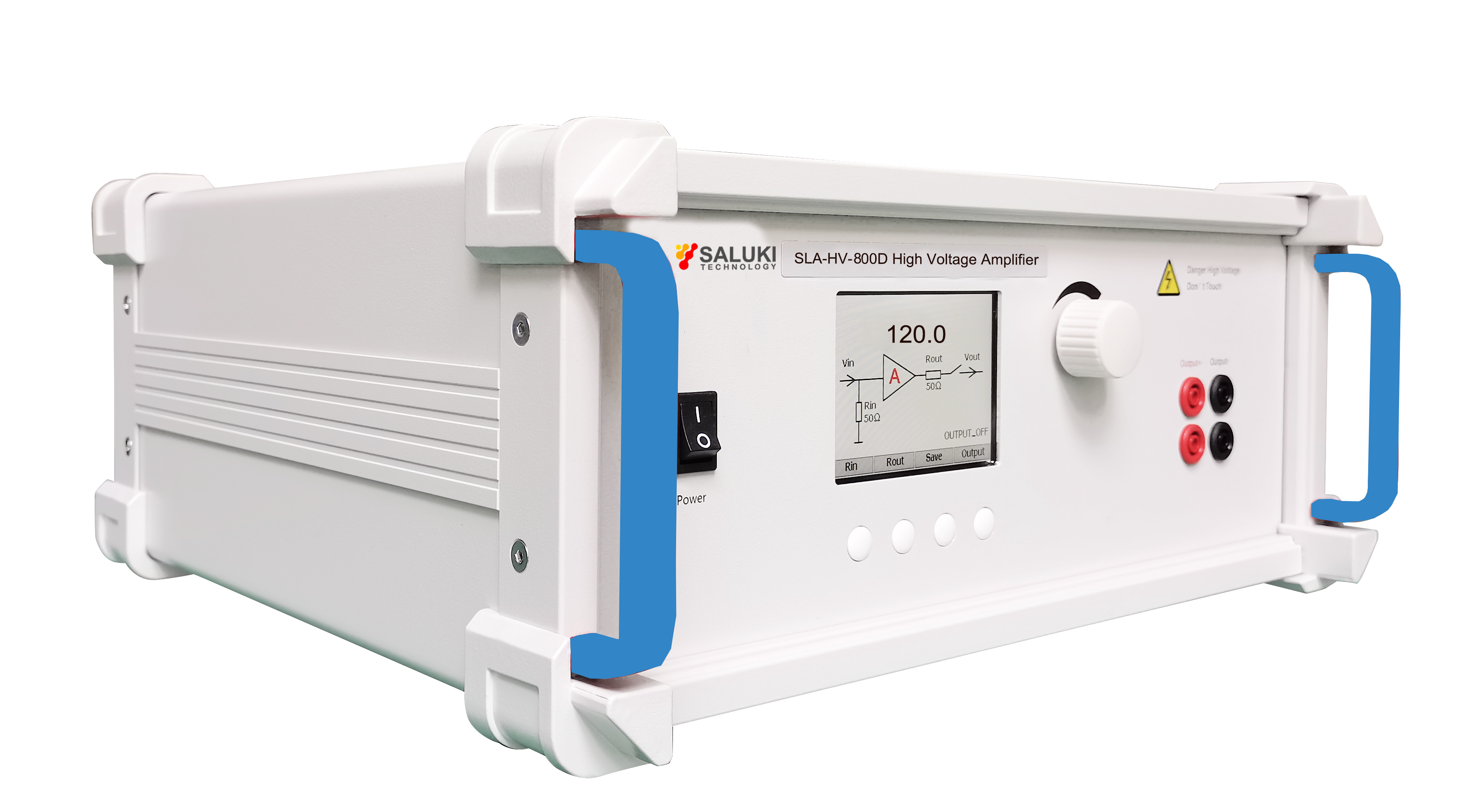

SLA-HV-800D High Voltage Amplifier
Key Features
Dual channel
Maximum output voltage: 800Vp-p(±400Vp)
The maximum output current is 40mAp
Bandwidth (-3dB) : DC to 200kHz
Slew rate: ≥356V/μs
| Model | SLA-HV-800D |
| Channel | 2 |
| Form of output | Single output |
| Bandwidth（-3dB） | DC~200kHz |
| Maximum output voltage | 800Vp-p（±400Vp） |
| Maximum output current | 20mAp（DC~50Hz） 40mAp（>50Hz） |
| Maximum output power | 16Wp |
| Fuse | 2A/250V |
| Upper limit of load RL | ≥19.9kΩ（DC~50Hz） ≥9.9kΩ（>50Hz） |
| Slew rate | ≥356V/μs |
| Output resistance | 100Ω /5kΩ (customizable） |
| Supply voltage | AC220V±10%, 50Hz |
Main Machine
| Module No. | Item | Description |
| SLA-HV-800D | High Voltage Amplifier | Bandwidth: DC~200kHz; Maximum output voltage: 800Vp-p(±400Vp); Maximum output current: 40mAp; Slew rate: ≥356V/μs. |
