SLA-HV-400D is an ideal dual-channel high voltage amplifier for amplifying AC/DC signals. Maximum output 400Vp-p(±200Vp) high voltage, can drive high voltage load. The voltage gain can be adjusted, and the common Settings can be saved with one key, providing a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

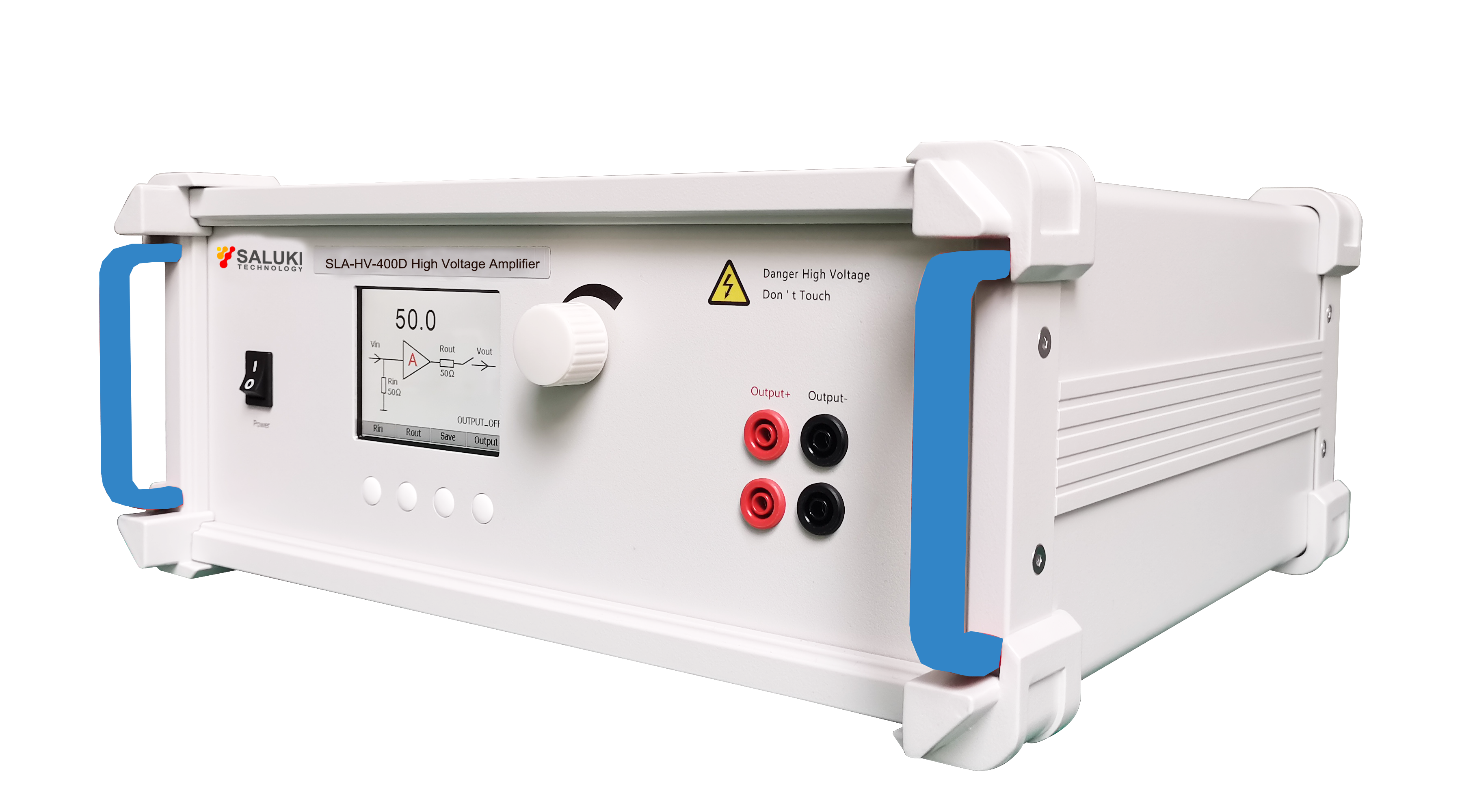

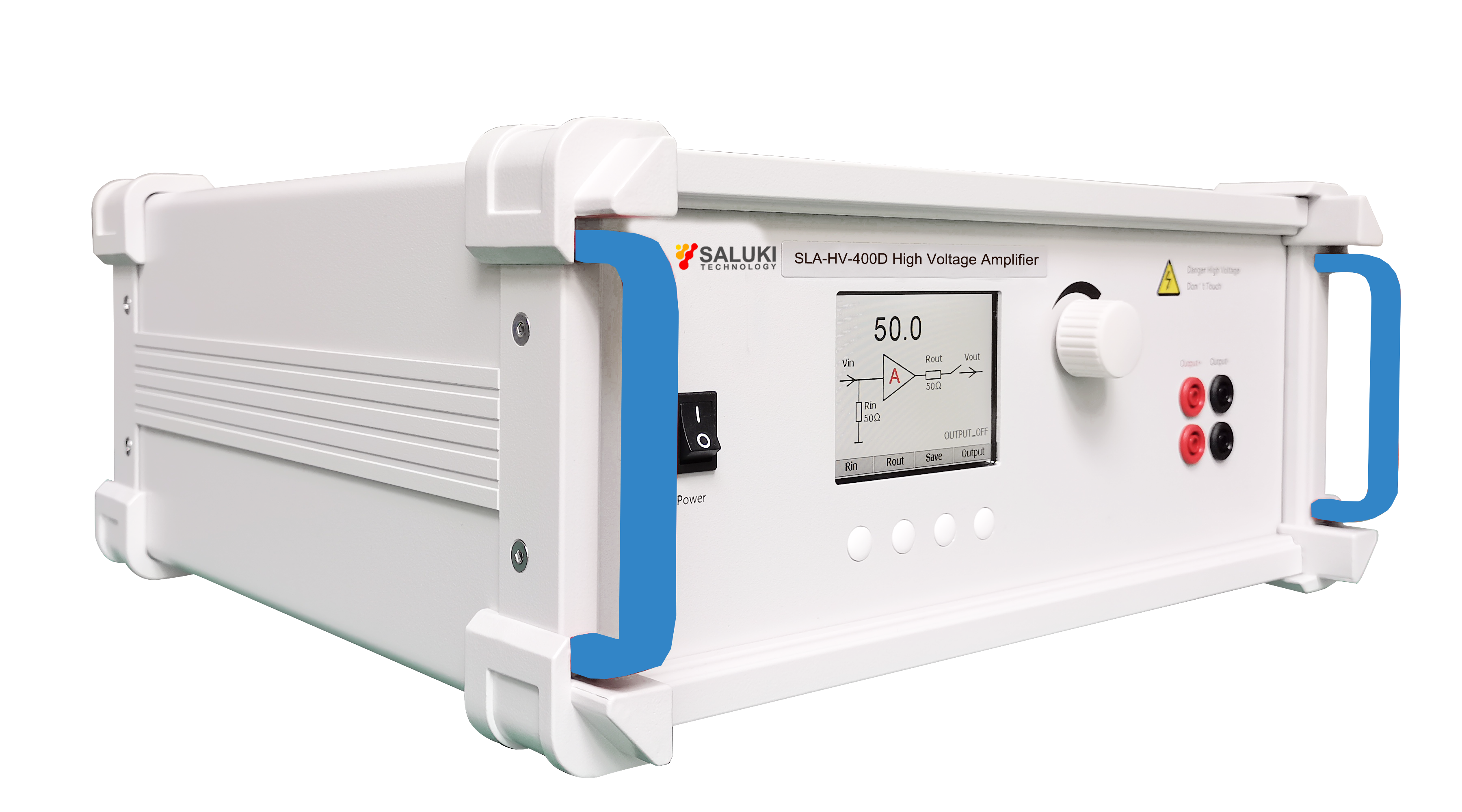

SLA-HV-400D High Voltage Amplifier
Key Features
Dual channel
Maximum output voltage: 400Vp-p(±200Vp)
The maximum output current is 100mAp
Bandwidth (-3dB) : DC to 500kHz
Slew rate: ≥445V/μs
| Model | SLA-HV-400D |
| Channel | 2 |
| Form of output | Single output |
| Bandwidth（-3dB） | DC~500kHz |
| Maximum output voltage | 400Vp-p（±200Vp） |
| Maximum output current | 50mAp（DC~50Hz） 100mAp（>50Hz） |
| Maximum output power | 20Wp |
| Fuse | 2A/250V |
| Upper limit of load RL | ≥3.95kΩ（DC~50Hz） ≥1.95kΩ（>50Hz） |
| Slew rate | 445V/μs |
| Output resistance | 50Ω /2.5kΩ (customizable） |
| Supply voltage | AC220V±10%, 50Hz |
Main Machine
| Module No. | Item | Description |
| SLA-HV-400D | High Voltage Amplifier | Bandwidth: DC~500kHz; Maximum output voltage: 400Vp-p(±200Vp); Maximum output current: 100mAp; Slew rate: ≥445V/μs. |
