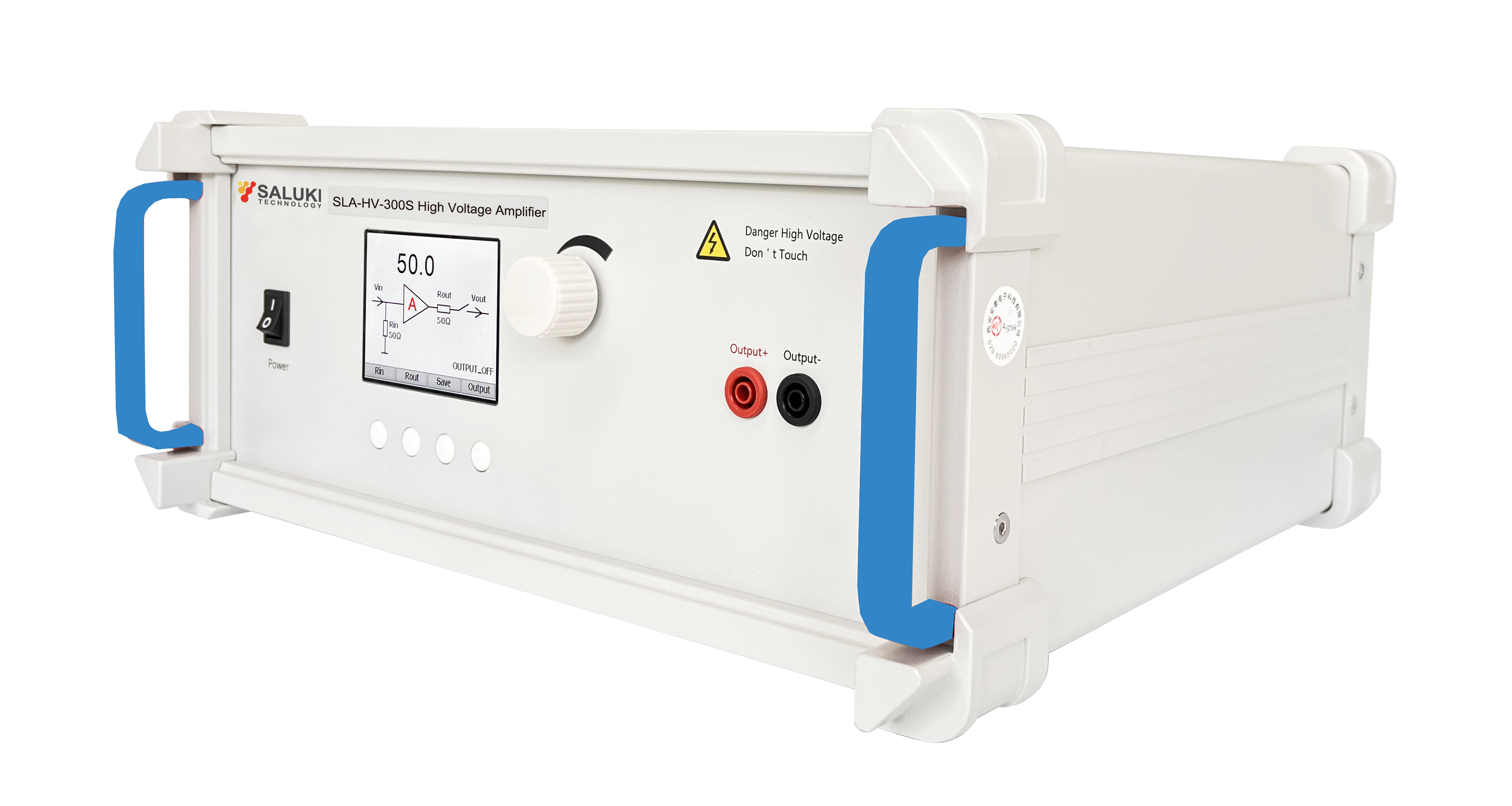

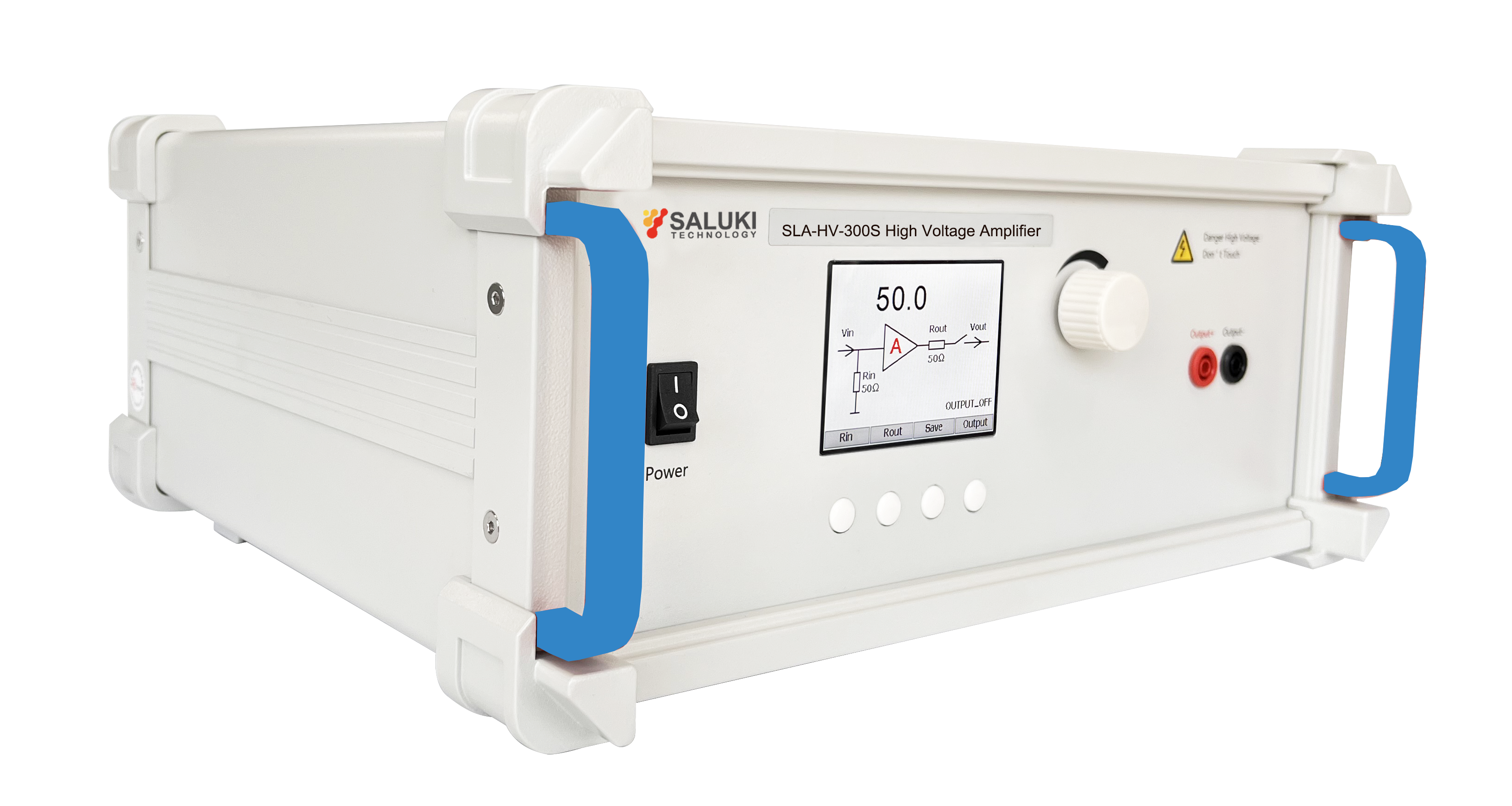

SLA-HV-300S High Voltage Amplifier

SLA-HV-300S is an ideal dual-channel high voltage amplifier for amplifying AC/DC signals. Maximum output 300Vp-p(±150Vp) high voltage, can drive high voltage load. The voltage gain can be adjusted, and the common Settings can be saved with one key, providing a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

Key Features

Single channel

Maximum output voltage: 300Vp-p(±150Vp)

The maximum output current is 120mAp

Bandwidth (-3dB) : DC to 500kHz

Slew rate: ≥334V/μs

  • Ultrasonic Acoustics

    · Wide range, completely covering the ultrasonic frequency range.

    · The amplitude-frequency and phase-frequency characteristics are good, and various signal simulations are provided for ultrasonic experiments.

    · A variety of voltage and power options, widely support a variety of ultrasound equipment.

    · Multi-channel can be customized, which is convenient for users to build various test environments and complete complex experiments.

    · The output impedance matching is adjustable, which is convenient for matching with various ultrasonic probes.

    · Input impedance matching can be adjusted, supporting arbitrary waveform generators of mainstream domestic and foreign brands.

  • Non-Destructive Testing

    · Large bandwidth, voltage, and high-power amplifiers can provide strong support;

    · It has the characteristics of high frequency, high voltage, high step response, and four-quadrant output;

    · Precision numerical control gain, excellent amplitude-frequency and phase-frequency characteristics;

    · Compatible with major brands of function signal sources and arbitrary waveform signal generators;

    · The equipment has its own monitoring port, which can monitor the output voltage of the power amplifier in real time and safely;

    · Save frequently used settings with one key, providing convenient and concise operation options.

  • Underwater Communication

    · Drive and match various sonar systems;

    · High power output, extremely high amplitude-frequency and phase-frequency characteristics;

    · Impedance matching design can be carried out according to customer needs to ensure output characteristics;

    · The gain can be adjusted by numerical control to ensure various simulations of underwater acoustic experiments;

    · Broadband amplification to ensure the integrity of the signal transmitted by underwater acoustic communication;

    · Stable work for a long time, perfect protection, over-current protection, over-voltage protection, over-temperature protection.

  • Underwater Acoustic Transducer Driver

    · Precision numerical control gain, excellent amplitude-frequency and phase-frequency characteristics;

    · Can be customized to facilitate users to build various test environments and complete complex experiments;

    · Can drive 0~100% resistive or non-resistive load, customers can flexibly adjust according to test requirements;

    · Save common settings with one key, providing convenient and concise operation options;

    · Perfect protection functions: overvoltage protection, overcurrent protection, overtemperature protection.

  • Piezo Drive and Control

    · Wide voltage range, high bandwidth to drive various piezoelectric devices;

    · A variety of power options, and can be customized supporting performance;

    · Multi-channel combination, can carry out different test options;

    · Precise numerical control gain, and excellent amplitude-frequency and phase-frequency characteristics;

    · The equipment has its own monitoring port, which can monitor the output voltage and current of the power amplifier in real time and safely;

    · The patented design of impedance matching ensures the signal integrity of driving capacitive loads.

  • Piezo Stack Drive

    · Ultra-high power output, driving various piezoelectric stack models;

    · Optional oscilloscope module, which directly displays the output waveform, output voltage and current on the device screen, and the vertical resolution of the module can reach 14 bits;

    · The device has flat and wide frequency characteristics and high output stability;

    · For more channel requirements, you can choose the master-slave mode, and one master controls multiple slaves;

    · The equipment has its own monitoring port, which can monitor the output voltage and current of the power amplifier in real time and safely;

    · The gain is adjustable by numerical control, and one-key saves frequently used settings, providing convenient and concise operation options.

  • Electromagnetic Field Drive

    · The supporting signal source realizes the amplification of the signal and realizes the improvement of the carrying capacity;

    · Output impedance can be customized according to customer needs to ensure output characteristics;

    · High power output, excellent amplitude-frequency and phase-frequency characteristics;

    · The gain can be adjusted by numerical control, and the frequently used settings can be saved with one key, providing convenient and simple operation options;

    · Compatible with major brands of function signal sources and arbitrary waveform signal generators;

    · It is used in conjunction with university-related experiments to enrich the experimental content.

Model

SLA-HV-300S

Channel

1

Form of output

Single output

Bandwidth(-3dB)

DC~500kHz

Maximum output voltage

300Vp-p(±150Vp)

Maximum output current

60mAp(DC~50Hz)

120mAp(>50Hz)

Maximum output power

18Wp

Fuse

2A/250V

Upper limit of load RL

≥2.45kΩ(DC~50Hz)

≥1.2kΩ(>50Hz)

Slew rate

≥334V/μs

Output resistance

50Ω /2.5kΩ (customizable)

Supply voltage

AC220V±10%, 50Hz

Main Machine

Module No. Item Description
SLA-HV-300S High Voltage Amplifier Bandwidth: DC~500kHz; Maximum output voltage: 300Vp-p(±150Vp); Maximum output current: 120mAp; Slew rate: ≥334V/μs.
