SLA-HV-1600S is an ideal single-channel high voltage amplifier for amplifying AC/DC signals. Maximum output 1600Vp-p (±800Vp) high voltage, can drive high voltage load. The voltage gain can be adjusted, and the common Settings can be saved with one key, providing a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

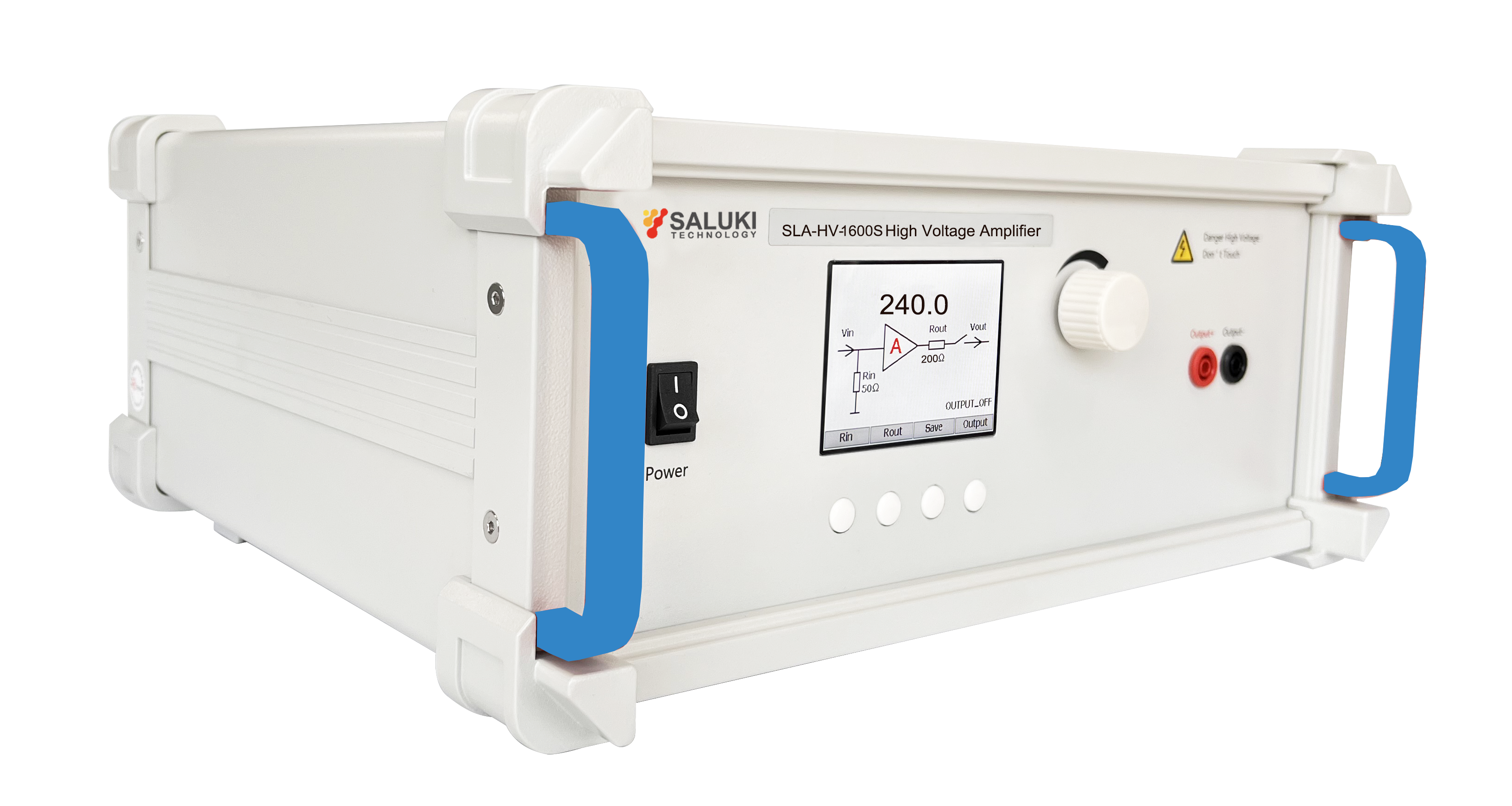

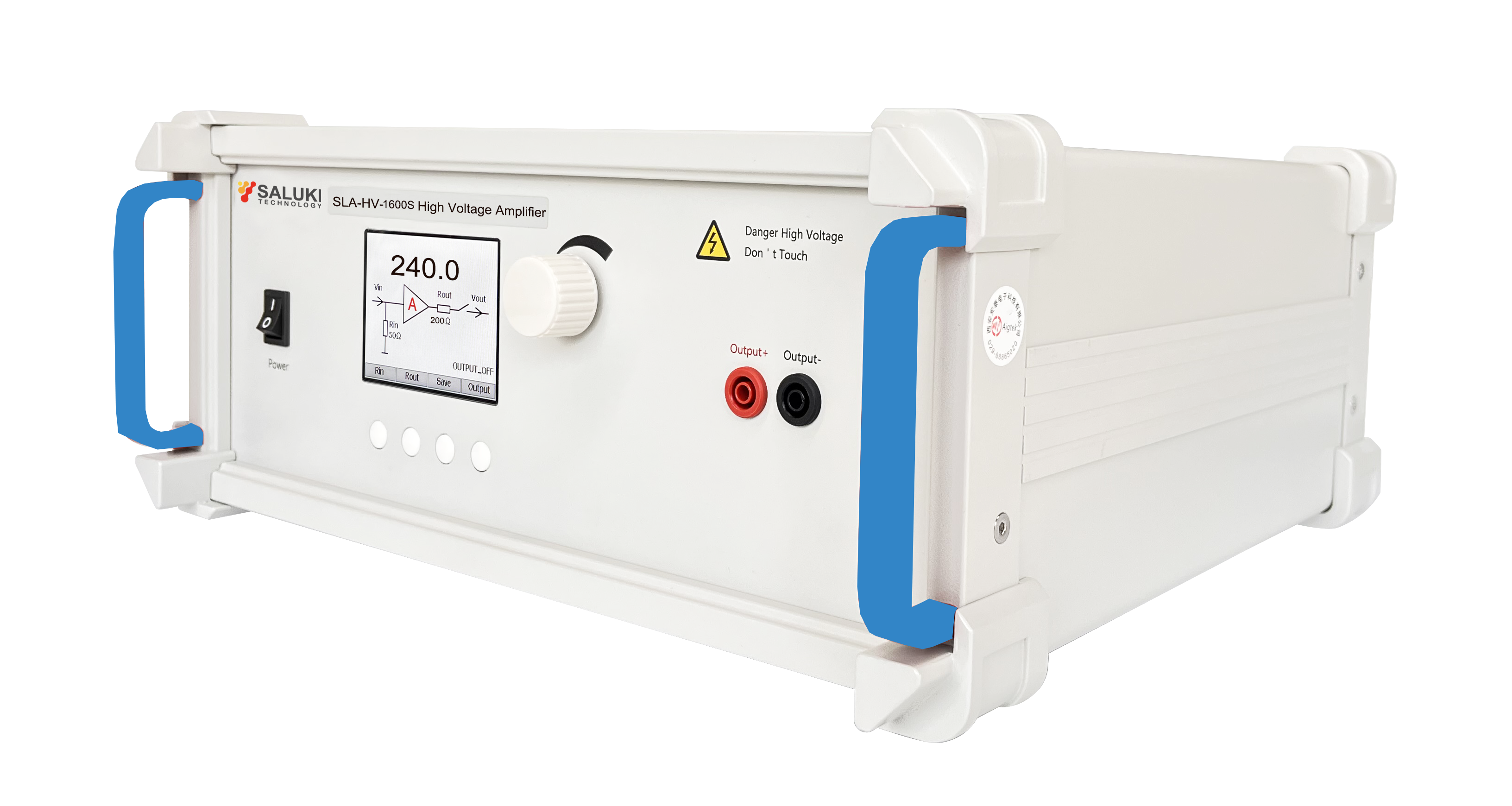

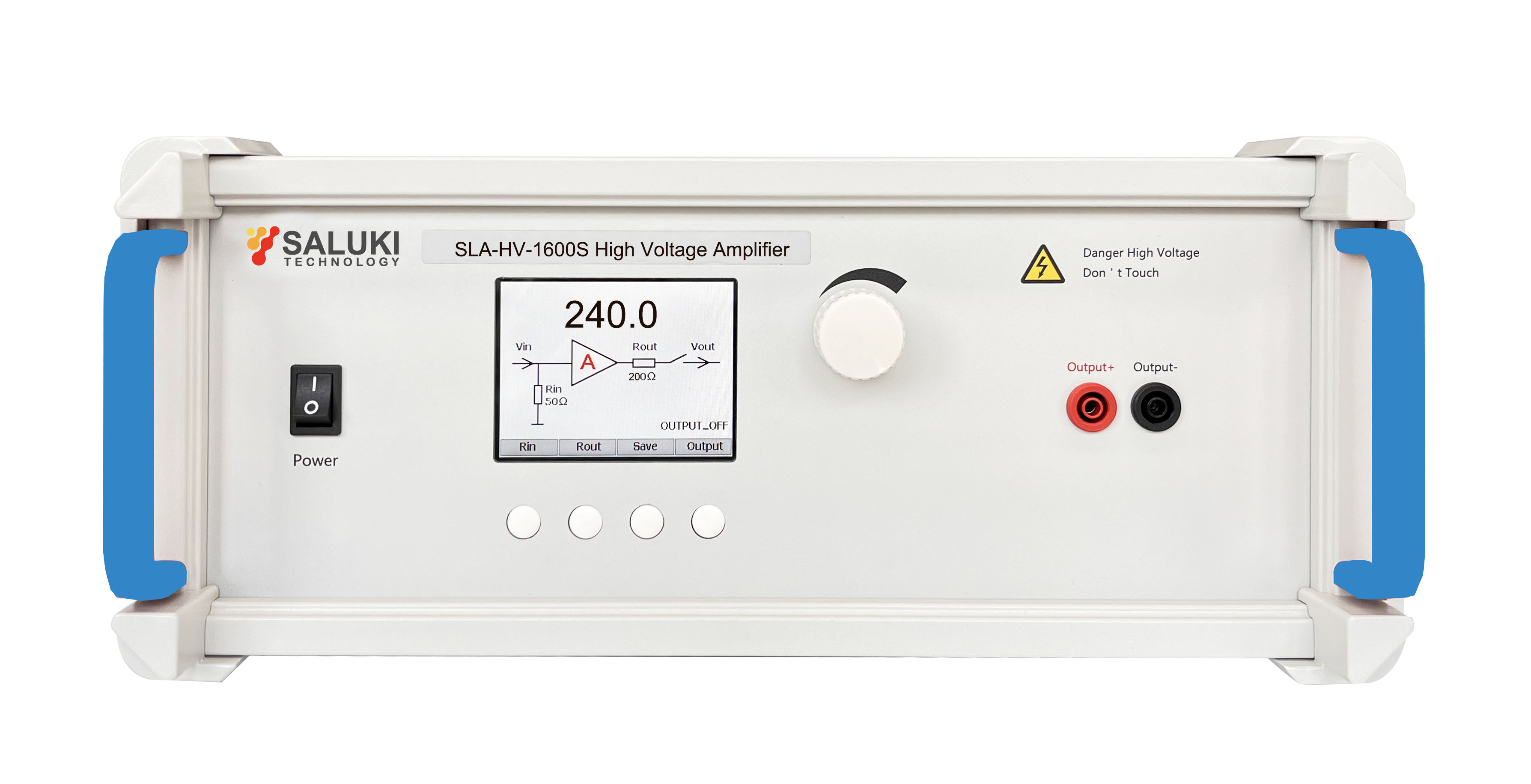

SLA-HV-1600S High Voltage Amplifier
Key Features
Single channel
Maximum output voltage: 1600Vp-p(±800Vp)
The maximum output current is 40mAp
Bandwidth (-3dB) : DC to 150kHz
Slew rate: ≥534V/μs
| Model | SLA-HV-1600S |
| Channel | 1 |
| Form of output | Differential output |
| Bandwidth（-3dB） | DC~150kHz |
| Maximum output voltage | 1600Vp-p（±800Vp） |
| Maximum output current | 20mAp（DC~50Hz） 40mAp（>50Hz） |
| Maximum output power | 32Wp |
| Fuse | 2A/250V |
| Upper limit of load RL | ≥39.8kΩ（DC~50Hz） ≥19.8kΩ（>50Hz） |
| Slew rate | ≥534V/μs |
| Output resistance | 5Ω/50Ω |
| Supply voltage | AC220V±10%, 50Hz |
Main Machine
| Module No. | Item | Description |
| SLA-HV-1600S | High Voltage Amplifier | Bandwidth: DC~150kHz; Maximum output voltage: 1600Vp-p(±800Vp); Maximum output current: 40mAp; Slew rate: ≥534V/μs. |
