SLA-HV-10000 is an ideal dual-channel high voltage amplifier for amplifying AC/DC signals. Maximum output 10kVp-p(±5kVp) high voltage, can drive high voltage load. The voltage gain can be adjusted, and the common Settings can be saved with one key, providing a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

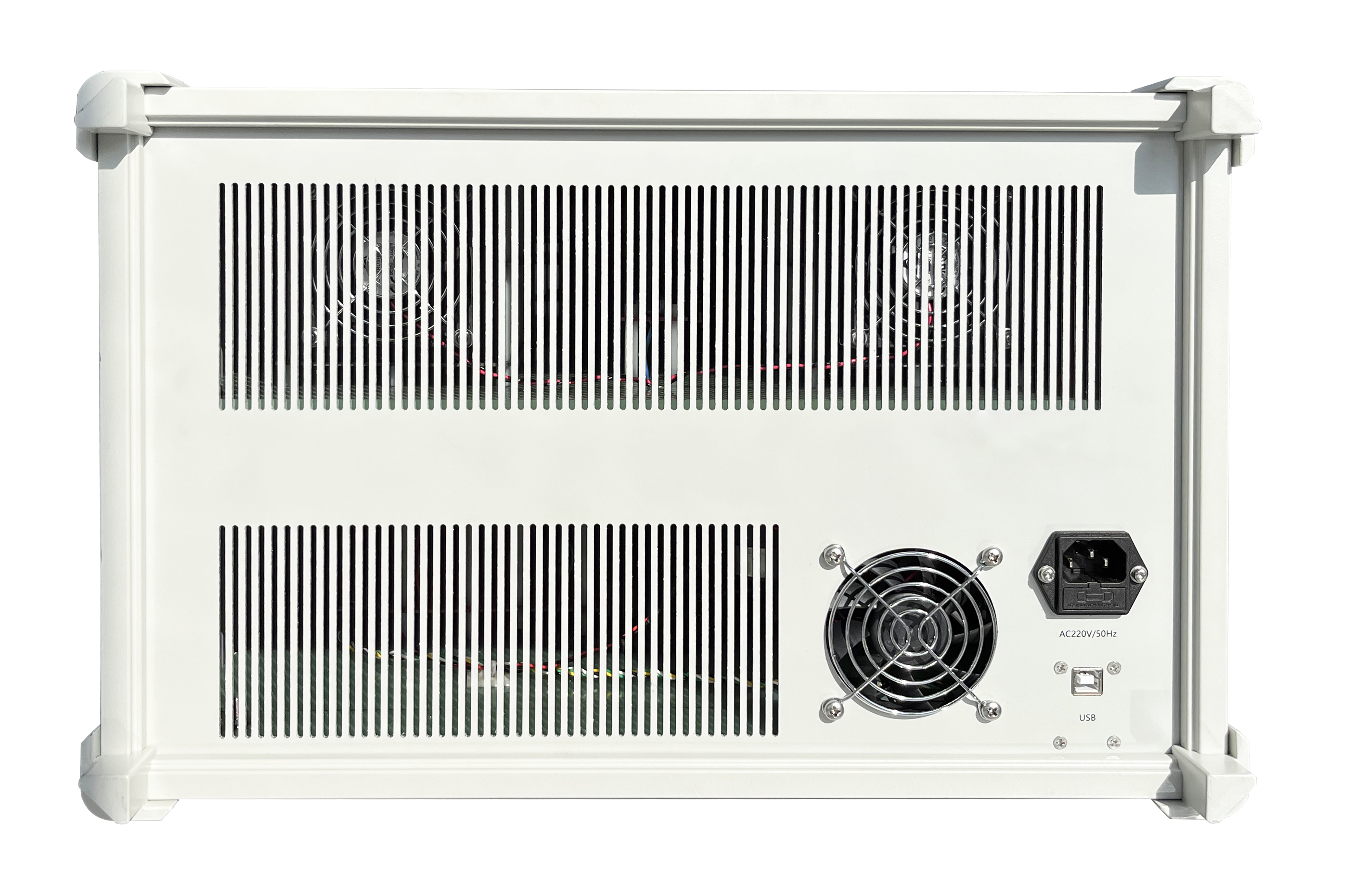

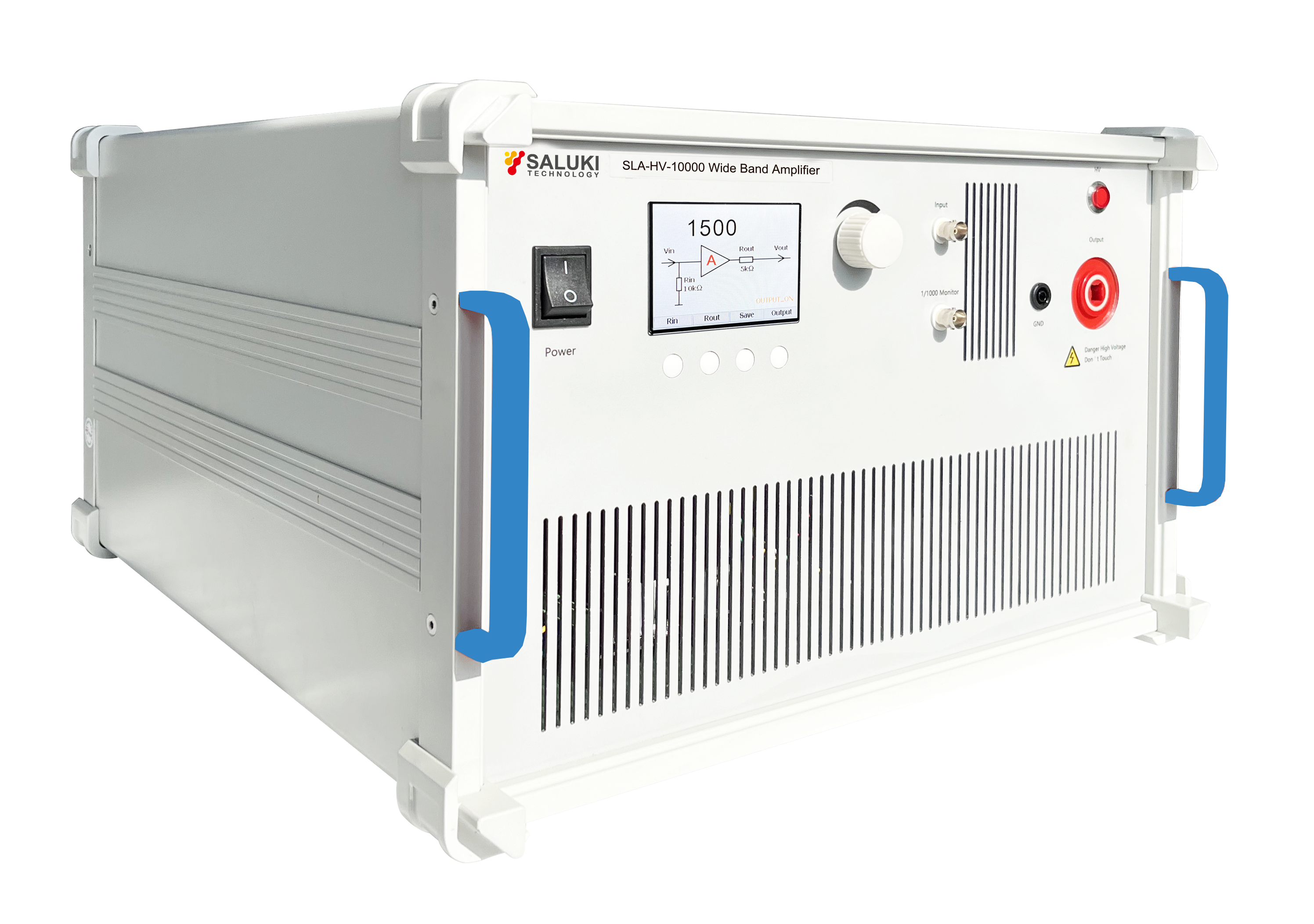

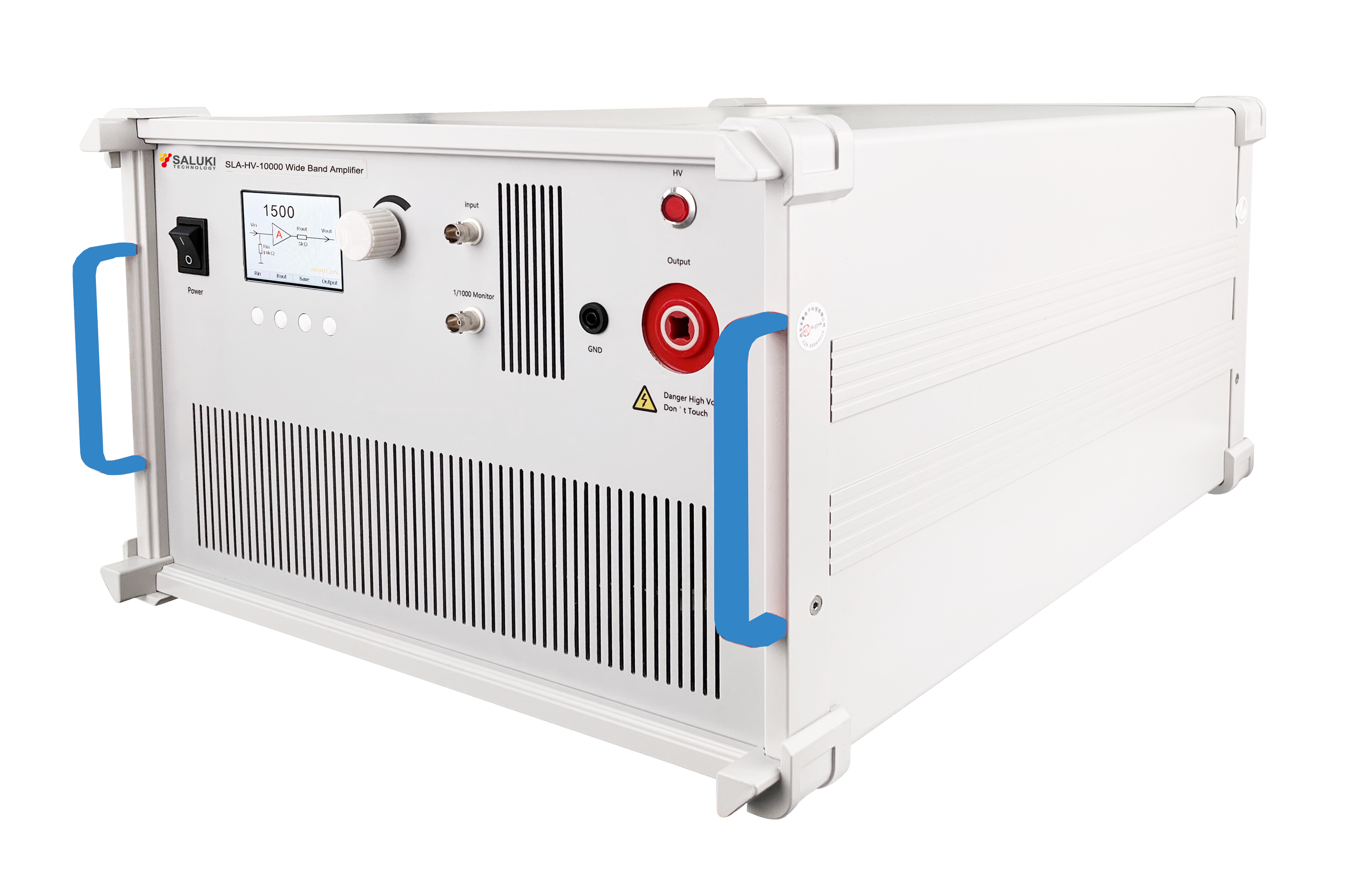

SLA-HV-10000 High Voltage Amplifier
Key Features
Signal channel
Maximum output voltage: 10kVp-p(±5kVp)
The maximum output current is 20mAp
Bandwidth (-3dB) : DC to 5kHz
Slew rate: ≥111V/μs
-
Ultrasonic Acoustics
· Wide range, completely covering the ultrasonic frequency range.
· The amplitude-frequency and phase-frequency characteristics are good, and various signal simulations are provided for ultrasonic experiments.
· A variety of voltage and power options, widely support a variety of ultrasound equipment.
· Multi-channel can be customized, which is convenient for users to build various test environments and complete complex experiments.
· The output impedance matching is adjustable, which is convenient for matching with various ultrasonic probes.
· Input impedance matching can be adjusted, supporting arbitrary waveform generators of mainstream domestic and foreign brands.
-
Material Testing
· The supporting signal source realizes the amplification of the signal and realizes the improvement of the carrying capacity;
· 1/1000 voltage detection port, which can monitor the output voltage of the power amplifier in real time and safely;
· Precise numerical control gain, precise control of output voltage;
· Ultra-high voltage output, testing various dielectric elastomer materials;
· Save common settings with one key, providing convenient and concise operation options;
· Perfect protection functions: overvoltage protection, overcurrent protection, overtemperature protection.
-
Dielectric Elastomer Testing
· The device has flat and wide frequency characteristics, and can maintain a high stable output at the same time;
· The input resistance can be switched between high and low levels, with strong matching ability and wide application range;
· Precision numerical control gain, excellent amplitude-frequency and phase-frequency characteristics;
· Multi-channel output, master-slave output, etc. can be customized to meet the needs of multi-channel applications;
· The equipment has its own monitoring port, which can monitor the output voltage of the power amplifier in real time and safely;
· Save frequently used settings with one key, providing convenient and concise operation options.
-
Semiconductor Testing
· The device has flat and wide frequency characteristics and high output stability;
· The output voltage range is wide and the voltage change rate is fast, which can meet the application requirements in various environments;
· Two levels of output resistance can be switched. The input resistance can be switched between high and low levels, with strong matching ability and wide application range;
· Precision numerical control gain, excellent amplitude-frequency and phase-frequency characteristics;
· The equipment has its own monitoring port, which can monitor the output voltage of the power amplifier in real time and safely;
· Save frequently used settings with one key, providing convenient and concise operation options.
| Model | SLA-HV-10000 |
| Channel | 1 |
| Form of output | Single output |
| Bandwidth（-3dB） | DC to 5kHz |
| Maximum output voltage | 10kVp-p(±5kVp) |
| Maximum output current | 10mAp（DC~50Hz） 20mAp（>50Hz） |
| Maximum output power | 100Wp |
| Fuse | 4A/250V |
| Upper limit of load RL | ≥495kΩ（DC~50Hz） ≥245kΩ（>50Hz） |
| Slew rate | ≥111V/μs |
| Output resistance | 5kΩ /200kΩ (switchable） |
| Supply voltage | AC220V±10%,50Hz |
Main Machine
| Module No. | Item | Description |
| SLA-HV-10000 | High Voltage Amplifier | Bandwidth: DC~5kHz; Maximum output voltage: 10kVp-p(±5kVp); Maximum output current: 20mAp; Slew rate: ≥111V/μs. |
