The SLA-30-810 is an ideal power amplifier for amplifying AC and DC signals. Maximum output 810Wp power, can drive power type load. The gain control can be adjusted, and the common Settings can be saved with one key, providing you with a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

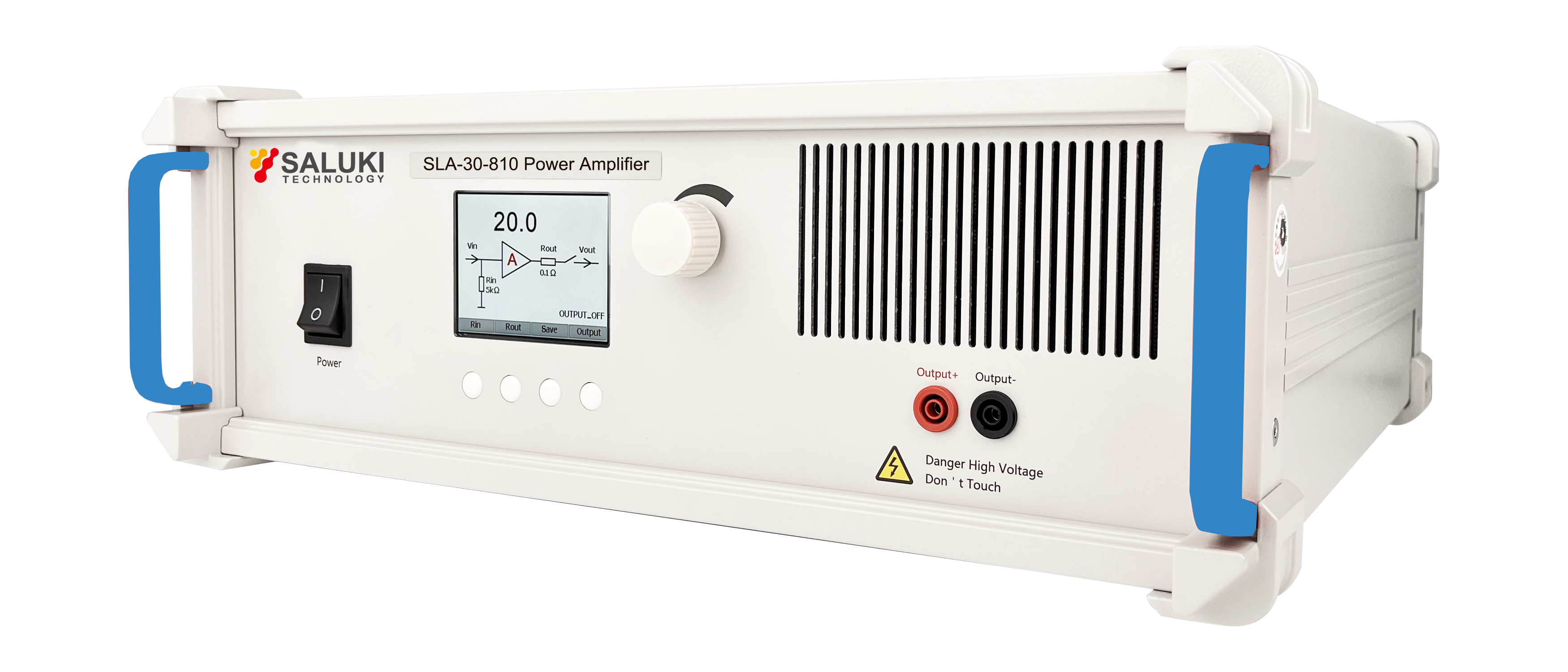

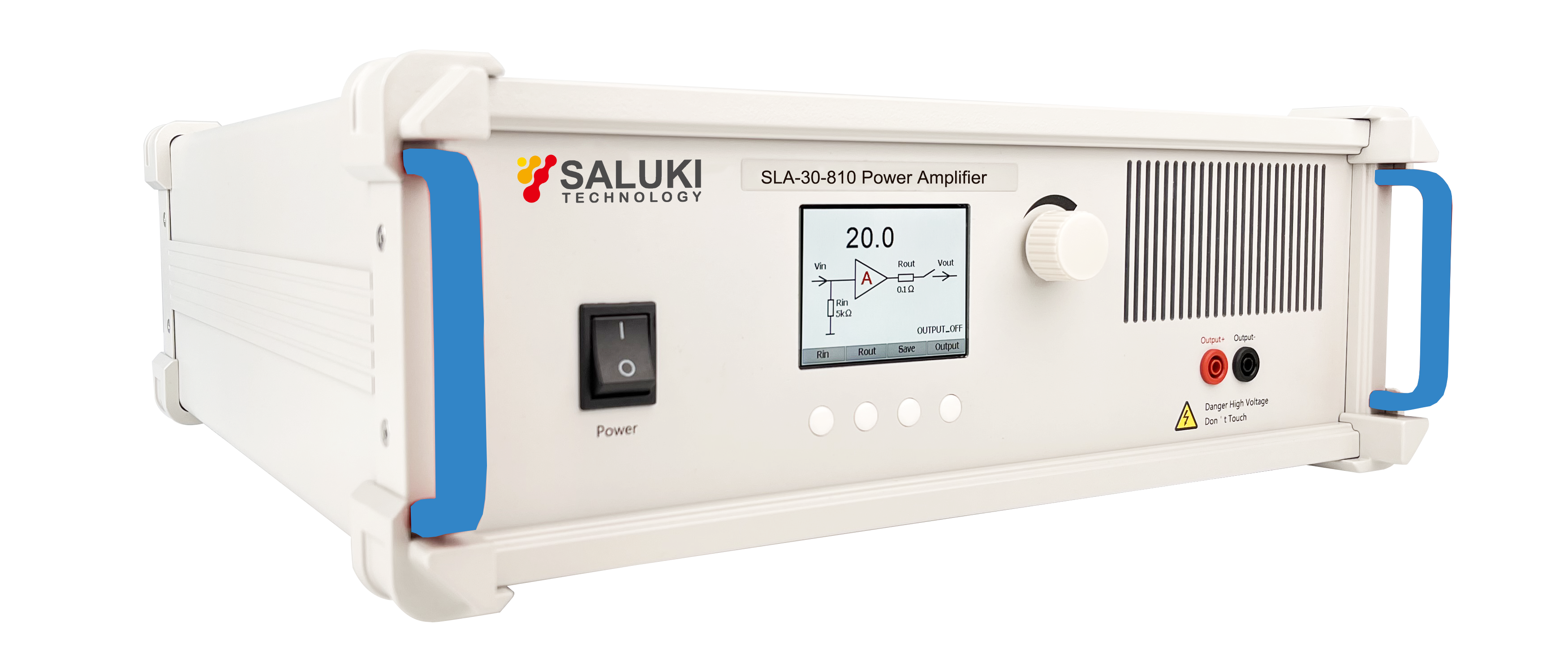

SLA-30-810 Power Amplifier
Key Features
Maximum output voltage: 90Vp-p(±45Vp)
Maximum output current: 18Ap
Bandwidth （-3dB）: DC~30kHz
Slew rate: ≥6V/μs
| Model | SLA-30-810 |
| Form of output | Single output |
| Bandwidth（-3dB） | DC~30kHz |
| Maximum output voltage | 90Vp-p(±45Vp) |
| Maximum output current | 9Ap（DC~50Hz） 18Ap（>50Hz） |
| Maximum output power | 810Wp |
| Fuse | 10A/250V |
| Voltage gain | x0~30（0.1 step/1 step） |
| Upper limit of load RL | ≥4.75Ω（DC~50Hz） ≥2.25Ω（>50Hz） |
| Slew rate | ≥6V/μs |
| Output resistance | 0.25Ω |
| Input resistance | 50Ω/10kΩ |
| Input amplitude | 0~10Vp-pMAX |
| Output voltage error | ≤±3%FS@1kHz |
| Total harmonic distortion （THD） | ≤0.5%@1kHz，90Vp-p |
| Signal-noise ratio(SNR) | ≥80dB |
| Output connector | 4mm banana socket |
| Supply voltage | AC110V~240V，50/60Hz |
Main Machine
| Module No. | Item | Description |
| SLA-30-810 | Power Amplifier | Bandwidth: DC~30kHz; Maximum output voltage: 90Vp-p(±45Vp); Maximum output current: 18Ap; Slew rate: ≥6V/μs. |
