The SLA-100-720 is an ideal power amplifier for amplifying AC and DC signals. Maximum output 720Wp power, can drive power type load. The gain control can be adjusted, and the common Settings can be saved with one key, providing you with a convenient and simple choice of operation. It can be used with the mainstream signal generator to achieve perfect signal amplification.

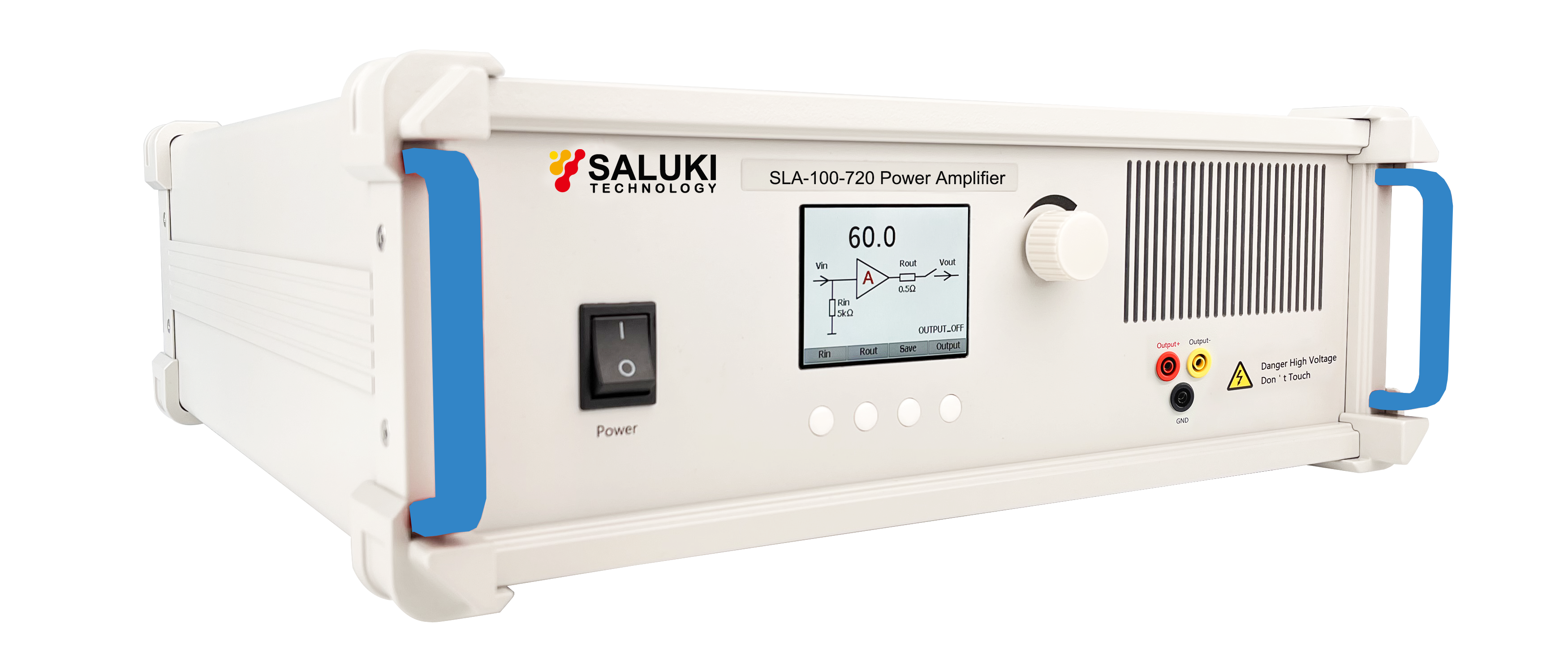

SLA-100-720 Power Amplifier
Key Features
Maximum output voltage: 180Vp-p(±90Vp)
Maximum output current: 8Ap
Bandwidth (-3dB): DC~100kHz
Slew rate: ≥40V/μs
-
Small Signal Amplification
· The maximum gain is 60dB, which can amplify the tiny signal and then monitor it, so as to observe the voltage signal more clearly and effectively;
· Independent linear power supply to reduce noise interference;
· Supporting use of university-related experiments to enrich the experimental content;
· The maximum operating frequency point can reach 100MHz, which meets the test requirements at high frequencies;
· The maximum output voltage can reach 2Vpp to meet the monitoring needs;
· Equipment parameters can be customized to meet individual customization needs.
-
Semiconductor Testing
· The device has flat and wide frequency characteristics and high output stability;
· The output voltage range is wide and the voltage change rate is fast, which can meet the application requirements in various environments;
· Two levels of output resistance can be switched. The input resistance can be switched between high and low levels, with strong matching ability and wide application range;
· Precision numerical control gain, excellent amplitude-frequency and phase-frequency characteristics;
· The equipment has its own monitoring port, which can monitor the output voltage of the power amplifier in real time and safely;
· Save frequently used settings with one key, providing convenient and concise operation options.
-
Piezo Drive and Control
· Wide voltage range, high bandwidth to drive various piezoelectric devices;
· A variety of power options, and can be customized supporting performance;
· Multi-channel combination, can carry out different test options;
· Precise numerical control gain, and excellent amplitude-frequency and phase-frequency characteristics;
· The equipment has its own monitoring port, which can monitor the output voltage and current of the power amplifier in real time and safely;
· The patented design of impedance matching ensures the signal integrity of driving capacitive loads.
-
Electromagnetic Field Drive
· The supporting signal source realizes the amplification of the signal and realizes the improvement of the carrying capacity;
· Output impedance can be customized according to customer needs to ensure output characteristics;
· High power output, excellent amplitude-frequency and phase-frequency characteristics;
· The gain can be adjusted by numerical control, and the frequently used settings can be saved with one key, providing convenient and simple operation options;
· Compatible with major brands of function signal sources and arbitrary waveform signal generators;
· It is used in conjunction with university-related experiments to enrich the experimental content.
-
Wireless Power Transfer
· Precise numerical control gain, and excellent amplitude-frequency and phase-frequency characteristics;
· Input and output impedance matching is adjustable to match the user’s signal source and load;
· A variety of power options, and can be customized supporting performance;
· The gain can be adjusted by numerical control, and the frequently used settings can be saved with one key, providing convenient and concise operation options;
· Compatible with major brands of function signal sources and arbitrary waveform signal generators;
· Perfect protection functions: overvoltage protection, overcurrent protection, overtemperature protection.
Model | SLA-100-720 |
Form of output | Differential output |
Bandwidth(-3dB) | DC~100kHz |
Maximum output voltage | 180Vp-p(±90Vp) |
Maximum output current | 4Ap(DC~50Hz) 8Ap(>50Hz) |
Maximum output power | 720Wp |
Fuse | 8A/250V |
Voltage gain | x0~60(0.1 step/1 step) |
Upper limit of load RL | ≥22Ω(DC~50Hz) ≥10.75Ω(>50Hz) |
Slew rate | ≥40V/μs |
Output resistance | 0.5Ω/100Ω(customizable) |
Input resistance | 50Ω/5kΩ |
Input amplitude | 0~10Vp-pMAX |
Output voltage error | ≤±3%FS@1kHz |
Total harmonic distortion (THD) | ≤0.1%@1kHz,90Vp-p |
Signal-noise ratio(SNR) | ≥80dB |
Output connector | 4mm banana socket |
Supply voltage | AC220V±10%,50Hz |
Main Machine
Module No. | Item | Description |
SLA-100-720 | Power Amplifier | Bandwidth: DC~100kHz; Maximum output voltage: 180Vp-p(±90Vp); Maximum output current: 8Ap; Slew rate: ≥40V/μs. |
