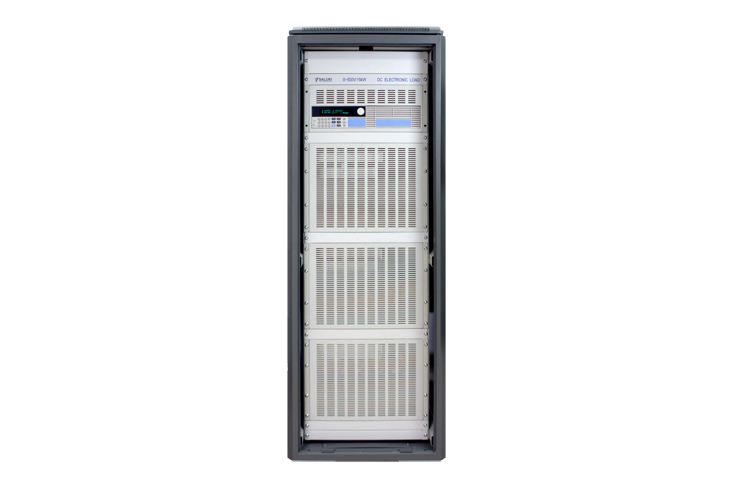

The new SEL8 series programmable DC electronic load is a new generation product designed by Saluki Technology. Incorporating high-performance chips, the SEL8 series delivers high speed and high accuracy with a resolution of 1mV and 1mA (basic accuracy is 0.03% and basic current rise speed is 2.5 A/μs).
SEL8 series have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar cell and fuel cell etc. test and measurement applications.
** Customization available upon request **
** Standard Lead Time: within 4 weeks **
Key Features
10 kW high rated power
Six high speed operation modes: CC, CR, CV, CW, CC+CV, CR+CV
Over current, over voltage, over power, over heating and polarity reversal protection
Battery test and short-circuit test functions
Available of dynamic testing and rising edge and falling edge setting
High-luminance vacuum fluorescent display (VFD) screen with two line, four channel display
Intelligent fan system will automatically activate based on changing ambient temperatures
Soft-start time setting, activating the power supply in accordance with the set voltage value
Support external trigger on either input or output
External current waveform monitor terminal output terminal
Support remote voltage compensation and multi-data storage
Power-on-self-test, software calibration and standard rack mountable, available with RS232/RS485/USB serial interfaces
