SDT0P014020A is a wide band power detector and its frequency range from 0.01 to 40 GHz.

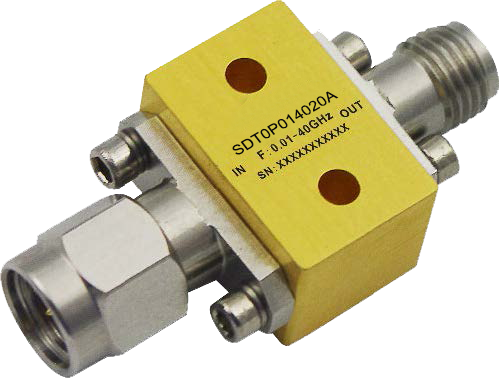

SDT0P014020A Wide Band Power Detector
Key Features
Wide Band
High Sensitivity
Low VSWR
| Frequency Range | 0.01 to 40 GHz |
| VSWR(typ.) | 1.5:1 |
| Tss | -25 dBm |
| Sensitivity(typ.) | 0.3 Mv/ uw |
| Input Power | 23 dBm |
| Output Polarity | Negative(-) |
| Weight | 0.4 Max. ounces |
| Input / Output Connectors | 2.92mm-Male / SMA-Female |
| Material | Aluminum |
| Finish | Gold Plated |
| Operational Temperature(°C) | -40ºC~+85º |
| Storage Temperature (°C) | -50ºC~+105ºC |
| Altitude | 30,000 ft. (Epoxy Sealed Controlled environment) 60,000 ft. 1.0psi min (Hermetically Sealed Un-controlled environment)（Optional） |
| Vibration | 25g RMS(15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35°C, 95%RH at 40°C |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
Main Module
| Module No. | Item | Description |
| SDT0P014020A | Wide Band Power Detector | Frequency range: 0.01 to 40 GHz; VSWR: 1.5:1; Tss: -25 dBm. |
