CurrentHome>Mechanical Calibration Kits

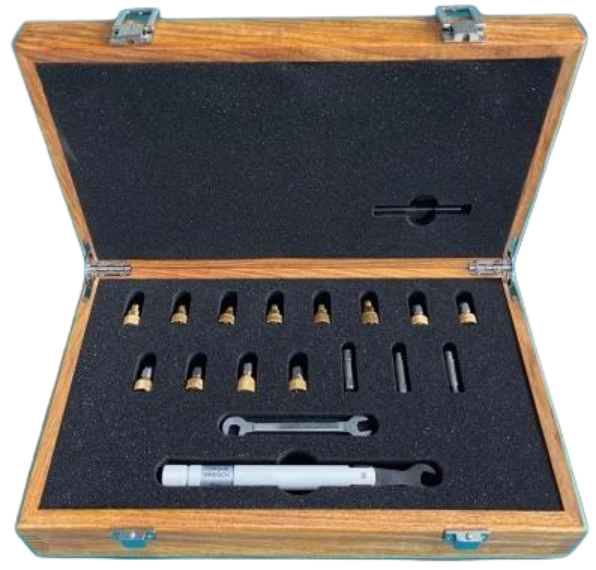

SCKCL67A1-1.85 High Precision Calibration Kit

Overview Specifications Ordering Resources

High Precision Calibration Kit, DC to 67GHz, 1.85mm, 50Ω, 16-piece Set

    • Calibrate the vector network analyzer for 1.85mm interfaces

    • Includes adapters and a torque wrench, allowing for changes in port type and ensuring consistently reliable connections.



  Unit Price: US$ 11,740

  3-4 Weeks Delivery



♦ Click to view the selection guide.

♦ Need technical support or a custom solution? Contact our application engineers: saluki@salukitec.com.

♦ To request a quotation, please contact sales@salukitec.com or click “Contact Us” to leave a message.

Key Features

The 1.85mm Coaxial port

Broadband: DC~67GHz

High-performance

Multi-short-circuit form, fixed load calibration

  • We offer two payment methods .



    •  Send your requirements to sales@salukitec.com



    •  Select your preferred payment method



    •  Receive the Proforma Invoice (PI) or Credit Card payment link



    •  Make payment



    •  Goods are shipped

  • Saluki Calibration Kits – Trusted by Industry Leaders

    Typical Users of Saluki Calibration Kits



    •  The National Physical Laboratory (NPL)（UK）



    •  Missouri University of Science and Technology



    •  Boise State University



    •  University of South Florida



    •  Nagoya University



    •  Rutgers University



    •  Yonsei University



    •  Sejong University



    •  TEKTRONIX, INC.



    •  ERAVANT



    •  NVIDIA

    ……

  • Common Q&A



    Q: Can I use it in Keysight VNA?

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.



    Q: Can I use it to R&S or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.



    Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

DC to 67 GHz
Specifications

•  Open: ±2°（10MHz-50GHz）; ±3°（50GHz-67GHz）

•  Short:

Short1：±2°（10MHz-67GHz）;

Short2：±2.5°（35GHz-67GHz）;

Short3：±2.5°（45GHz-67GHz）;

Short4：±2.5°（35GHz-67GHz）.

•  Load: VSWR

≥36dB（10MHz-10GHz）

≥35dB（10GHz-20GHz）

≥31dB（20GHz-35GHz）

•  Adaptor: VSWR

≥33dB（10MHz-4GHz）

≥24dB（4GHz-26.5GHz）

≥22dB（26.5GHz-50GHz）

≥20dB（50GHz-67GHz）

•  3.5mm Torque spanner: Moment 90 N.cm±2.7 N.cm
Impedance

50 ohm

Standard Package

No. Item Qty.
1 Open: 1.85mm (M) 1
2 Open: 1.85mm (F) 1
3 Short: 1.85mm (M)1 1
4 Short: 1.85mm (M)2 1
5 Short: 1.85mm (M)3 1
6 Short: 1.85mm (M)4 1
7 Short: 1.85mm (F)1 1
8 Short: 1.85mm (F)2 1
9 Short: 1.85mm (F)3 1
10 Short: 1.85mm (F)4 1
11 Load: 1.85mm (M) 1
12 Load: 1.85mm (F) 1
13 1.85mm JJ adaptor 1
14 1.85mm JK adaptor 1
15 1.85mm KK adaptor 1
16 Torque Spanner 1
17 Wrench 1
