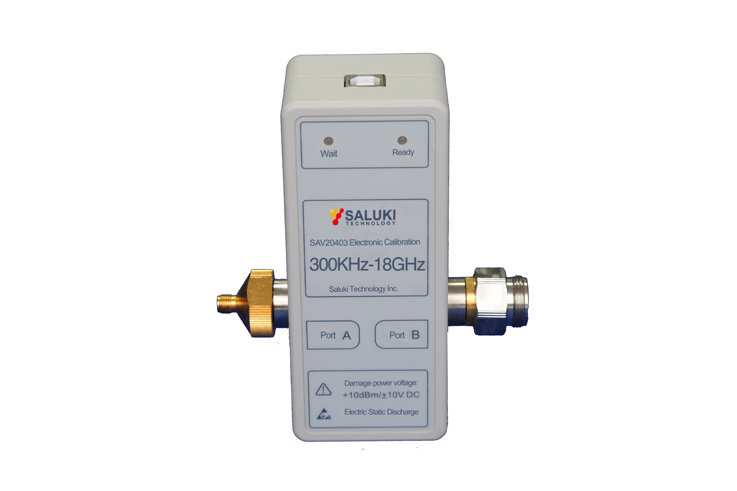

SAV20403 Electronic Calibration Module

Overview Specifications Ordering Resources

SAV20403 E-cal kit covers a wide frequency range from 10MHz to 26.5GHz, and provide good calibration performance. It can achieve more precise and accurate measurements with this 2-port module for 3.5mm connectors. SAV20403 enjoys the benefit of easy-to-use, quick calibration and good performance. It is compatible with Saluki VNAs as well as Keysight ENA and PNA series VNA.

Compared to the mechanical calibration kits, the electronic calibration kits have the advantages of convenient connection, fast calibration speed, low artificial error, low loss, comparable precision and male and female connector.

Key Features

Wide frequency range from 10MHz to 26.5GHz

Standard F/M connector, optional FF / MM connector

Powered up and communicate via USB port

Precision 2-port microwave ECal module with high accuracy

Compatible with Saluki VNAs and Keysight ENA & PNA series VNAs

We offer two payment methods .

• Send your requirements to sales@salukitec.com

• Select your preferred payment method

• Receive the Proforma Credit Card payment link

• Make payment

• Goods are shipped
Saluki Calibration Kits – Trusted by Industry Leaders

Typical Users of Saluki Calibration Kits

• The National Physical Laboratory (NPL)（UK）

• Missouri University of Science and Technology

• Boise State University

• University of South Florida

• Nagoya University

• Rutgers University

• Yonsei University

• Sejong University

• TEKTRONIX, INC.

• ERAVANT

• NVIDIA

……
Common Q&A

Q: Can I use it in Keysight VNA?

A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.

Q: Can I use it to R&S or other brand VNA?

A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

Q: What is the warranty time?

A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.

Q: Who will afford shipping cost for return?

A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Directivity	• 10MHz – 500MHz: ≥ 41dB • 500MHz – 2GHz: ≥ 51dB • 2GHz – 10GHz: ≥ 46dB • 10GHz – 20GHz: ≥ 40dB • 20GHz – 26.5GHz: ≥ 36dB
Source Match	• 10MHz – 500MHz: ≥ 35dB • 500MHz – 2GHz: ≥ 41dB • 2GHz – 10GHz: ≥ 38dB • 10GHz – 20GHz: ≥ 37dB • 20GHz – 26.5GHz: ≥ 33dB
Load Match	• 10MHz – 500MHz: ≥ 31dB • 500MHz – 2GHz: ≥ 38dB • 2GHz – 10GHz: ≥ 45dB • 10GHz – 20GHz: ≥ 40dB • 20GHz – 26.5GHz: ≥ 36dB
Transmission Tracking	• 10MHz – 500MHz: ≤ 0.07dB • 500MHz – 2GHz: ≤ 0.08dB • 2GHz – 10GHz: ≤ 0.08dB • 10GHz – 20GHz: ≤ 0.10dB • 20GHz – 26.5GHz: ≤ 0.14dB
Reflection Tracking	• 10MHz – 500MHz: ≤ 0.05dB • 500MHz – 2GHz: ≤ 0.05dB • 2GHz – 10GHz: ≤ 0.08dB • 10GHz – 20GHz: ≤ 0.12dB • 20GHz – 26.5GHz: ≤ 0.13dB
Max. Input Power	+10dBm
Physical Port	3.5mm (standard M/F, optional M/M or F/F)

Main Machine

Module No.	Item	Description
SAV20403	Electronic Calibration Module	10 MHz to 26.5 GHz, 3.5mm (female/male)

Options

Module No.	Item	Description
20403-001	3.5mm KK adaptor	/
20403-002	3.5mm JJ adaptor	/
20403-003	SMA connector torque wrench	To fix the connection
20403-004	8GB U disk	To store the drive and software kit
