S87234 Series USB Peak and Average Power Sensor

Overview Specifications Ordering Resources

S87234D/E/F/L USB peak and average power sensor is a diode-detection broadband power measurement instrument based on the USB 2.0 interface, which can realize accurate average power measurement, pulse power measurement with large dynamic range and CCDF statistical measurement analysis. The frequency range covers 50MHz to 67GHz, the highest power accuracy can reach 0.2dB, the video bandwidth is ≥30MHz, and the rise/fall time is ≤13ns.

S87234 series can flexibly expand the power measurement function of electronic measuring instruments and test systems, and is mainly used for field testing, production line testing and system integration.

Key Features

High frequency up to 67GHz

Excellent dynamic range and accuracy

CCDF statistical measurement analysis

Internal zero calibration function

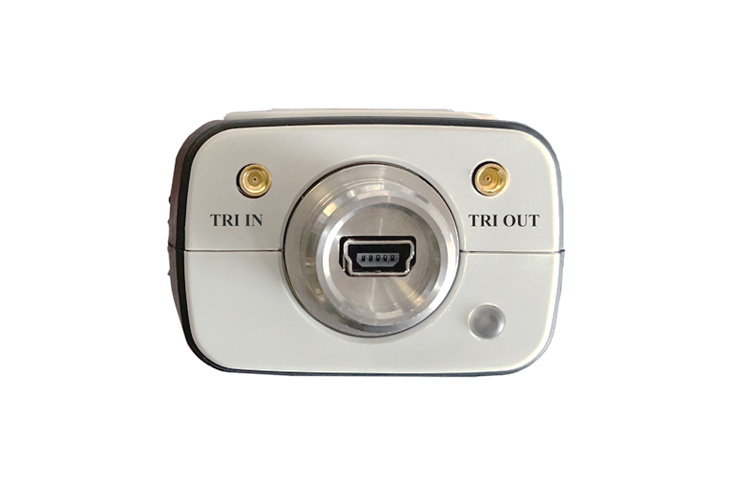

Built-in trigger input function

Automatic measurement function, including 16 pulse power and time parameters

Excellent measurement speed, up to 50,000 readings per second

Built-in radar and wireless presets

External trigger buffer measurement

Small size and easy to carry

Frequency Range	S87234D: 50 MHz to 18 GHz, S87234E: 50 MHz to 26.5 GHz, S87234F: 50 MHz to 40 GHz, S87234L: 500 MHz to 67 GHz
Power Range	Normal: • -30dBm to +20dBm (50MHz – 500MHz) • -35dBm to +20dBm (≥ 500MHz) Average: • -45dBm to +20dBm
Damage Level	• +23dBm (average power) • +30dBm (peak power, duration <1us)
Rise/Fall Time	≤ 13ns
Sampling Rate	80M Samples/sec, continuous
Video Bandwidth	≥ 30MHz
Single Capture Bandwidth	≥ 30MHz
Pulse Width	Minimum 50ns
Accuracy	S87234D: ≤ ±0.20dB (±4.5%) S87234E: ≤ ±0.25dB (±6.0%) S87234F: ≤ ±0.30dB (±6.7%) S87234L: ≤ ±0.33dB (±7.9%)
	(Note: see more detail information of optional sensors in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description
S87234D	Peak and Average Power Sensor	50 MHz to 18 GHz
S87234E	Peak and Average Power Sensor	50 MHz to 26.5 GHz
S87234F	Peak and Average Power Sensor	50 MHz to 40 GHz
S87234L	Peak and Average Power Sensor	500 MHz to 67 GHz

Options

Module No.	Item	Description
S87234-H01	USB power cable	4.5 meter
S87234-H02	Trigger cable	4.5 meter
S87234-H03	Certificate of calibration	/
S87234-H05A	Hard carrying case	Can carry one set of products
S87234-H05B	Hard carrying case	Can carry two sets of products

Document

S87234 Series USB Power Sensor Datasheet
