S3657 series vector network analyzer is suitable for wireless communication, cable TV, education, and automotive electronics, and can be used for performance measurement of RF components such as filters, amplifiers, antennas, cables, cable TV taps, etc. This product adopts the Windows operating system; Equipped with error calibration function, time-domain function, fixture simulator function, automatic fixture removal function, and advanced time-domain analysis function; It has various display formats such as logarithmic amplitude, linear amplitude, impedance, standing wave, phase, group delay, Smith circle diagram, polar coordinates, etc; Capable of displaying multiple channels and windows; Equipped with USB interface, LAN interface, HDMI interface, and DP interface. It can quickly and accurately measure the amplitude, phase, and group delay characteristics of the S parameter of the tested object, and has efficient and powerful error correction ability.

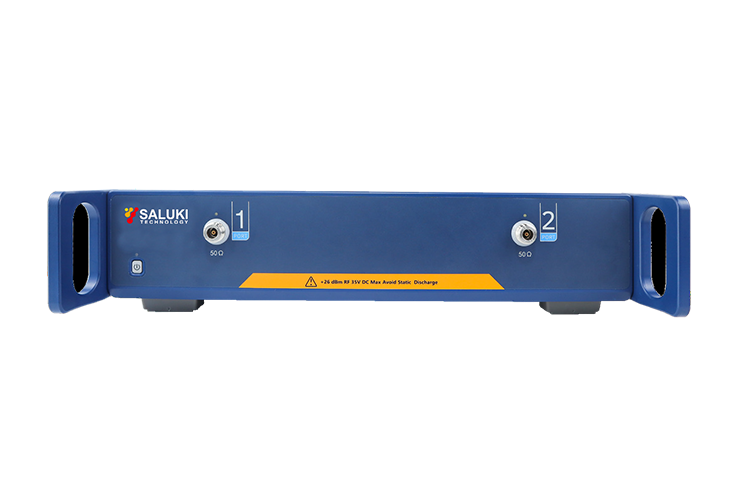

S3657 Series Vector Network Analyzer
Key Features
Frequency range from 100kHz to 4.5GHz and 100kHz to 9GHz
140dB wide dynamic range, accurate measurement on high rejection ratio devices
Ultra-low trace noise which provide higher test accuracy
Powerful data analysis functions, such as ripple test, bandwidth test and limit test, convenient for user to judge the conformity and improves the test efficiency
Time domain analysis function as the standard configuration
Fixture simulator can simulate various R&D situations to rapidly get the real-time test results
LAN and GPIB interface, capable of remote control and system interconnection, 4 USB interfaces
| Frequency Range | S3657A/AM: 100 kHz to 4.5 GHz, S3657B/BM/BS: 100 kHz to 9 GHz |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | ±5×10-6 (23°C ± 3°C) |
| Dynamic Range | Up to 140dB
|
| IF Bandwidth | 1MHz – 2MHz |
| Number of Built-In Ports | 2-port (standard), 4-port (option) |
| Measurement Fields | Frequency domain and Time domain |
| Display Format | Logarithmic amplitude, linear range, standing wave, phase, group delay, smith chart, polar diagram |
| Power Supply | 50 Hz 220 V AC / 60 Hz 110 V AC |
| Power Consumption | 150 W |
| Display | 12.1-inch high brightness LCD |
| Dimension | S3657A/B/BS: 426 (W) × 221.5 (H) × 250 (D) mm S3657AM/BM: 426 (W) × 88.1 (H) × 500 (D) mm |
| Weight | S3657A/B/BS: 13.5 kg S3657AM/BM: 12.5 kg |
(Note: see more detail information in the ‘Resource’ – ‘Purchase Guide’) |
Main Machine
| Module No. | Item | Description |
| S3657A/AM | Vector Network Analyzer | 100 kHz to 4.5 GHz |
| S3657B/BM/BS | Vector Network Analyzer | 100 kHz to 9 GHz |
Options
| Module No. | Item | Description |
| S3657-001 | Rack mount kit | Dedicated kit installed in the cabinet |
| S3657-002 | Rack mount kit | Dedicated kit installed in the cabinet |
| S3657-003 | 3657 series user manual in Chinese | |
| S3657-004 | 3657 series user manual in English | |
| S3657-005 | Aluminum transportation case | |
| S3657-006 | English options(Button, front panel, label) | With English front and rear panel and English operating system |
| S3657-S07 | Automatic Fixture Removal Function(AFR) | For automatic testing and removal of single-end and balance device measuring fixture. For the full range |
| S3657-S11 | Advanced Time Domain Analysis Function | For the real difference mode and common mode excitation balance parameters measurement. For S3657B / C / D / E / F / G / H / K / L. Requires: Option 400 + 404 + S3657-S28. |
| S3657A-221 | ||
| S3657A-400 | 4-port measurement | Dual-source excitation four-port vector network analyzer configuration with a frequency range of 100 kHz to 4.5 GHz. |
| S3657A-421 | ||
| S3657B-221 | ||
| S3657B-400 | 4-port measurement | Dual-source excitation four-port vector network analyzer configuration with a frequency range of 100 kHz to 9 GHz. |
| S3657B-421 | ||
| S3657B-221 | ||
| S3657BM-400 | 4-port measurement | Dual-source excitation four-port vector network analyzer configuration with a frequency range of 100 kHz to 9 GHz. |
| S3657BM-421 | ||
| S3657AM-221 | ||
| S3657AM-400 | 4-port measurement | Dual-source excitation four-port vector network analyzer configuration with a frequency range of 100 kHz to 4.5 GHz. |
| S3657AM-421 | ||
| S3657BS-400 | 4-port measurement | Dual-source excitation four-port vector network analyzer configuration with a frequency range of 100 kHz to 9 GHz. |
