S2438 Series Microwave Power Meter

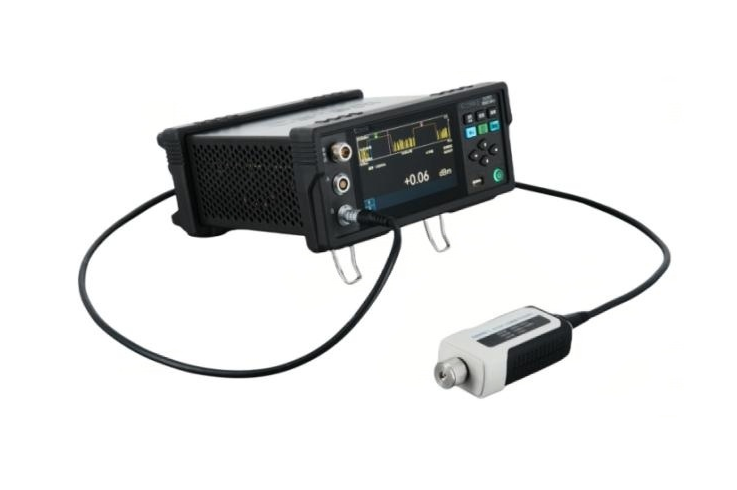

S2438 series microwave power meter is composed of a host of microwave power meter and a series of microwave power sensors. S2438 series have a wide frequency band, large dynamic power range, high precision, fast measurement and analysis, serialization of sensors. It is mainly used for measuring and calibrating the average power, peak power and pulse envelope power of microwave signals. S2438 series is an important measurement instrument for the research, production, acceptance and maintenance of radar, electronic countermeasures, and communications.

S2438 series is a good suitable of Keysight N1911A/ N1912A/ N1913A/ N1914A.

Key Features

Wide frequency range, up to 500GHz

A variety of sensor options: CW power sensor frequency up to 500GHz with the max. dynamic range 90dB, Peak power sensor frequency up to 67GHz with the max. dynamic range 60dB

More than 10 kinds of measurement and analysis functions of amplitude and time domain parameters for microwave / millimeter-wave pulse modulation signals

Flexible and open frequency offset list setting, with high-power attenuator or high-power directional coupler to achieve accurate measurement of signal power

Multiple measurement modes: CW measurement, peak measurement, CCDF statistic measurement

Peak power sensors use internal calibration

GPIB, LAN, USB programmable control function

Save and recall configuration information

Frequency Range

9 kHz to 500 GHz

Channel

Single / Dual

CW Power Range

-70dBm to +50dBm

Pulse Power Range

S2438PA/PB: -40dBm to +20dBm

Max. Display Resolution

Log: 0.001dB

Line: 0.0001

Relative Offset Range

± 100dB

Pulse Rise Time

S2438PA/PB: ≤ 13ns

Video Bandwidth

S2438PA/PB: ≥ 30MHz

Max. Pulse Repetition Frequency

S2438PA/PB: 10MHz

Min. Pulse Width

50ns

Time Base
Internal Trigger Level Range

-20dBm to +20dBm

Calibration Source Frequency

50MHz ± 1MHz

Calibration Source Power

1.000mW (1±1.0%)

Output Port

Type-N (female)

Uncertainty

± 0.04dB

Display

4.3 inch color LCD

Power Consumption

50W

Power Supply

100-240VAC, 50-60Hz

Dimension

220 (W) × 100 (H) × 350 (D) mm

Weight

5kg

(Note: see more detail information of optional sensors in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
S2438CA Microwave Power Meter 500GHz, 1CH, CW power measurement
S2438CB Microwave Power Meter 500GHz, 2CH, CW power measurement
S2438PA Microwave Power Meter 500GHz, 1CH, CW/Peak power measurement
S2438PB Microwave Power Meter 500GHz, 2CH, CW/Peak power measurement

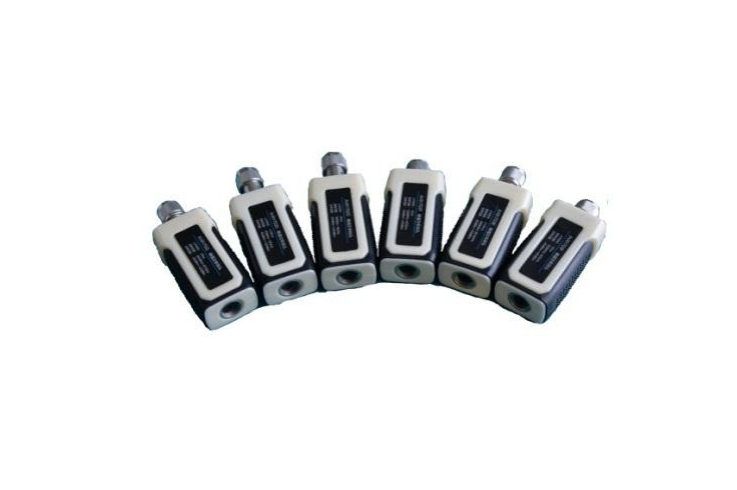

CW Power Sensor Options

Module No. Item Description
S2438-001 S71710A Continuous Wave Power Sensor Frequency range: 9kHz-12GHz, Power range: -60dBm to +20dBm
S2438-002 S71710A Continuous Wave Power Sensor Frequency range: 10MHz-18GHz, Power range: -70dBm to +20dBm
S2438-003 S71710A Continuous Wave Power Sensor Frequency range: 50MHz-26.5GHz, Power range: -70dBm to +20dBm
S2438-004 S71710A Continuous Wave Power Sensor Frequency range: 50MHz-40GHz, Power range: -70dBm to +20dBm
S2438-005 S71710A Continuous Wave Power Sensor Frequency range: 50MHz-67GHz, Power range: -70dBm to +20dBm

Peak Power Sensor Options (Only for S2438PA/PB)

Module No. Item Description
S2438-006 S81702D Peak Power Sensor Frequency range: 50MHz-18GHz, Power range: -20dBm to +20dBm, Rise time <10ns
S2438-007 S81702E Peak Power Sensor Frequency range: 500MHz-26.5GHz, Power range: -20dBm to +20dBm, Rise time <10ns
S2438-008 S81702F Peak Power Sensor Frequency range: 500MHz-40GHz, Power range: -20dBm to +20dBm, Rise time <10ns
S2438-009 S81702L Peak Power Sensor Frequency range: 500MHz-67GHz, Power range: -20dBm to +20dBm, Rise time <10ns
S2438-010 S81703D Peak Power Sensor Frequency range: 50MHz-18GHz, Power range: -40dBm to +20dBm, Rise time <100ns
S2438-011 S81703E Peak Power Sensor Frequency range: 500MHz-26.5GHz, Power range: -40dBm to +20dBm, Rise time <100ns
S2438-012 S81703F Peak Power Sensor Frequency range: 500MHz-40GHz, Power range: -40dBm to +20dBm, Rise time <100ns
S2438-013 S81703L Peak Power Sensor Frequency range: 500MHz-67GHz, Power range: -40dBm to +20dBm, Rise time <100ns

Millimeter Wave Power Sensor Options

Module No. Item Description
S2438-030 S71716 Millimeter Wave Power Sensor Frequency range: 50GHz-75GHz, Power range: -30dBm to +20dBm
S2438-031 S71717 Millimeter Wave Power Sensor Frequency range: 75GHz-110GHz, Power range: -30dBm to +20dBm
S2438-032 S71718 Millimeter Wave (THz) Power Sensor Frequency range: 110GHz-170GHz, Power range: -30dBm to +20dBm
S2438-033 S87106A Millimeter Wave (THz) Power Sensor Frequency range: 170GHz-220GHz, Power range: -30dBm to +20dBm
S2438-034 S87106B Millimeter Wave (THz) Power Sensor Frequency range: 220GHz-325GHz, Power range: -30dBm to +20dBm
S2438-035 S87108B Millimeter Wave (THz) Power Sensor Frequency range: 325GHz-500GHz, Power range: -30dBm to +20dBm

Other Options

Module No. Item Description
S2438-021 2U-213 Racking Kit Using for cabinet
S2438-022 Rear Panel Output Equipped with a probe input measurement option
S2438-024 Probe Connection Cable 1.5m, Connect the sensor to the main machine
