SMT16 High-resolution time-correlated single photon counting system

Overview Specifications Ordering Resources

The Saluki SMT16 is Starmiao Technology’s latest generation of high-precision time-correlated single-photon counting systems. Integrating the latest time measurement chip technology, the SMT16 achieves time resolution down to 1ps, with dead time reduced to 2ns, and supports instantaneous saturation count rates up to 500 Mcps.

In addition to a standard USB 3.0 interface, the SMT16 offers a 10GbE optical port with a bandwidth of up to 10Gbit/s, enabling a maximum time event transmission rate of 280 Mcps.

The high precision and high bandwidth make the SMT16 an excellent choice for applications such as high-resolution quantum optics, fluorescence lifetime, and lidar imaging.

Key Features

Ultra-high 1ps temporal resolution

500Mcps instantaneous count rate

Optical interface + 10 Gigabit Ethernet

Expandable connectivity

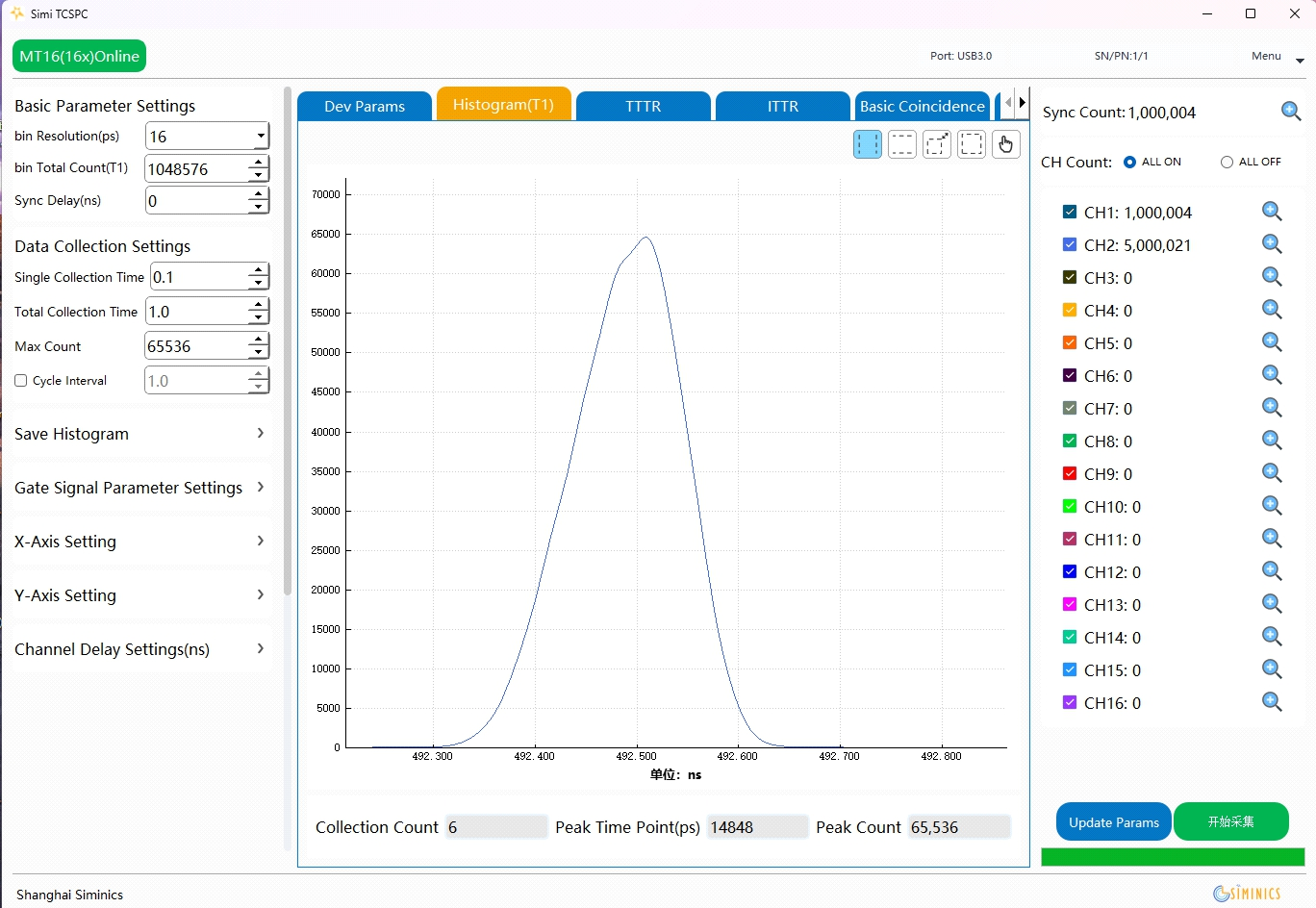

Software

Software

Channel characteristics
Number of counting channels	4/8/16
Sync/counting channel input	-2V to +3V adjustable threshold
Sync/counting channel trigger mode	Rising/falling edge trigger (adjustable)
Minimum trigger pulse width	0.1 ns
Marker signal input level	LVTTL
Reference clock input/output level	LVTTL
RMS jitter	<10 pS
Input impedance	50 Ω/high impedance
TDC characteristics
Instantaneous saturation count rate	500 Mcps
Dead time	2 ns
Maximum event transmission rate	40M Events/s (USB 3.0) 280M Events/s (Optical)
Adjustable time delay range	-1000.0 to 1000.0 ns
Pulse width measurement function	Optional
GPS timestamp function	Optional
Histogram
Time resolution (ps)	1/2/4/…/33554432
Maximum counting depth	2^32
Maximum number of time channels	1048576 (configurable)
Maximum range	1.04 μs @ 1 ps 1.07 ms @ 1024 ps 35s @ 33554432 ps
Time and intensity labels (TTTR and ITTR)
Mode Selection	T2/T3/ITTR
T2 Mode Time Resolution (ps)	1 ps
T3 Mode Time Resolution (ps)	1/2/4/…/33554432 PS
ITTR Mode Minimum Statistics Period (us)	1 us
TTTR Data Buffer Depth	32G bit
Maximum Range	Unlimited@T2 1.09 s@T3 Unlimited@ITTR
Conform to the pattern
Maximum number of strategies	12
Number of selectable channels	2~Max (maximum number of channels on this device)
Window width	0.1~604080 ns
Match mode	Online/Offline
External clock synchronization
Input frequency	10Mhz
Level standard	LVTTL
Others
Data port	USB 3.0/10G Ethernet (Optical)
Case dimensions	186x325x64mm³
Power supply	DV 12V/5A
Power consumption	24W (typical)

Main Machine

Module No.	Item	Description
SMT16-4	High-resolution time-correlated single photon counting system	Number of counting channels: 4;
SMT16-8	High-resolution time-correlated single photon counting system	Number of counting channels: 8;
SMT16-16	High-resolution time-correlated single photon counting system	Number of counting channels: 16;

Document

SMT16 High-resolution time-correlated single photon counting system datasheet
