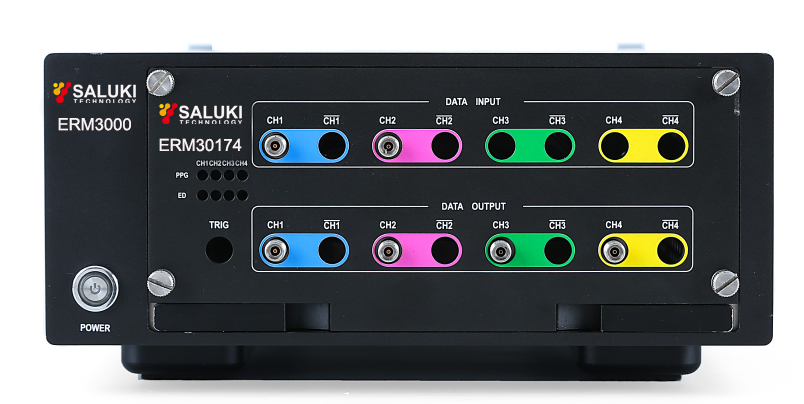

ERM3040 Series NRZ/PAM4 BERT is modularized high end BERT (Bit Error Rate Tester) for the high speed serial data physical layer characterization, testing and issue debugging. It provides a fully integrated all-in-one solution with maximum flexibility and performance.
The ERM3000 supports the latest NRZ and PAM4 signaling rates up to 56GBaud. The target application is to test the mature and newly emerging standards such as OIF-CEI from 1Gbps to 58Gbaud, IEEE Ethernet from 1.25Gbps to 53.125GBaud, and PCIE Gen1/2/3/4 from 2.5Gbps to 16Gbps, JESD and CPRI.
Applications: Optical Modules / High Speed Backplanes
Compact form factor to save the bench space and DUT accessibility without remote head
NRZ and PAM4 switchable from BERT software
Data rate coverage from 1Gbps to 56Gbaud
Modularized design to maximum the flexibility and test coverage
Multi-channel capability to maximum the test efficiency
Advanced jitter injection capability
Advanced noise injection capability
High voltage output
DC offset control
Internal and external reference clock support with Precision Reference Option
Gray coding and polarity control
PRBS, PRBS-Q and customized test pattern support
PPG EQ and ED input EQ support
