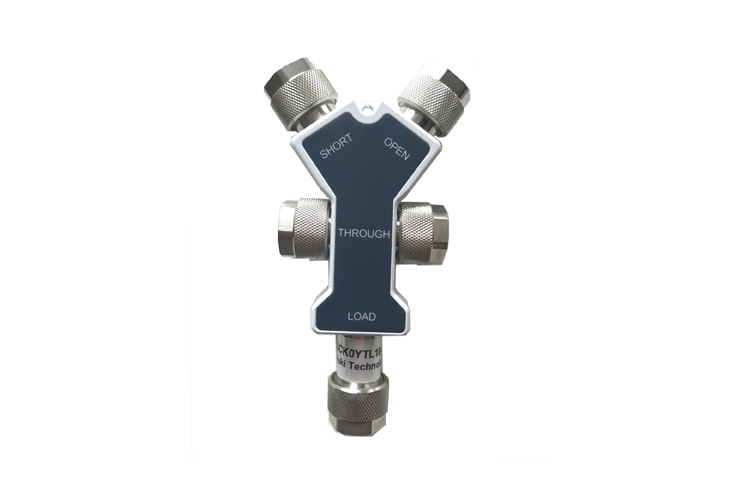

Mechanical Calibration Kit, 18GHz, Type-N, OSLT

SCK0YTL18-N mechanical 4-in-1 SOLT calibration kit has been designed to provide superior measurement results when used with precision instruments. It is designed for use in both field and lab environments. It is a high precision component and should be handled with proper care. Excessive shock, torque, or power should be avoided to prevent permanent damage.

Key Features

DC to 18GHz frequency coverage

Type-N male or female connector configuration

50 ohm impedance

Application

Site Master

Cable and Antenna Analyzer

Vector Network Analyzer (VNA)

Unit Price: $1,368 (1-5pcs)

NOTICE: Online purchases are temporarily closed. Sorry for the inconvenience.

Download
SCK0YTL18-N Datasheet

Select Module

[wp_cart_button name=”SCK0YTL18-N(M) Mechanical Calibration Kit” price=”1368.00″ shipping=”50.00″ var1=”SCK0YTL18-N(M) Calibration Kit| Male”]

[wp_cart_button name=”SCK0YTL18-N(F) Mechanical Calibration Kit” price=”1368.00″ shipping=”50.00″ var1=”SCK0YTL18-N(F) Calibration Kit|Female”]

[show_wp_shopping_cart]

Add to Cart

Detailed

Technical Specifications

Model Name Frequency Specifications List
SCK0YCL18-N(M) Type-N calibration kit

Y Type

DC – 18 GHz Open: ± 3°

Short: ± 2.5°

Load: VSWR < 1.08

Through: VSWR < 1.1

N (Male) Y type calibration kit
SCK0YCL18-N(F) N (Female) Y type calibration kit

Unboxing Video

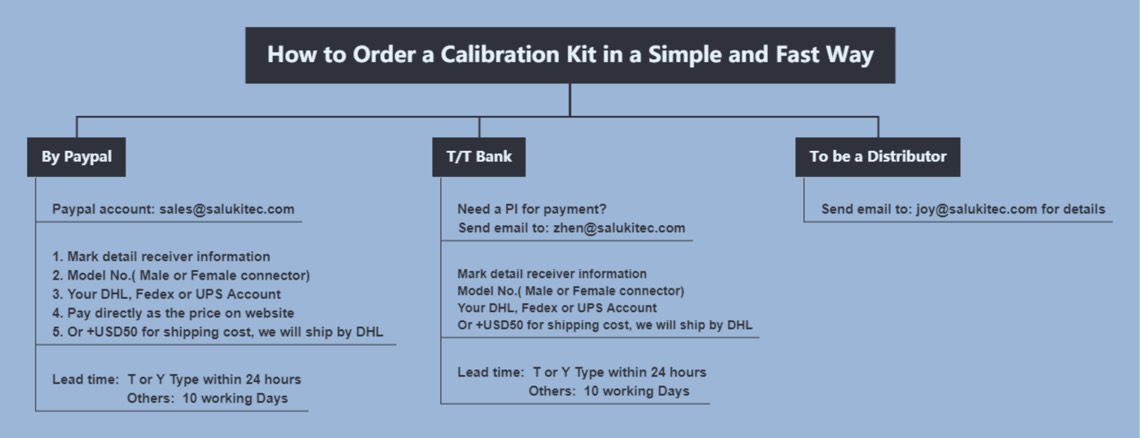

How to Place an Order ?

Common Q&A

  • Q: Can I use it in Keysight VNA?

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.

  • Q: Can I use it to R&S, Anritsu or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

  • Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

  • Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.

  • Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

  • Q: Return Policy

    A: If there is no quality problem, we do not accept returns and refunds.

  • Q: Refund Policy

    A: If the return is caused by the product quality or the mistake from us, you will guaranteed to get the refund by paypal.
