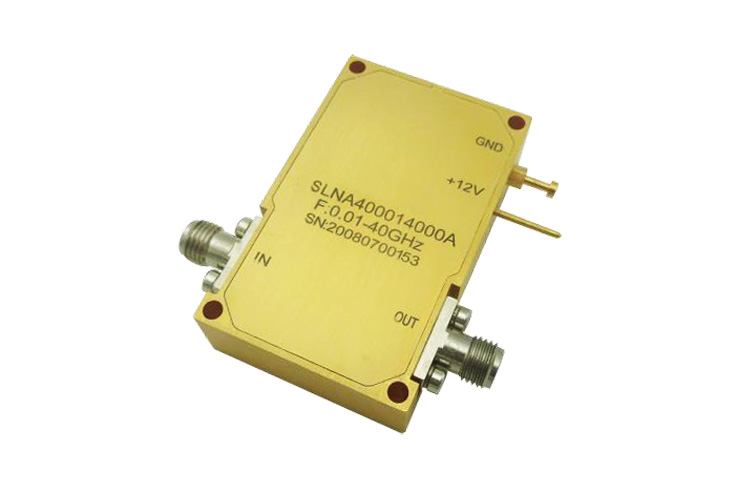

SLNA0P01404Z is a wideband low noise RF coaxial amplifier covering frequency from 0.01GHz to 40GHz.
Saluki’s RF amplifier brings compact and reliable gain block performance to MW&RF designers, wireless infrastructure, and systems integrators.
Low Noise Amplifier, 0.01 to 40GHz, 30dB, 2.92mm(f)
Key Features
Gain: 30dB typical
Noise figure: 3.0dB typical
P1dB output power: +21dBm typical
Supply voltage: +12V @ 400mA
50 ohm matched input / output
Application
Wireless infrastructure
5G communication
Test and measurement instrument
US$ 5,265 (1-5pcs)
NOTICE: Online purchases are temporarily closed. Sorry for the inconvenience.
- Download
- SLNA0P01404Z Datasheet
-
Select Module
[wp_cart_button name=”SLNA0P01404Z Low Noise Amplifier” price=”5265″ shipping=”50″ var1=”Low Noise Amplifier|SLNA0P01404Z”]
[show_wp_shopping_cart]
Add to Cart
Detailed
Technical Specifications
| Parameters | Min. | Typ. | Max. | Min. | Typ. | Max. | Min. | Typ. | Max. | Units |
| Frequency Range | 0.01-6 | 6 – 26 | 26 – 40 | GHz | ||||||
| Gain | 25 | 30 | 35 | 22 | 25 | 32 | 20 | 24 | 30 | dB |
| Gain Flatness | ±3.0 | ±2.5 | ±2.5 | dB | ||||||
| Gain Variation Over Temperature | ±1.0 | ±1.0 | ±1.0 | dB | ||||||
| Noise Figure | 5.0 | 3.0 | 6.5 | dB | ||||||
| Input VSWR | 1.4 | 2.0 | 1.8 | 3.5 | 2.0 | 3.5 | dB | |||
| Output VSWR | 1.4 | 2.0 | 1.8 | 3.0 | 2.0 | 3.5 | dB | |||
| Output 1dB Compression Point (P1dB) | 18 | 21 | 16 | 20 | 13 | 16 | dBm | |||
| Saturated Output Power (Psat) | 23 | 22 | 18 | dBm | ||||||
| Output Third Order Intercept (OIP3) | 28 | 26 | 23 | dBm | ||||||
| Supply Current (Vcc=+12V) | 400 | 500 | 400 | 500 | 400 | 500 | mA | |||
| Isolation S12 | -70 | -55 | -50 | dB | ||||||
| Connector | 2.92mm (female) | |||||||||
| Finish | Gold plated | |||||||||
| Material | Aluminum | |||||||||
| Sealing | Hermetically sealed (optional) | |||||||||
(See more specifications in the “Datasheet”)
