STB5518 DC Resistance Meter

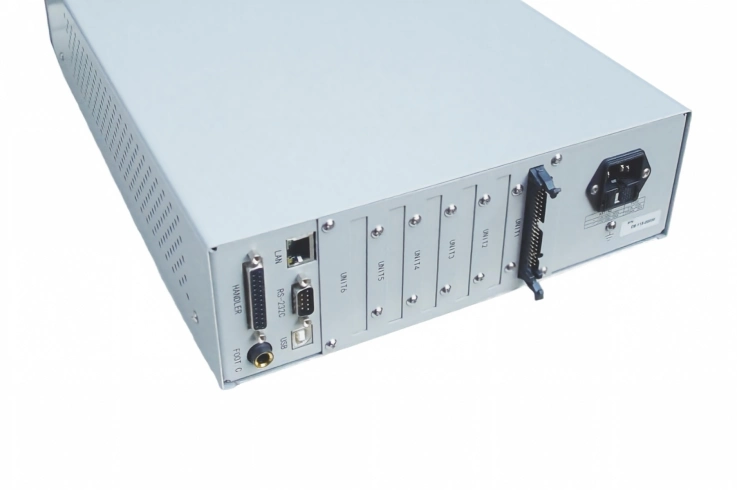

STB5518 series resistance/temperature scanner simulation test scanning unit adopts the design concept of synchronous plug-in, which can support up to 6 plug-in test units, and realize synchronous measurement between the plug-in boards, greatly improving the scanning measurement speed. Each measuring board contains 16 test terminals. The combination of test terminals supports user’s free programming. Up to 90 resistance/temperature scanning measuring channels can be configured.

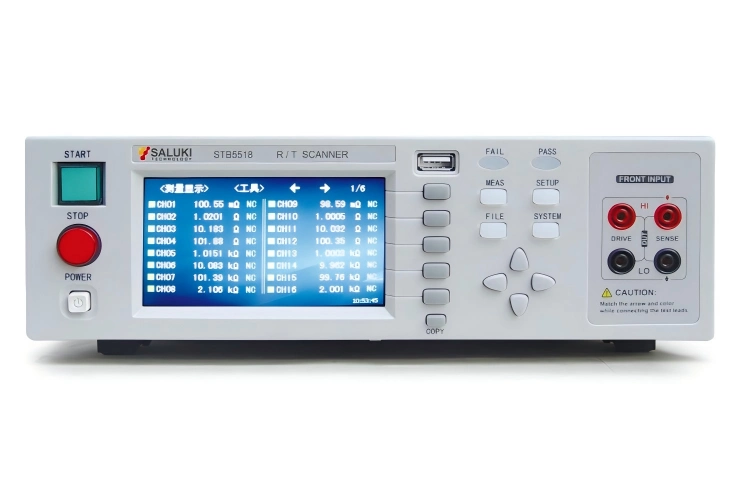

With touch function of 24-bit color, resolution 480×272 color LCD screen, give you a different feeling of measurement operation!

** Standard Lead Time: within 4 weeks **

Key Features

Up to 90-channel resistance/temperature scan tests

Support 6 units for free insertion and removal, simultaneous measurement between test units

Maximum test speed can reach 600 times / sec

Maximum resistance accuracy: 0.05%, minimum resolution: 10uΩ

Basic temperature accuracy: 0.2 °C

Temperature measurement can support PT100, PT500 and analog voltage three temperature sampling methods

Automatic upgrade of instrument operating software via USB HOST



Measurement Range

10μΩ — 200kΩ

Basic Accuracy


Resistance range

Auto and manual (200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ)

Measurement speed

ingle board: 100 times / sec, 40 times / sec, 2 times / sec,
6 boards: 600 times / sec, 240 times / sec, 12 times / sec

Short-circuit clear correction

Support full-scale short-circuit clearing for all channels

Temperature sensor type

PT500 platinum resistance, PT100 platinum resistance, analog voltage input Temperature test range

Temperature test

Range: PT100, PT500:-10℃ — 99.9℃,Analog:0V — 2V

Accuracy: PT100, PT500:0.3%*measured value ±0.5℃,Analog: ±1%Rd ± 3mV

Main Machine

Module No. Item Description
STB5518 DC Resistance Meter Test Range: 10μΩ -200kΩ, including four-terminal test cable.
STB5518A DC Resistance Meter Test Range: 10μΩ -200kΩ, including four-terminal test cable.


Module No. Item Description
SBF0056 Resistance sweep box /
STB5518-01 STB5518 Handler Interface switching board /

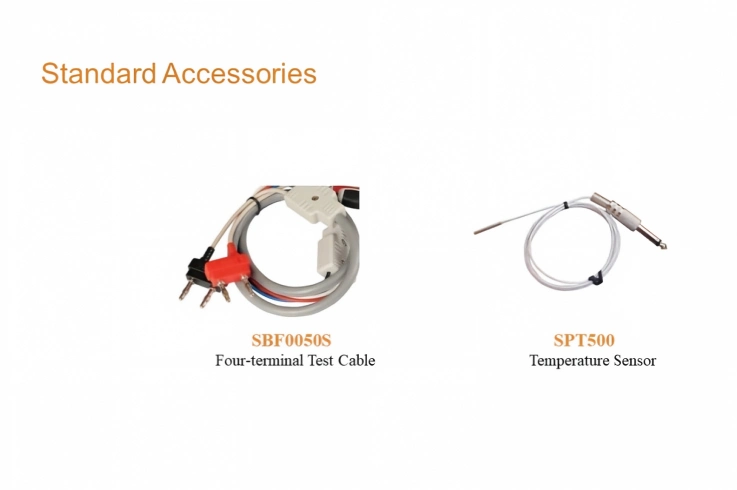

SPT500 Temperature sensor /
