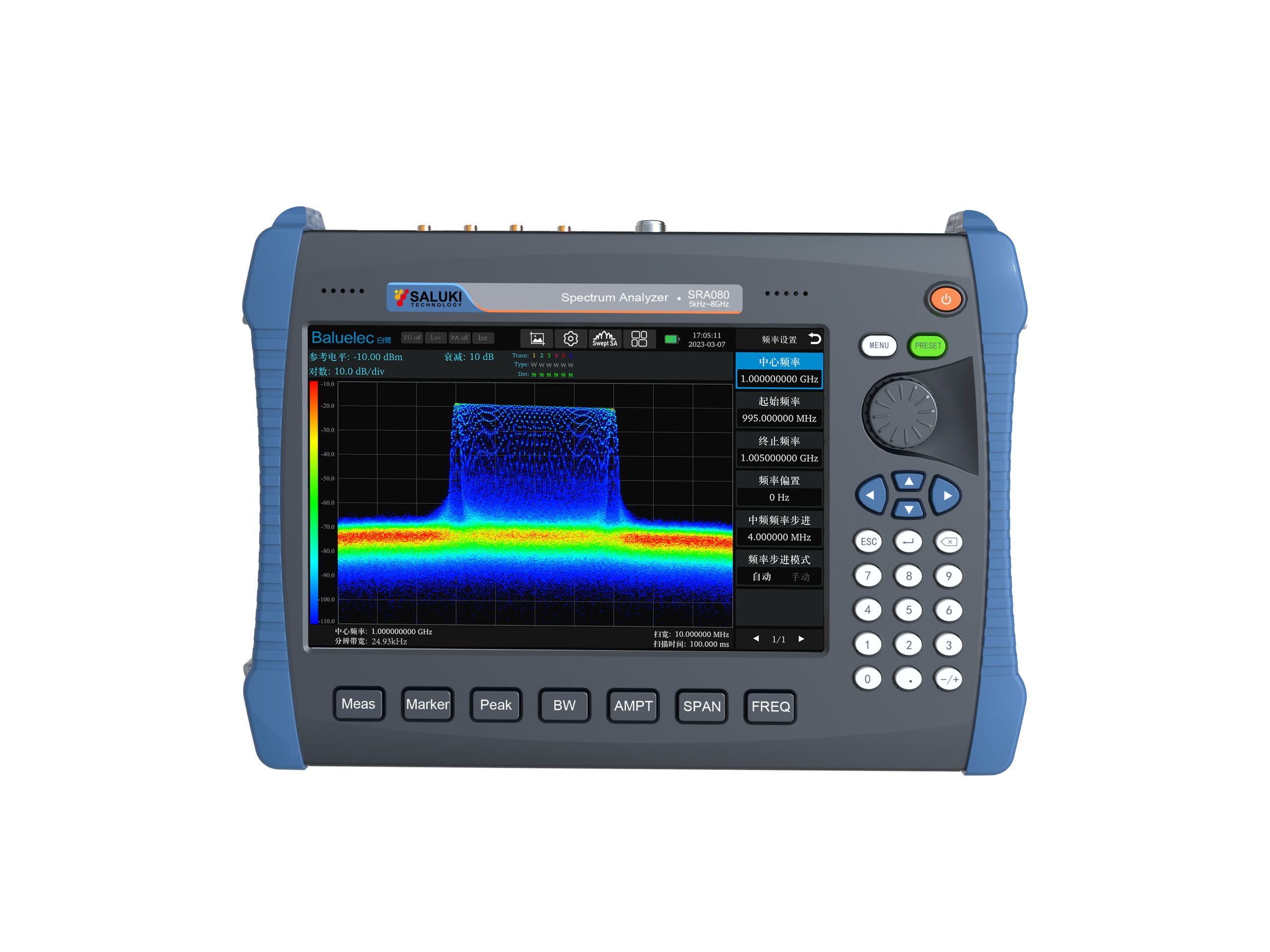

SRA080 Real-time Spectrum Analyzer is a broadband, high-performance portable real-time spectrum analyzer, the measurement frequency covers 5kHz~8GHz, and it can be used in both indoor and outdoor environments.
SRA080 Real-time Spectrum Analyzer adopts a 10.1-inch LED backlit high-brightness display and supports multi-touch operation. With measurement modes such as real-time spectrum, swept spectrum, vector network analysis, antenna feeder measurement, field strength measurement, USB power measurement, interference location and demodulation analysis, it is convenient for users to diagnose and solve various RF measurement problems on site. Up to 80dB medium image frequency suppression and extremely small residual response index make it meet the higher requirements of radio monitoring. The product testing function is very comprehensive, it can be powered by batteries, and is easy to
carry. It is a powerful tool for on-site testing parameters of various electronic equipment, engineering installation and debugging, and daily maintenance. It can be widely used in communications, radio and television, radio management, electronic detection and countermeasures. , precision guidance and other fields, and it is also the best choice for college teaching.
SRA080 Real-time Spectrum Analyzer
Key Features
Frequency range：5kHz~8GHz
Maximum real-time bandwidth：40MHz
The shortest signal duration at 100% POI: 7us
Support real-time spectrum, scanning spectrum, VNA, antenna and feeder measurement, field strength measurement, interference location, power measurement, analog modulation analysis and other measurement modes
Up to 80dB Medium Image Rejection
10.1-inch bright display and supports touch operation
Removable lithium-ion battery, convenient for field testing
| 1. Real-time Spectrum Analysis | ||
| Frequency Range | 5kHz~8GHz |
|
| Real-time analysis bandwidth | 40MHz |
|
| Minimum signal duration at 100% POI | 7us |
|
| Phase noise | 100dBc/Hz@10kHz |
|
| Window function types | Hanning, Blackman-Harris, rectangular, flat-top, Caesar, Gaussian |
|
| Maximum sampling rate | 51.2MHz |
|
| Display Modes | Density Spectrum, Waterfall, Power vs Time |
|
| Trigger mode | External trigger, intermediate frequency power, pp |
|
| 2. Input/Output Interface | ||
| RF IN/OUT | RF signal input/output, N-type negative (50Ω) |
|
| USB | Host: USB 2.0 A connector, dual USB ports |
|
| LAN | 10/100 Base-T, RJ-45 connector |
|
| Headphone jack | FM/AM audio demodulation output |
|
| REF IN | 10MHz reference input, SMA female, input power 0dBm to +10dBm |
|
| IF OUT | 145MHz IF output, SMA female |
|
| Trig In | External trigger input, 3.3V/5V TTL level |
|
| GPS | GPS/BD antenna input port, SMA female |
|
| AUX | 8-core aviation connector, directional antenna electronic compass connector |
|
| DC 20V | 20VDC power adapter interface |
|
| 3. Common Parameters | ||
| Monitor | LED backlight, 10.1 inch TFT-LCD, 1208×800 |
|
| Machine weight (including battery) | About 3.9kg（Except VNA option） |
|
| Dimensions | 334mm×242mm×68mm |
|
| Operating temperature | 0℃ – 50℃ |
|
| Storage temperature | -20℃ – +70℃ |
|
| Battery | 14.8V; 6400mAh |
|
| Power Adapter | Input: 100V~240VAC; 50/60Hz; 1.4A Output: +20V; 6A |
|
| Overall power consumption | About 30W |
|
|
Main Machine
| Module No. | Item | Description |
| SRA080 | Real-time Spectrum Analyzer | Frequency range: 5kHz~8GHz; Maximum real-time bandwidth：40MHz; The shortest signal duration at 100% POI: 7us |
Standard
| Module No. | Item | |
| / | CD-ROM（User Manual, Programming Manual） | |
| / | AC/DC adapter (AC input, +20V output) |
Options
| Module No. | Item | |
| SRA-AMK | Advanced Measurement Suite | |
| SRA-OCXO | High stability time base | |
| SRA080-VNA | Vector Network Analysis | |
| SRA080-DTF | Antenna and feeder measurement | |
| SRA-FS | Field strength measurement | |
| SRA-IL | Interference location | |
| UP60 | USB power sensor | |
| SRA-AMA | Analog Modulation Analysis | |
| SRA-DMA | Digital Modulation Analysis | |
| OA750/DA800 | Omnidirectional Antenna/Directional Antenna | |
| SDA800 | Ultrashort Wave Handheld DF Antenna (9kHz～8000MHz) |
