SEC1106 Series Electrochemical Workstation

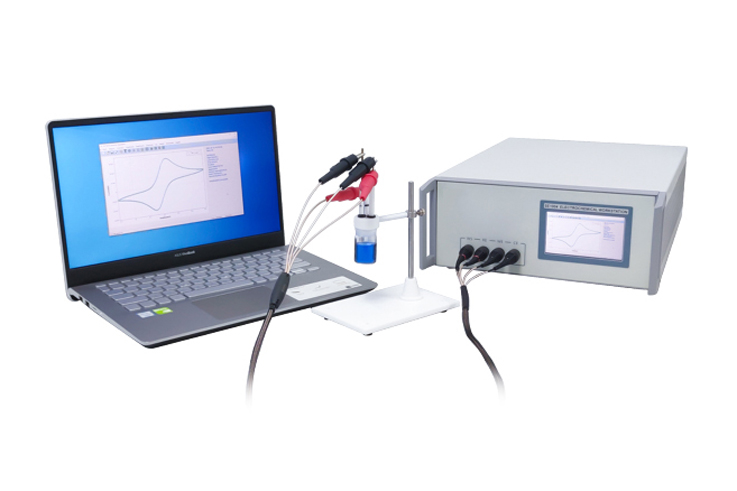

SEC1106 series electrochemical workstation is a new generation launched by Saluki which is providing an accurate measurement platform for researchers involved in life science, sensor, corrosion, physical electrochemistry, environmental protection, batteries, materials, and other fields.

SEC1106 series adopts a potentiostat with full digital feedback. The EIS operating frequency is up to 3MHz, and the basic measurement error is within 0.1% (in the impedance range greater than 100kΩ, the test error is less than 1%). Three independent acquisition links, combined with adaptive filtering and amplification technology, adopt 16-bit, 10MSPS high-performance ADC so that the measurement results have ultra-high sensitivity and accuracy.

Key Features

0.1Hz to 3MHz frequency range

Maximum ±300mA current

Maximum output ±10V voltage

Measurement accuracy <0.5%

Compatible with 2, 3, and 4 electrode structures

Multi-channel 16-bit high-precision ADC simultaneous sampling

Support potentiostat, cyclic voltammetry, AC impedance method

  • Available Multiple Techniques

    •   Transient Polarization:  Stair-Step (STEP)

    •   EIS:  AC Impedance Measurement (IMP)

    •   Chrono Methods:  Chronoamperometry (CA), Chronocoulometry (CC)

    •   Stable Polarization:  Potentiostatic (I-T curve), Tafel Plot (TAFE1)

    •   Voltammetry:

    Cyclic Voltammetry (CV), Linear Sweep Voltammetry (LSV), Staircase Voltammetry (SCV), Square wave voltammetry (SWV), Differential Pulse Voltammetry (DPV), Normal Pulse Voltammetry (NPV), Differential Normal Pulse Voltammetry (DNPV)

    •   Amperometry:

    Differential Pulse Amperometry (DPA), Double Differential Pulse Amperometry (DDPA), Triple Pulse Amperometry (TPA)

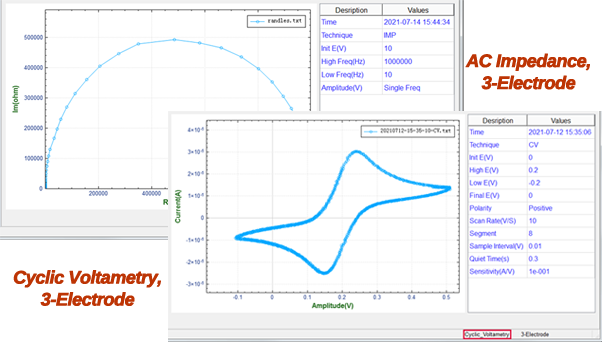

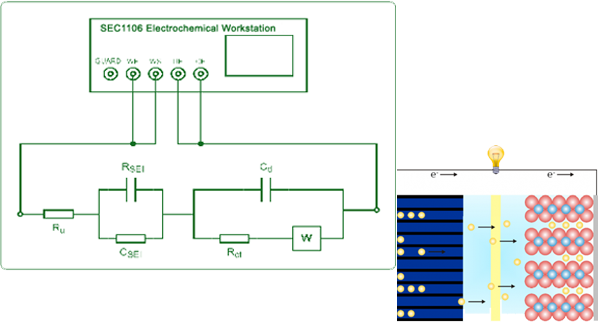

  • Battery Test by Electrochemical Workstation

    Constant current charge and discharge method (CCD) also known as chronopotentiometry. Its specific principle is to charge and discharge the tested electrode under constant current conditions, record the variation law of its potential with time, and then study the charge and discharge performance of the electrode to calculate its actual specific capacity.



    CCD can determine the charge-discharge curve, capacity, rate characteristics, cycle performance and other parameters of electrode materials. It is best to test in a relatively constant temperature environment, and cycle charge and discharge many times to obtain stable data.



       << Click here to see detailed solution description ! >>

Max. Current Output

±300mA continuous, ±420mA peak

Output Voltage

Maximum ±10V

Cell Connections

2, 3, 4

Signal Acquisition

3 independent acquisition links. Using adaptive filtering, amplification technology; adopting 16-bit, 10MSPS sampling rate ADC

CA Gain Bandwidth

22MHz

Rising Time

200V/μs

Electrometer Bandwidth

10.5MHz (-3dB point)

Slot Pressure

±10V, need to load 1.2k

Current Axis Bandwidth

500R – 10MHz

5kR – 1.5MHz

50kR – 0.15MHz

Voltage Measurement

•   Voltage range: ±0.02V, ±0.05V, ±0.09, ±0.023V, ±0.046V, ±2.28V, ±4.55V, ±10V

•  Resolution: 0.0015% of measuring range

Current Measurement

•   Current range: ±228pA to ±300mArms

•  Resolution: 0.0015% of measuring range, minimum 6.94fA

AC Impedance Method

•  Frequency range: 0.1Hz – 3MHz

•  Amplitude: 5mVrms to 1Vrms

•  Accuracy: 1%

Potentiostat

•  Bandwidth: ≥ 3MHz

•   Applied Voltage Gear: ±10 mV, ±100 mV

Cyclic Voltammetry

•  Initial potential: -10V to +10V

•  High potential: -10V to +10V

•  Low potential: -10V to +10V

•  Scan rate: 0.001V/s to 10000V/s

•  Sampling interval: 0.001V to 0.064V

Auxliary Function

•  DC paranoia compensation: -10V to +10V

•  DC bias: -10V to +10V

•  RDE driver function: -10V to +10V, 300mArms continuous

Main Machine

Module No. Bandwidth Function/Level
SEC1106A 3 MHz CV/5, LSV/5, SCV/2.5, TAFE1/2.5, CA/4, CC/3.5, DPV/3.5, NPV/2.5, DNPV/1.5, SWV/2.5, IT/5, DPA/3.5, DDPA/2.5, TPA/2, STEP/3, IMP/5
SEC1106B 1 MHz CV/5, LSV/5, SCV/2.5, TAFE1/2.5, CA/4, CC/3.5, DPV/3.5, NPV/2.5, DNPV/1.5, SWV/2.5, IT/5, DPA/3.5, DDPA/2.5, TPA/2, STEP/3, IMP/5
