S3602 series vector network analyzer is a top level VNA with excellent specifications. Its frequency ranges from 10MHz to 67GHz. S3602 series provide multiple calibration types including frequency response, single port, response isolation, enhanced response and full dual-port, electronic calibration etc., offer various display formats such as logarithmic amplitude, linear amplitude, standing-wave, phase, group delay, Smith chart and polar coordinates, etc. They are designed with several standard interfaces: USB, LAN, GPIB and VGA etc. Besides all measurement functions same as traditional vector network analyzer, through configuration of functional options, S3602 series is also capable of multifunctional & comprehensive parameter test of mixer/converter, gain compression two-dimensional sweep and pulse S-parameters, as well as accuracy measurement of amplitude-frequency characteristics, phase-frequency characteristics and group delay used in the field of transmitting/receiving (T/R) module measurement, dielectric material properties measurement, microwave pulse characteristics measurement and optoelectronic properties measurement, which are indispensable instruments for scientific research and manufacturing process of radar, communication, and navigation systems.

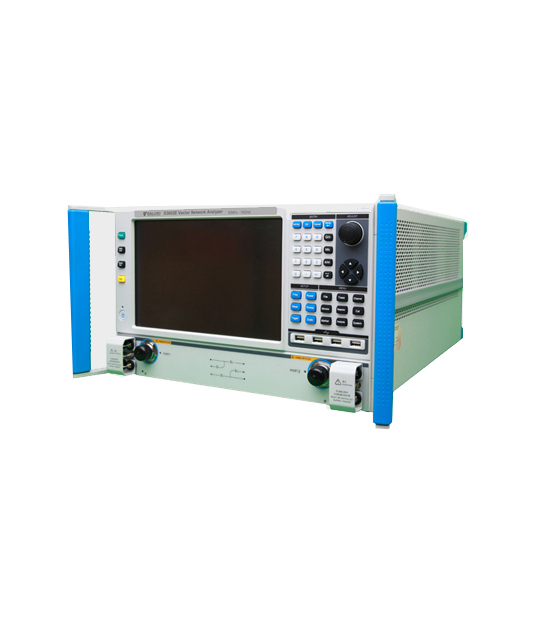

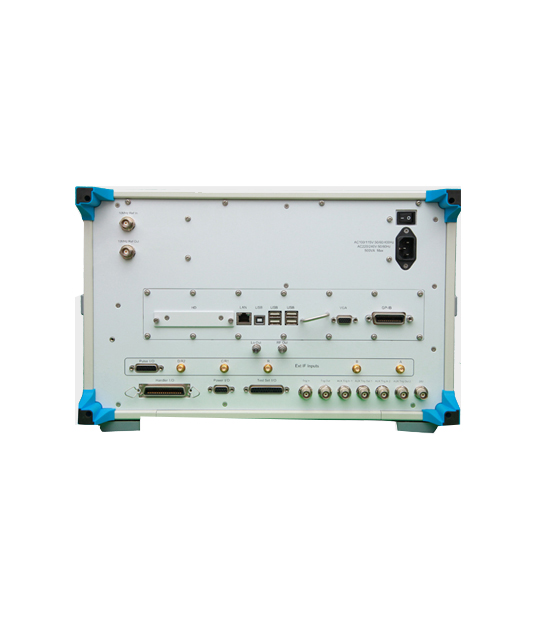

S3602 Series Vector Network Analyzer
Key Features
Frequency range from 10 MHz to 67 GHz
Extension modules can extend frequency range up to 325 GHz
Available in multiple display formats such as logarithmic amplitude, linear amplitude, SWR, Phase, Smith chart
Flexible and optional calibration types, Mechanic / Electronic calibration kit
64 measurement channels, 16 windows, 8 traces displayed on each window
Multi-window, multi-channel measurement, instantly execute intricate measurement plan
Record/run, one-click operation greatly simplifies the measurement setting steps and improves the efficiency
Available in functions as pulse S parameter measurement, time-domain measurement, mixer measurement, gain compression two-dimensional sweep measurement, millimeter-wave frequency extension, antenna & RCS measurement and receiving etc.
| Frequency Range | S3602A: 10 MHz to 13.5 GHz, |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | ±1×10-7 (23℃±3℃) |
| Max. Dynamic Range | • S3602A/B: 135dB @10GHz • S3602C/D: 133dB @10GHz • S3602E: 125dB @10GHz |
| Power Scan Range | • S3602A/B: 41dB @10GHz • S3602C/D: 36dB @10GHz • S3602E: 36dB @10GHz |
| Output Power | • S3602A/B: 14dBm @10GHz • S3602C/D: 10dBm @10GHz • S3602E: 9dBm @10GHz |
| Amplitude Trace Noise | 0.001dBrms @10GHz |
| Effective Directivity | • S3602A/B: > 53dB • S3602C/D: > 42dB • S3602E: > 42dB |
| Effective Load Match | > 51dB |
| Reflection Tracking | • S3602A/B: ± 0.01dB • S3602C/D: ± 0.02dB • S3602E: ± 0.02dB |
| Transmission Tracking | • S3602A/B: ± 0.015dB • S3602C/D: ± 0.02dB • S3602E: ± 0.02dB |
| Number of Built-In Ports | 2 ports (standard) / 4 ports (optional) |
| IF Bandwidth | 1Hz – 5MHz |
| Impedance | 50 Ω |
| Interface | • S3602A/B: 3.5mm male • S3602C/D: 2.4mm male • S3602E: 1.85mm male |
| Dimension | • S3602A/B: 463 (W) x 279.5 (H) x 640 (D) mm • S3602C/D: 463 (W) x 279.5 (H) x 690 (D) mm • S3602E: 463 (W) x 281 (H) x 690 (D) mm |
| Weight | • S3602A/B: 42kg • S3602C/D: 47kg • S3602E: 50kg |
(Note: see more detail information in the Source – Datasheet.) |
Main Machine
| Module No. | Item | Description |
| S3602A | Vector Network Analyzer | 10 MHz to 13.5 GHz |
| S3602B | Vector Network Analyzer | 10 MHz to 26.5 GHz |
| S3602C | Vector Network Analyzer | 10 MHz to 43.5 GHz |
| S3602D | Vector Network Analyzer | 10 MHz to 50 GHz |
| S3602E | Vector Network Analyzer | 10 MHz to 67 GHz |
S3602A Options
| Module No. | Item | Description |
| S3602A-201 | 2-Port Programmable Step Attenuator | Set two 70dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path |
| S3602A-400 | 4-Port Measurement | Two-source stimulus configuration, four-port VNA configuration |
| S3602A-401 | 4-Port Programmable Step Attenuator | Set four 70dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed) |
| S3602A-402 | Active Inter-modulation Measurement | For inter-modulation signal measurement of amplifier (Option 400, S80 is needed) |
| S3602A-003 | Vector Noise Figure Measurement | The built-in 10MHz-13.5GHz high-sensitivity noise receiver requires external electronic calibration components. Using advanced source matching error and vector error correction calibration techniques, the industry's highest noise figure measurement accuracy can be obtained. This option contains "Scalar Noise Figure Measurement" functions. |
| S3602A-008 | Pulse Measurement | For pulse S-parameter measurement |
| S3602A-3648 | Multi-port Network Parameter Expansion Device | Extended to 16-port network parameter measurement (10MHz-13.5GHz) |
| S3602A-S05 | S-parameter Signal Integrity Analysis | Used to display the frequency domain characteristics and time domain TDR characteristics of the system. Built-in crosstalk evaluation modules such as NEXT, FEXT, PSXT, ILD, ICR and ICN. Built-in standards such as IEEE 802.3, PCIe, SAS and SATA help to quickly evaluate whether S parameters Meet the design requirements. Can automatically convert the software graphic curve into Word or PPT report. Support a variety of Dk/Df extraction methods. Support NRZ, PAM-4 eye diagram drawing function. |
| S3602A-S07 | AFR Automatic Fixture Removal Option | Used for automatic testing and removal of single-ended and balanced device measurement fixtures. |
| S3602A-S10 | Time Domain Measurement | For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables. |
| S3602A-S11 | Advanced Time Domain Analysis | Used for TDR time domain impedance test, eye diagram analysis, etc.. S10 option is included in S11. |
| S3602A-S80 | Frequency Offset Measurement | For frequency offset measurement. millimeter-wave frequency extension main unit needs this option |
| S3602A-S82 | Mixer Scalar Measurement | For the scalar parameter measurement of mixers (Option 400, S80 is needed) |
| S3602A-S83 | Mixer Vector Measurement | For the vector parameter measurement of mixers (Option 400, S80 is needed) |
| S3602A-S84 | Embedded LO Frequency Converter Measurement | For the measurement of embedded LO frequency converters (Option 400, S82 or S83, S80 are needed) |
| S3602A-S86 | Gain Compression Two-Dimension Sweep Measurement | For the gain compression two-dimension sweep test of amplifier |
| S3602A-S88 | Phase Scan Option | Used for phase scan measurement (need option S3602A-400). |
| 31121 | 3.5mm Calibration Kit | For calibration of the analyzer |
| FB0HA0HB025.0 | 3.5mm Test Cable | For measurement of the analyzer, 3.5mm (male) |
| FB0HA0HC025.0 | 3.5mm Test Cable | For measurement of the analyzer, 3.5mm (female) |
| 20403 | E-Cal Kit | For calibration of the analyzer (10MHz-26.5GHz, 2 ports) |
| 20405 | E-Cal Kit | For calibration of the analyzer (10MHz-26.5GHz, 2 ports) |
| 87232 | USB Power Probe | For 402, S82, S86 Options in the process of power calibration (50MHz-26.5GHZ) |
| Top Rack | / | Easy to build the system and use on the cabinet |
| S3602A-EWT1 | Extend 1 year warranty | / |
S3602B Options
| Module No. | Item | Description |
| S3602B-201 | 2-Port Programmable Step Attenuator | Set two 70dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path |
| S3602B-400 | 4-Port Measurement | Two-source stimulus configuration, four-port VNA configuration |
| S3602B-401 | 4-Port Programmable Step Attenuator | Set four 70dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed) |
| S3602B-402 | Active Inter-modulation Measurement | For inter-modulation signal measurement of amplifier (Option 400, S80 is needed) |
| S3602B-003 | Vector Noise Figure Measurement | The built-in 10MHz-26.5GHz high-sensitivity noise receiver requires external electronic calibration components. Using advanced source matching error and vector error correction calibration techniques, the industry's highest noise figure measurement accuracy can be obtained. This option contains "Scalar Noise Figure Measurement" functions. |
| S3602B-008 | Pulse Measurement | For pulse S-parameter measurement |
| S3602B-480 | Four-port Spread Spectrum System Cable | Required connection cable for four-port vector network analyzer when directly building a spread spectrum system |
| S3602B-3648 | Multi-port Network Parameter Expansion Device | Extended to 16-port network parameter measurement (10MHz-26.5GHz) |
| S3602B-S05 | S-parameter Signal Integrity Analysis | Used to display the frequency domain characteristics and time domain TDR characteristics of the system. Built-in crosstalk evaluation modules such as NEXT, FEXT, PSXT, ILD, ICR and ICN. Built-in standards such as IEEE 802.3, PCIe, SAS and SATA help to quickly evaluate whether S parameters Meet the design requirements. Can automatically convert the software graphic curve into Word or PPT report. Support a variety of Dk/Df extraction methods. Support NRZ, PAM-4 eye diagram drawing function. |
| S3602B-S06 | Used to display the frequency domain characteristics and time domain TDR characteristics of the system. Built-in crosstalk evaluation modules such as NEXT, FEXT, PSXT, ILD, ICR and ICN. Built-in standards such as IEEE 802.3, PCIe, SAS and SATA help to quickly evaluate whether S parameters Meet the design requirements. Can automatically convert the software graphic curve into Word or PPT report. Support a variety of Dk/Df extraction methods. Support NRZ, PAM-4 eye diagram drawing function. | Special for Saluki VNA. Suitable for extension modules with power adjustable function such as 3643P S-parameter extension module |
| S3602B-S07 | AFR Automatic Fixture Removal Option | Used for automatic testing and removal of single-ended and balanced device measurement fixtures |
| S3602B-S10 | Time Domain Measurement | For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables. |
| S3602B-S11 | Advanced Time Domain Analysis | Used for TDR time domain impedance test, eye diagram analysis, etc.. S10 option is included in S11. |
| S3602B-S80 | Frequency Offset Measurement | For frequency offset measurement. millimeter-wave frequency extension main unit needs this option |
| S3602B-S82 | Mixer Scalar Measurement | For the scalar parameter measurement of mixers (Option 400, S80 is needed) |
| S3602B-S83 | Mixer Vector Measurement | For the vector parameter measurement of mixers (Option 400, S80 is needed) |
| S3602B-S84 | Embedded LO Frequency Converter Measurement | For the measurement of embedded LO frequency converters (Option 400, S82 or S83, S80 are needed) |
| S3602B-S86 | Gain Compression Two-Dimension Sweep Measurement | For the gain compression two-dimension sweep test of amplifier |
| S3602B-S88 | Phase Scan Option | Used for phase scan measurement (need option 3672B-400). |
| 31121 | 3.5mm Calibration Kit | For calibration of the analyzer |
| FB0HA0HB025.0 | 3.5mm Test Cable | For measurement of the analyzer, 3.5mm (male) |
| FB0HA0HC025.0 | 3.5mm Test Cable | For measurement of the analyzer, 3.5mm (female) |
| 20403 | E-Cal Kit | For measurement of the analyzer, 3.5mm (female) |
| 20405 | E-Cal Kit | For calibration of the analyzer (10MHz-26.5GHz, 2 ports) |
| 87232 | USB Power Probe | For 402, S82, S86 Options in the process of power calibration (50MHz-26.5GHz) |
| Top Rack | / | Easy to build the system and use on the cabinet |
| S3602B-EWT1 | Extend 1 year warranty | / |
S3602C Options
| Module No. | Item | Description |
| S3602C-201 | 2-Port Programmable Step Attenuator | Set two 60dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path |
| S3602C-400 | 4-Port Measurement | Two-source stimulus configuration, four-port VNA configuration |
| S3602C-401 | 4-Port Measurement | Set four 60dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed) |
| S3602C-402 | Active Inter-modulation Measurement | For inter-modulation signal measurement of amplifier (Option 400, S80 is needed) |
| S3602C-003 | Noise Figure Measurement | Frequency range: 10MHz to 43.5GHz; Measurement bandwidth: 800kHz to 24MHz; Noise figure + gain measurement range: 0 to +55dB; Noise source driving voltage: +28V±1V; Noise jitter: <0.15dB; |
| S3602C-008 | Pulse Measurement | For pulse S-parameter measurement |
| S3602C-480 | Four-port Spread Spectrum System Cable | Required connection cable for four-port vector network analyzer when directly building a spread spectrum system |
| S3602C-3648 | Multi-port Network Parameter Expansion Device | Extended to 16-port network parameter measurement (10MHz-43.5GHz) |
| S3602C-S05 | S-parameter Signal Integrity Analysis | Used to display the frequency domain characteristics and time domain TDR characteristics of the system. Built-in crosstalk evaluation modules such as NEXT, FEXT, PSXT, ILD, ICR and ICN. Built-in standards such as IEEE 802.3, PCIe, SAS and SATA help to quickly evaluate whether S parameters Meet the design requirements. Can automatically convert the software graphic curve into Word or PPT report. Support a variety of Dk/Df extraction methods. Support NRZ, PAM-4 eye diagram drawing function. |
| S3602C-S06 | MiliMeter Extension Port Power Control | Special for Saluki VNA. Suitable for extension modules with power adjustable function such as 3643P S-parameter extension module |
| S3602C-S07 | AFR Automatic Fixture Removal Option | Used for automatic testing and removal of single-ended and balanced device measurement fixtures |
| S3602C-S10 | Time Domain Measurement | For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables. |
| S3602C-S11 | Advanced Time Domain Analysis | Used for TDR time domain impedance test, eye diagram analysis, etc.. S10 option is included in S11. |
| S3602C-S80 | Frequency Offset Measurement | For frequency offset measurement. millimeter-wave frequency extension main unit needs this option |
| S3602C-S82 | Mixer Scalar Measurement | For the scalar parameter measurement of mixers (Option 400, S80 is needed) |
| S3602C-S83 | Mixer Vector Measurement | For the vector parameter measurement of mixers (Option 400, S80 is needed) |
| S3602C-S84 | Embedded LO Frequency Converter Measurement | For the measurement of embedded LO frequency converters (Option 400, S82 or S83, S80 are needed) |
| S3602C-S86 | Gain Compression Two-Dimension Sweep Measurement | For the gain compression two-dimension sweep test of amplifier |
| S3602C-S88 | Phase Scan Option | Used for phase scan measurement (need option S3602C-400). |
| 31123 | 2.4mm Calibration Kit | For calibration of the analyzer |
| FE0BN0BM025.0 | 2.4mm Test Cable | For measurement of the analyzer, 2.4mm (male) |
| FE0BN0BL025.0 | 2.4mm Test Cable | For measurement of the analyzer, 2.4mm (female) |
| 20404 | E-Cal Kit | For calibration of the analyzer (10MHz-50GHz, 2 ports) |
| 87233 | USB Power Probe | For 402, S82, S86 options in the process of power calibration (50MHz-40GHz) |
| Top Rack | / | Easy to build the system and use on the cabinet |
| S3602C-EWT1 | Extend 1 year warranty | / |
S3602D Options
| Module No. | Item | Description |
| S3602D-201 | 2-Port Programmable Step Attenuator | Set two 60dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path |
| S3602D-400 | 4-Port Measurement | Two-source stimulus configuration, four-port VNA configuration |
| S3602D-401 | 4-Port Measurement | Set four 60dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed) |
| S3602D-402 | Active Inter-modulation Measurement | For inter-modulation signal measurement of amplifier (Option 400 is needed) |
| S3602D-003 | Noise Figure Measurement | Frequency range: 10MHz to 50GHz; Measurement bandwidth: 800kHz to 24MHz; Noise figure + gain measurement range: 0 to +55dB; Noise source driving voltage: +28V±1V; Noise jitter: <0.15dB; |
| S3602D-008 | Pulse Measurement | For pulse S-parameter measurement |
| S3602D-480 | Four-port Spread Spectrum System Cable | Required connection cable for four-port vector network analyzer when directly building a spread spectrum system |
| S3602D-3648 | Multi-port Network Parameter Expansion Device | Extended to 16-port network parameter measurement (10MHz-50GHz). This device is 12 ports. |
| S3602D-S05 | S-parameter Signal Integrity Analysis | Used to display the frequency domain characteristics and time domain TDR characteristics of the system. Built-in crosstalk evaluation modules such as NEXT, FEXT, PSXT, ILD, ICR and ICN. Built-in standards such as IEEE 802.3, PCIe, SAS and SATA help to quickly evaluate whether S parameters Meet the design requirements. Can automatically convert the software graphic curve into Word or PPT report. Support a variety of Dk/Df extraction methods. Support NRZ, PAM-4 eye diagram drawing function. |
| S3602D-S06 | MiliMeter Extension Port Power Control | Special for Saluki VNA. Suitable for extension modules with power adjustable function such as 3643P S-parameter extension module |
| S3602D-S07 | AFR Automatic Fixture Removal Option | Used for automatic testing and removal of single-ended and balanced device measurement fixtures |
| S3602D-S10 | Time Domain Measurement | For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables. |
| S3602D-S11 | Advanced Time Domain Analysis | Used for TDR time domain impedance test, eye diagram analysis, etc.. S10 option is included in S11. |
| S3602D-S80 | Frequency Offset Measurement | For frequency offset measurement. millimeter-wave frequency extension main unit needs this option |
| S3602D-S82 | Mixer Scalar Measurement | For the scalar parameter measurement of mixers (Option 400, S80 is needed) |
| S3602D-S83 | Mixer Vector Measurement | For the vector parameter measurement of mixers (Option 400, S80 is needed) |
| S3602D-S84 | Embedded LO Frequency Converter Measurement | For the measurement of embedded LO frequency converters (Option 400, S82 or S83, S80 are needed) |
| S3602D-S86 | Gain Compression Two-Dimension Sweep Measurement | For the gain compression two-dimension sweep test of amplifier |
| S3602D-S88 | Phase Scan Option | Used for phase scan measurement (need option S3602D-400). |
| 31123A | 2.4mm Calibration Kit | For calibration of the analyzer |
| FE0BN0BM025.0 | 2.4mm Test Cable | For measurement of the analyzer, 2.4mm (male) |
| FE0BN0BL025.0 | 2.4mm Test Cable | For measurement of the analyzer, 2.4mm (female) |
| 20404 | E-Cal Kit | For calibration of the analyzer (10MHz-50GHz, 2 ports) |
| Top Rack | / | Easy to build the system and use on the cabinet |
| S3602D-EWT1 | Extend 1 year warranty | / |
S3602E Options
| Module No. | Item | Description |
| S3602E-201 | 2-Port Programmable Step Attenuator | Set two 50dB programmable step attenuators for the source path, and two 50dB programmable step attenuators for the receiver path |
| S3602E-400 | 4-Port Measurement | Two-source stimulus configuration, four-port VNA configuration |
| S3602E-401 | 4-Port Measurement | Set four 50dB programmable step attenuators for the source path, and four 50dB programmable step attenuators for the receiver path (Option 400 is needed) |
| S3602E-402 | Active Inter-modulation Measurement | For inter-modulation signal measurement of amplifier (Option 400, S80 is needed) |
| S3602E-008 | Pulse Measurement | For pulse S-parameter measurement |
| 3672E-480 | Four-port Spread Spectrum System Cable | Required connection cable for four-port vector network analyzer when directly building a spread spectrum system |
| 3672E-S05 | S-parameter Signal Integrity Analysis | Used to display the frequency domain characteristics and time domain TDR characteristics of the system. Built-in crosstalk evaluation modules such as NEXT, FEXT, PSXT, ILD, ICR and ICN. Built-in standards such as IEEE 802.3, PCIe, SAS and SATA help to quickly evaluate whether S parameters Meet the design requirements. Can automatically convert the software graphic curve into Word or PPT report. Support a variety of Dk/Df extraction methods. Support NRZ, PAM-4 eye diagram drawing function. |
| 3672E-S06 | MiliMeter Extension Port Power Control | Special for Saluki VNA. Suitable for extension modules with power adjustable function such as 3643P S-parameter extension module |
| 3672E-S07 | AFR Automatic Fixture Removal Option | Used for automatic testing and removal of single-ended and balanced device measurement fixtures |
| 3672E-S10 | Time Domain Measurement | For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables. |
| 3672E-S11 | Advanced Time Domain Analysis | Used for TDR time domain impedance test, eye diagram analysis, etc.. S10 option is included in S11. |
| 3672E-S80 | Frequency Offset Measurement | For frequency offset measurement. millimeter-wave frequency extension main unit needs this option |
| 3672E-S82 | Mixer Scalar Measurement | For the scalar parameter measurement of mixers (Option 400, S80 is needed) |
| 3672E-S83 | Mixer Vector Measurement | For the vector parameter measurement of mixers (Option 400, S80 is needed) |
| 3672E-S84 | Embedded LO Frequency Converter Measurement | For the measurement of embedded LO frequency converters (Option 400, S82 or S83, S80 are needed) |
| 3672E-S86 | Gain Compression Two-Dimension Sweep Measurement | For the gain compression two-dimension sweep test of amplifier |
| 3672E-S88 | Phase Scan Option | Used for phase scan measurement (need option S3602E-400). |
| 3672E-3648 | Link Expansion Device | Frequency range: 10MHz-67GHz; Number of ports: 12; Communication interface: USB |
| 31128 | 1.85mm Calibration Kit | For calibration of the analyzer |
| FF0CN0CM025.0 | 1.85mm Test Cable | For measurement of the analyzer, 1.85mm (male) |
| FF0CN0CL025.0 | 1.85mm Test Cable | For measurement of the analyzer, 1.85mm (female) |
| Top Rack | / | Easy to build the system and use on the cabinet |
| S3602E-061 | Extension Workbench | / |
| S3602E-EWT1 | Extend 1 year warranty | For S3602E main machine |
| S3602E-3648-EWT1 | Extend 1 year warranty | For S3602E-3648 link expansion device |
