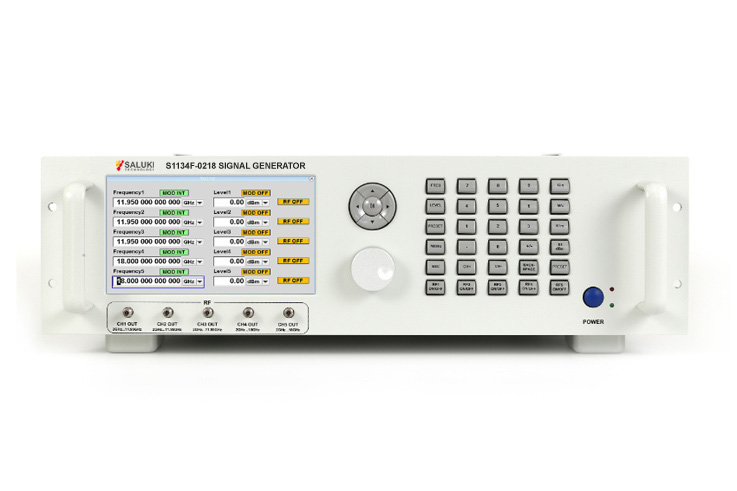

S1134F-0218 Multi-Channel Signal Generator

Saluki S1134F-0218 multi-channel signal generator is a phase-coherent and low phase noise signal generator with 5 channels which is especially for Quantum Computing.

The frequency range of 3 channels is 2GHz to 11.95GHz, the frequency range of 2 channels is 2GHz to 18GHz. Each channel can be independently fully adjusted. S1134F-0218 multi-channel phase-coherent signal generator has excellent performance in the field of quantum computing which requires high signal quality and stable coherence of each channel.

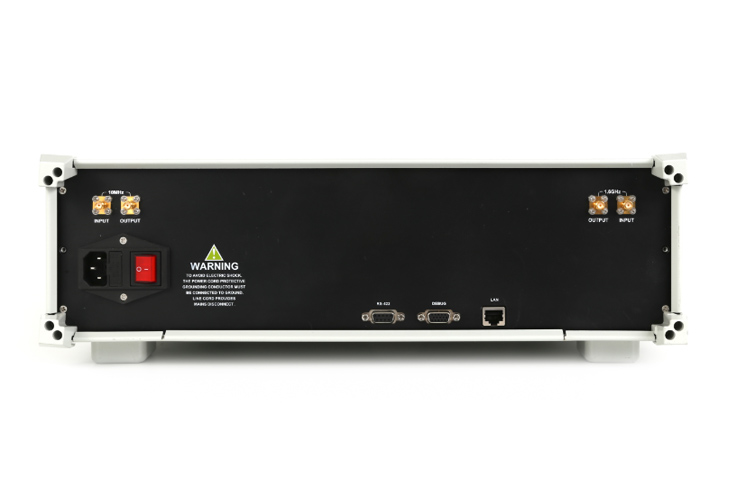

The high stability OCXO reference provides excellent frequency accuracy and frequency stability. In addition, the S1134F-0218 has high-frequency reference input and output ports, which can ensure that the phases of multiple output channels and multiple instruments are strictly coherent and stable for a long time.

The instrument comes in a standard 3U rack-mount form and offers LAN control interface, which allows easy and fast communication. Remote control of the instrument can be quickly attained from any host system. Application programming interface (API) or programming examples make the control implementation very easy.

Applications: R&D Low-noise Microwave Generator / Local Oscillator Replacement / Component Test / Receiver Sensitivity Test

Key Features

Frequency range: 2GHz to 18GHz

5 RF output channels which can operate individually

Output power range: -20dBm to +22dBm

Maximum output power: ≥ +15dBm

Phase noise: <-113dBc/Hz (10GHz, 10kHz offset)

Phase coherent among every channel

Channel to channel relative phase drift (10GHz, 24h) ≤±1°

Narrow pulse modulation, minimum pulse width 50ns

Fast frequency switching time <10us

Frequency Range

3 channels: 2GHz-11.95GHz, 2 channels: 2GHz-18GHz

Output Channel

5 channel output  * For more output channels, contact us for customization *

Frequency Resolution

0.01Hz

Max. Output Power

•   +22dBm @ <8GHz

•   +20dBm @ 8-12GHz

•   +18dBm @ >12GHz

Min. Output Power

-20dBm

Power Resolution

0.01dB

Power Level Uncertainty

•   ≤±1.3dB @>-20dBm

•   ≤±1.5dB @≤-20dBm

Non-harmonic Spurious

•   ≤-70dBc @ ≤12GHz

•   ≤-65dBc @ >12GHz

Harmonic Spurious

≤-50dBc @10dBm output

Channel to Channel Isolation

≥80dB

Phase Noise (10GHz)

•   ≤-75dBc/Hz @100Hz

•   ≤-108dBc/Hz @1KHz

•   ≤-113dBc/Hz @10KHz

•   ≤-113dBc/Hz @100KHz

•   ≤-120dBc/Hz @1MHz

•   ≤-138dBc/Hz @10MHz

Internal Reference Frequency

10MHz

LAN Control

RJ-45 (TCP/IP over Ethernet )

Dimension

483 (W) × 134 (H) × 559 (D) mm  (3U)

Weight

≤20kg

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
S1134F-0218 Multi-Channel Signal Generator 5-channel output, frequency range: 2GHz-11.95GHz & 2GHz-18GHz
