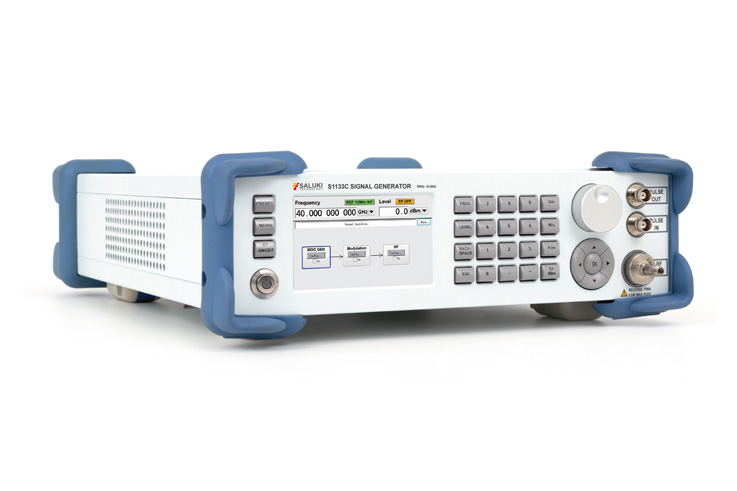

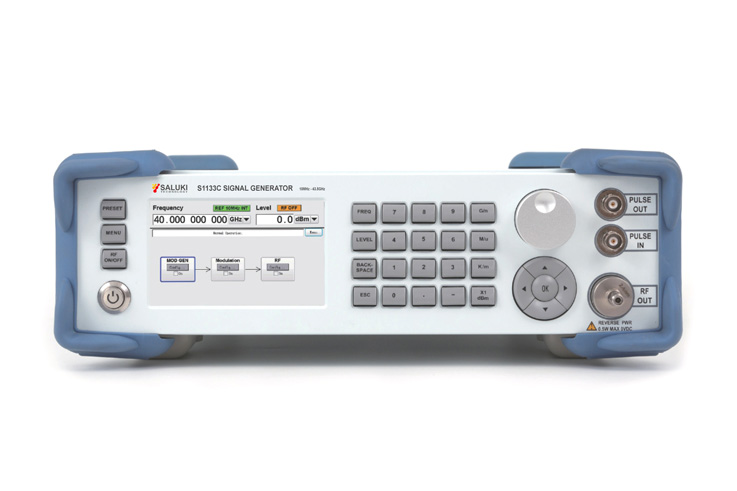

S1133 Series Microwave Analog Signal Generator

Overview Specifications Ordering Resources

S1133 series microwave analog signal generator is an ultra-low phase noise, high power output signal generator covering a continuous frequency range from 10MHz to 12GHz, 24GHz, 43.5GHz and 67GHz, with frequency resolution as low as 0.01 Hz. The S1133 series signal generator supports narrow pulse modulation. It is a cost-effective product that focuses on the application where excellent spectral purity, wide output power range and portability are necessary.

Applications: Local Oscillator Replacement / Component Test / Receiver Sensitivity Test/R&D low noise microwave generator

Key Features

Frequency range: 10MHz to 12GHz/24GHz/43.5GHz/67GHz

Maximum output power: ≥+20dBm

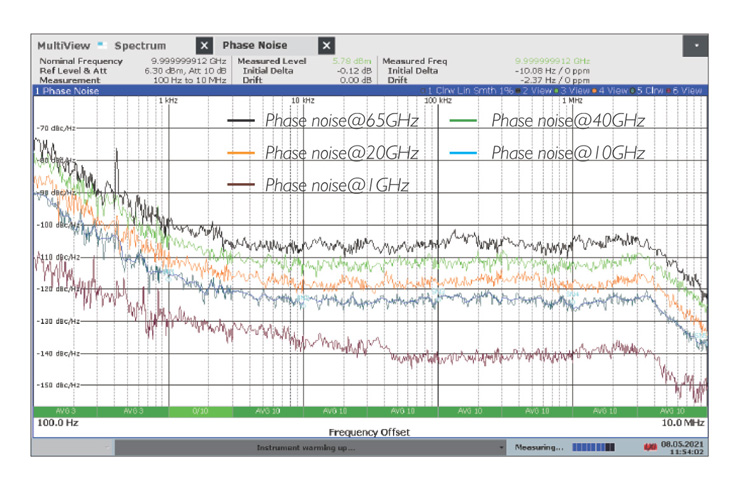

Phase noise: <-116dBc/Hz (10GHz, 10kHz offset)

Fast frequency switching time <10us

Narrow pulse modulation, minimum pulse width 50ns

Rise/fall time 10ns

Compact, light weight

Balance budget & performance to applications

Frequency Range	S1133A: 10MHz to 12GHz, S1133B: 10MHz to 24GHz, S1133C: 10MHz to 43.5GHz, S1133D: 10MHz to 67GHz
CW Switching Speed	≤ 20ms
Frequency Resolution	0.01Hz
Phase Noise	<-116 dBc/Hz @10 kHz offset (typ., 10 GHz carrier)
Harmonics	• 10MHz – 200MHz: <-40dBc • 200MHz – 20GHz: <-50dBc • 20GHz – 40GHz: <-55dBc (Output Power:10dBm)
Non-harmonics	• 10MHz – 2GHz: <-75dBc • 2GHz – 12GHz: <-70dBc • 12GHz – 24GHz: <-65dBc • 24GHz – 67GHz: <-60dBc (Output Power:0dBm)

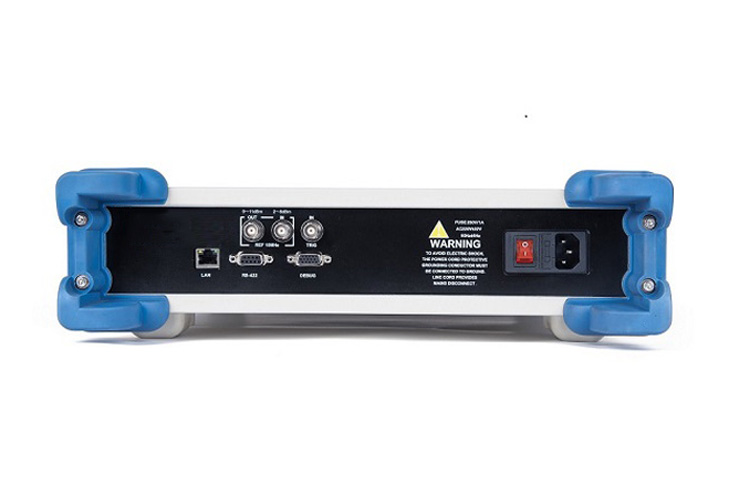

Reference	• Internal reference frequency stability: ±2e-8 0°C to +50°C • External reference input power: +5±3dBm • Internal reference output power: +10±1dBm
Output Power	Maximum output power: • 10MHz to 20GHz: ≥+15dBm • 20GHz to 40GHz: ≥+13dBm • 40GHz to 50GHz: ≥+10dBm • 50GHz to 67GHz: ≥+7dBm Minimum output power: • -110dBm/-90dBm (S1133D)
SWR	• ≤2GHz: <1.40:1 • 2GHz to 24GHz: <1.50:1 • 24GHz to 40GHz: <1.60:1 • 40GHz to 67GHz: <1.80:1
Dimension	320 (W) × 88 (H) × 400 (D) mm (without protection cushion)
Weight	≤ 10kg
	(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Ordering Information

Module No.	Item	Description
S1133A	Analog Signal Generator	10 MHz to 12 GHz
S1133B	Analog Signal Generator	10 MHz to 24 GHz
S1133C	Analog Signal Generator	10 MHz to 43.5 GHz
S1133D	Analog Signal Generator	10 MHz to 67 GHz

Options

Module No.	Item	Description
S1133-CL	1.6GHz Clock Input& Output	/
S1133-LF	LF Output	100kHz to 10MHz low frequency output

Document

S1133 Series Microwave Signal Generator Datasheet
